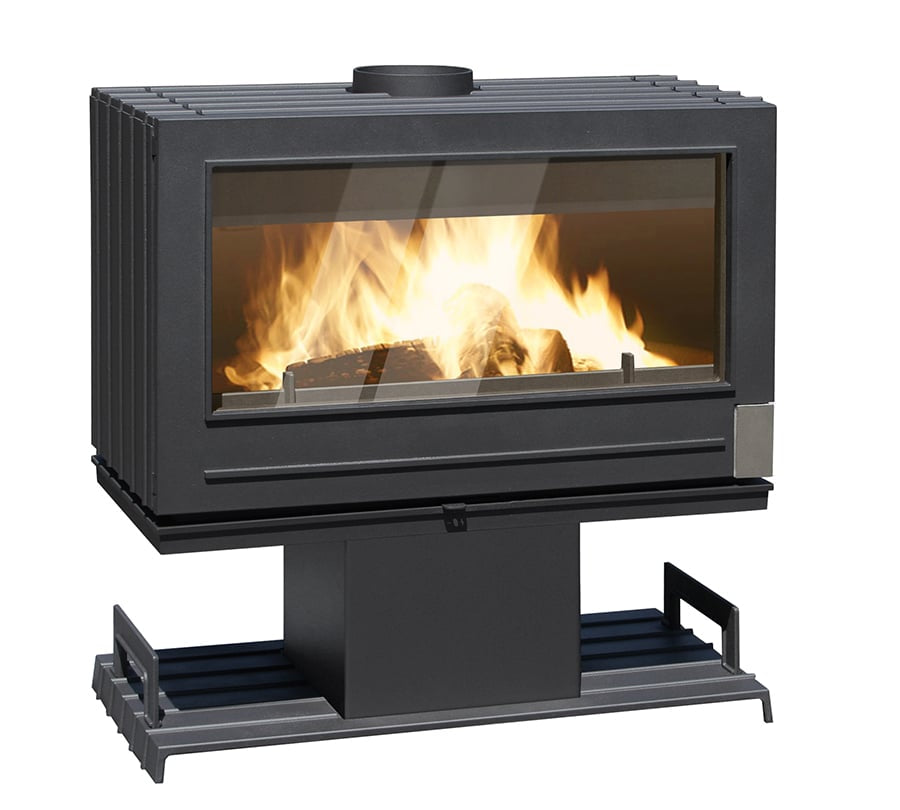

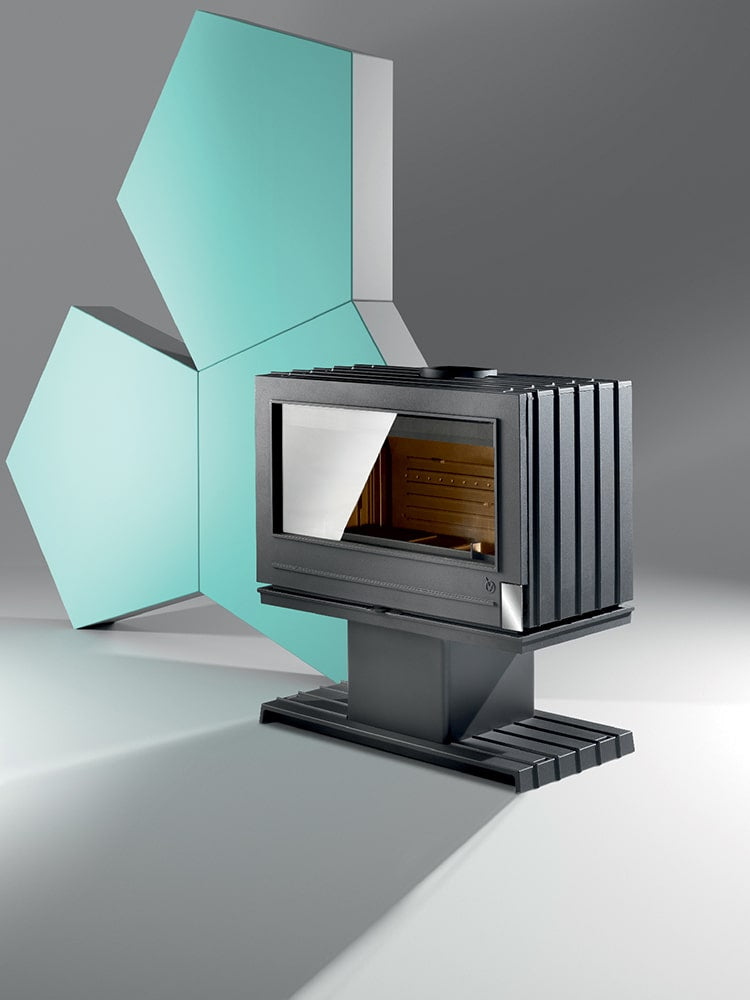

Norman Cast Iron Stove
For log products, the free 3-year warranty extension is conditional on the product being registered online.
The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.
Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.
The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.
The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.
Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.
Downloads:
Product specification sheet
Features:
- OPTIMAL POWER: 12 kW
- HEATING VOLUME (M³): 160 - 360 m³
- HEATING SURFACE (M²): 65 - 145 m²
- USEFUL EFFICIENCY (%): 76
- SEASONAL EFFICIENCY - ETAS: 66
- CO (%): 0.09 %
- CO (MG/NM³): 1125
- DUST (MG/NM³): 30 mg/Nm³
- GOC (MG/NM³): 70
- NOX (MG/NM³): 160
- ENERGY EFFICIENCY INDEX (EEI): 99
- FLUE GAS MASS FLOW (G/S): 10,7
- FLUE GAS TEMPERATURE (°C): 348
- COMBUSTIBLE: Logs 25, Logs 33, Logs 50 cm
- MAXIMUM LOG LENGTH (HORIZONTALLY): 80 cm
- LOADING: Façade
- FLUE EXIT: Top or Back
- FLUE DIAMETER (MM): 180 mm
- DIMENSIONS - H * W * D (MM): 956 x 910 x 468
- WEIGHT (KG): 220 kg
- DESIGN: Contemporain
- MATERIAL: Fonte
- FINISH: Anthracite
- CERTIFICATION: EN 13240
- WARRANTY: 2 years + extension 3 years*
