Malm Fire Drum 2 Gas B Vent Fireplace Mid Century Modern LP or NG MCM Gas Copper Brass and Powder Coated Options
Fire Drum 2 Freestanding Fireplace is available in gas fuel (B-Vent) models.

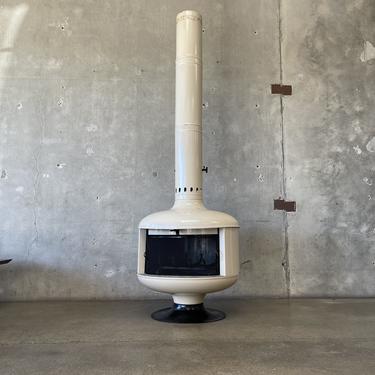

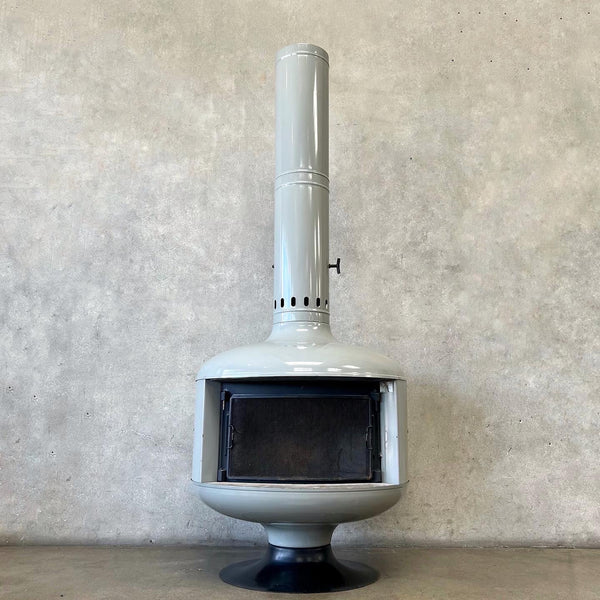

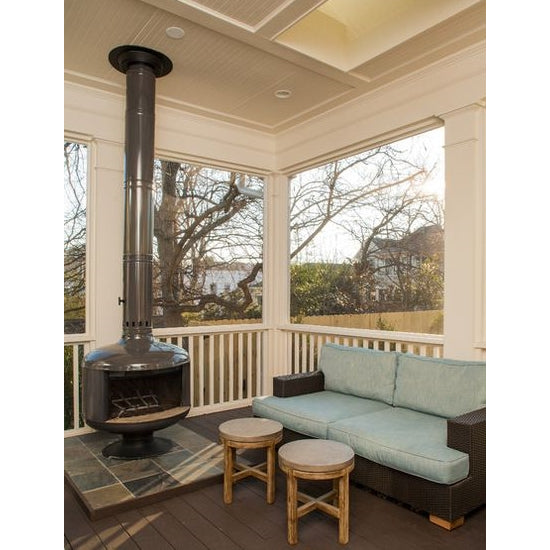

Fire Drum 2
Architect-designed, this fireplace is built for lasting beauty and efficiency. Available in porcelain color, matte black, brass, nickel, or copper plated.
Included with each fireplace are a fire screen, 2 sections of pipe 9"x 24", and 1 - 9" x 18" to 8" slip section in matching color. This model requires a back wall clearance of 8 inches and a corner clearance of 8 inches from combustible materials.

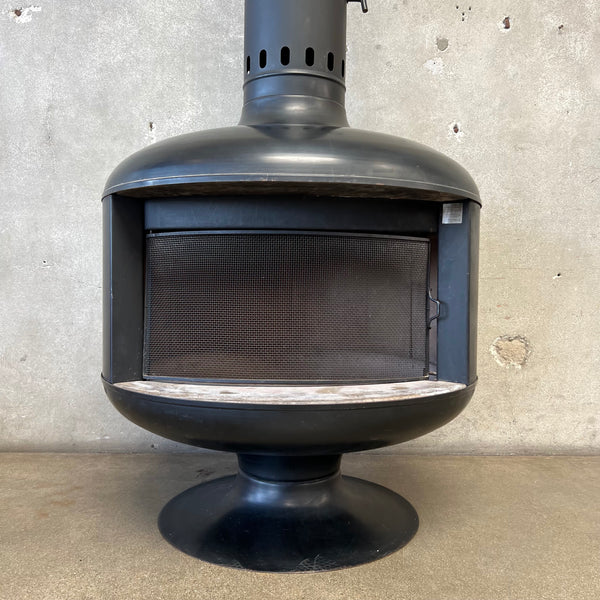

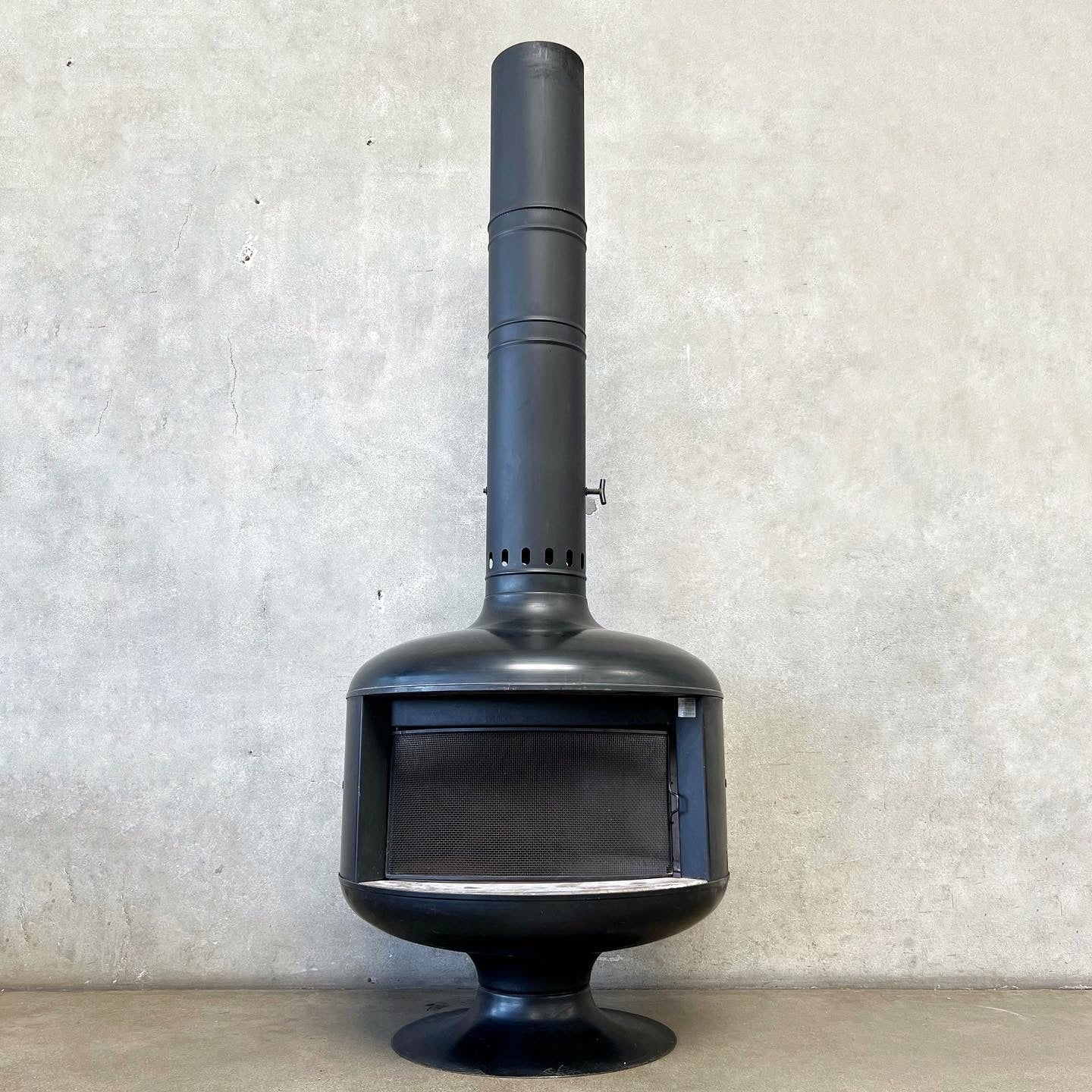

- Matte Black

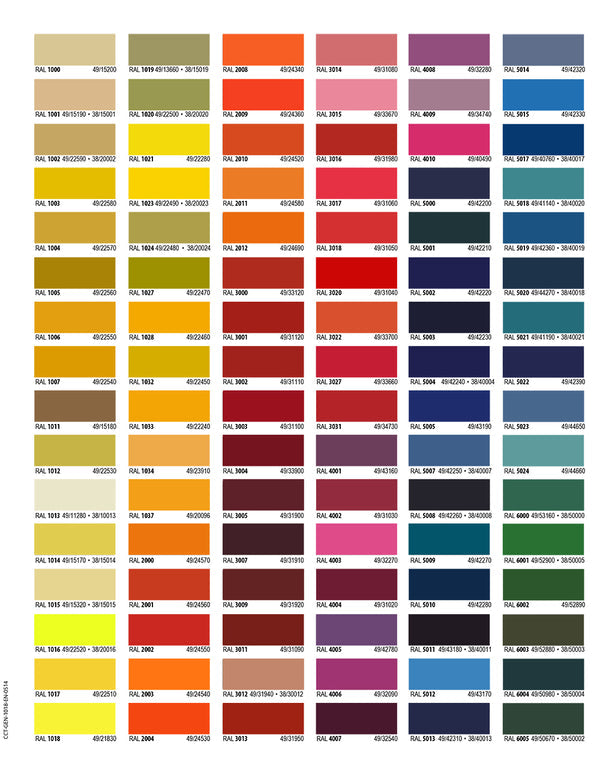

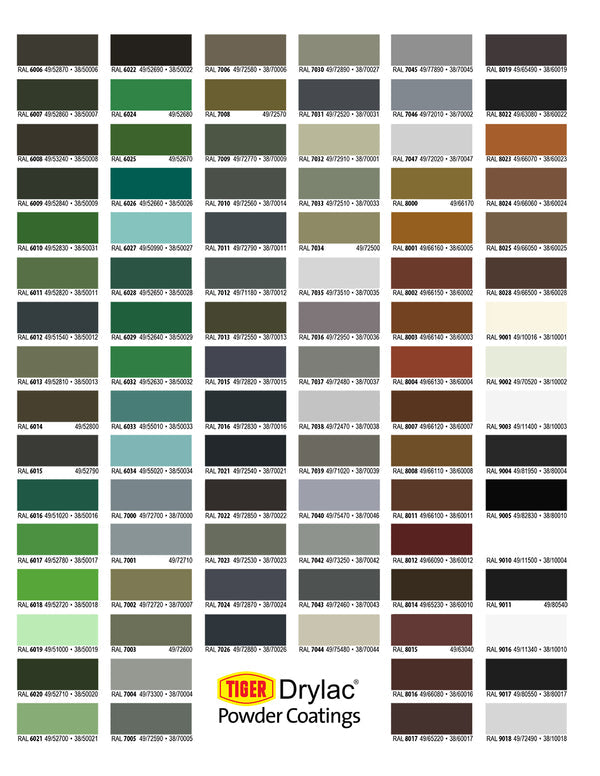

- Powder coat Colors- Tiger Colors Choose your RAL # from the photos or contact Tiger colors directly for a brochure- TIGER DRYLAC COLOR PDF

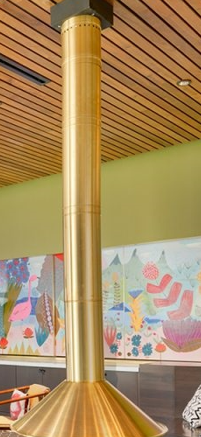

- Brass, Nickel, or Copper plated (Designer Models) - Contact us for the special order information and prices.

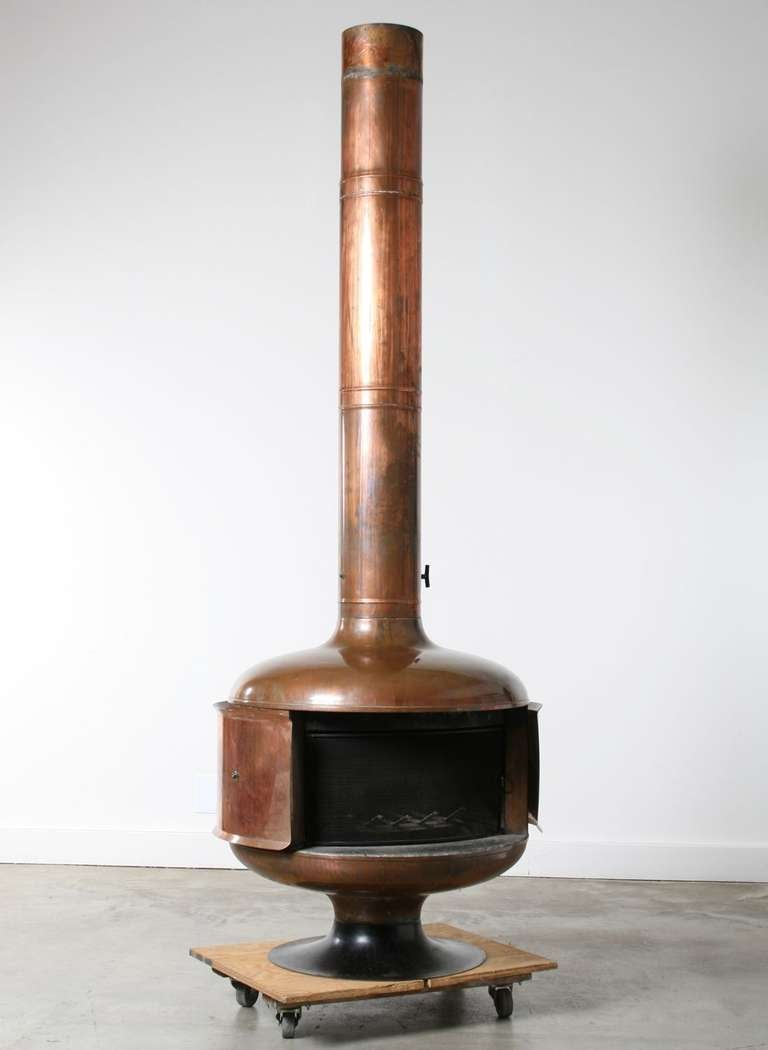

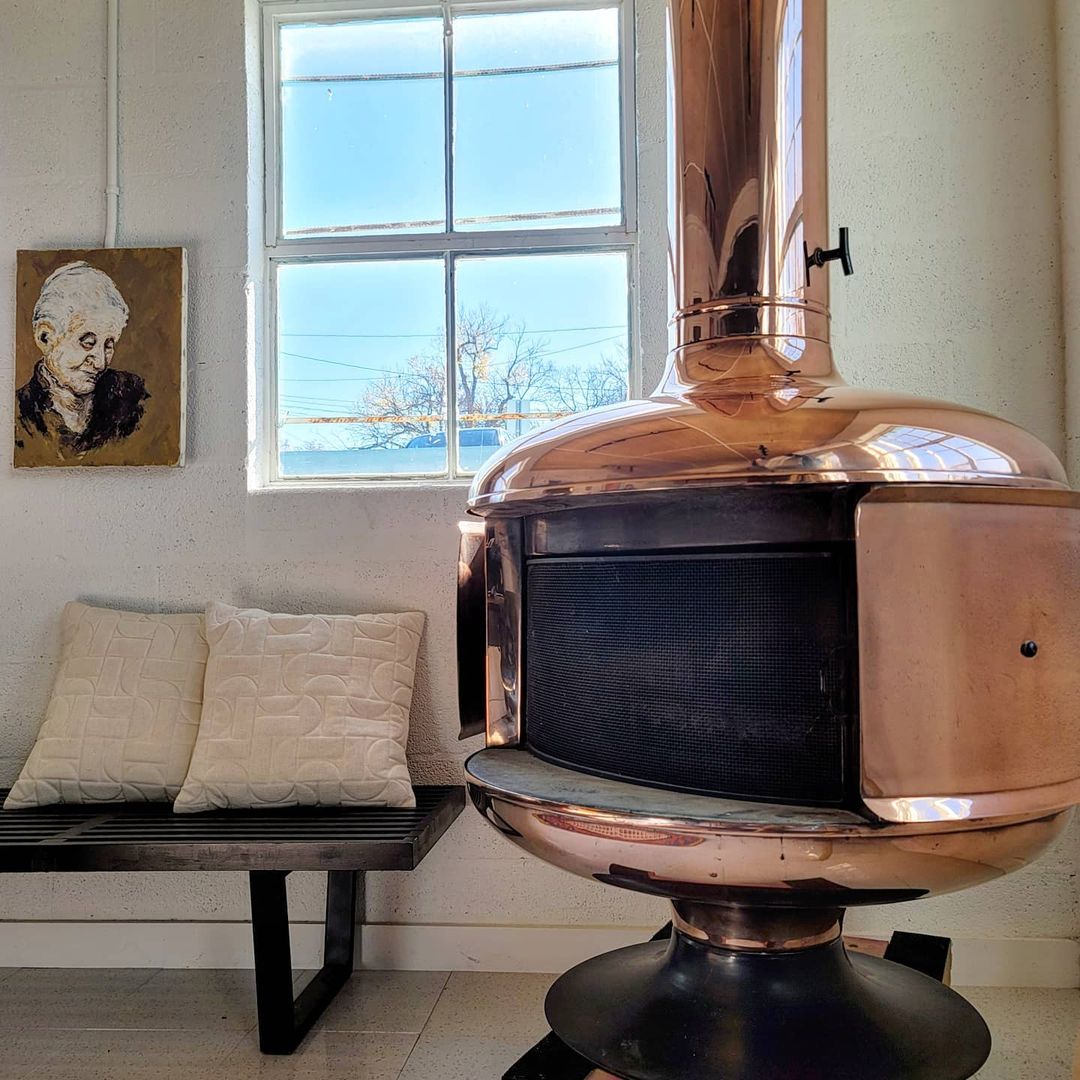

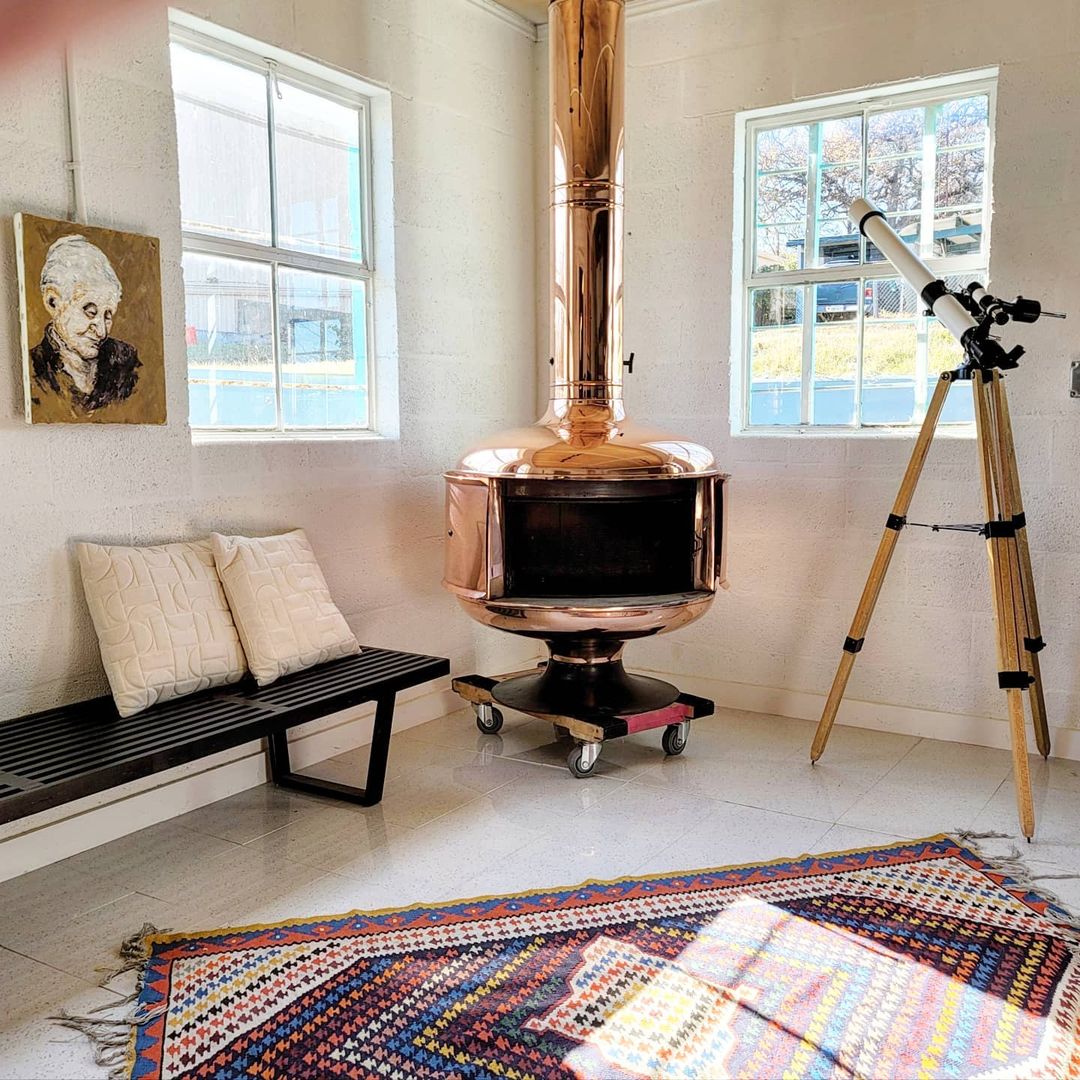

- YES WE will make you a copper Malm Firedrum 2 with pipe and a box included
- 9” connector to 8” B-Vent support box included
Features
- A 20-inch grate is recommended.
- Close Wall Clearance

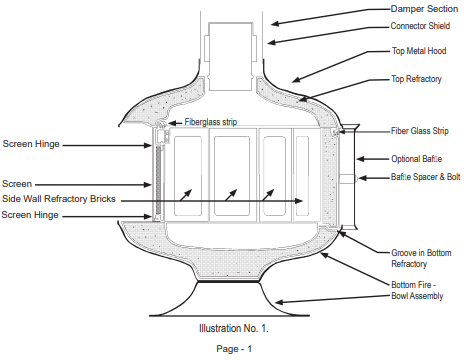

- Ceramic fire bowl, back, and top
- Heavy gauge steel construction
- Easy to assemble

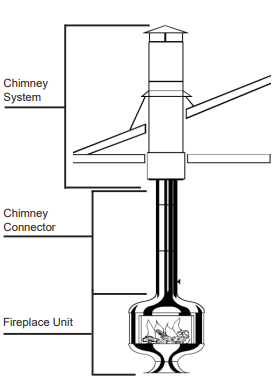

- Use 8” Class ‘A’ Chimney - 9” to 8” Telescopic Slip Connector Included.
- Metal Hood Provides Radiant Heat
- BTU Input: Natural Gas 49,000 / Propane 45,000
- Safety Pilot
- Piezo Ignition System
- Choice of Natural or LP Gas
- Thermally Actuated Damper
- Close 3" Wall Clearance
- Installed Using 8" B-Vent Gas Venting

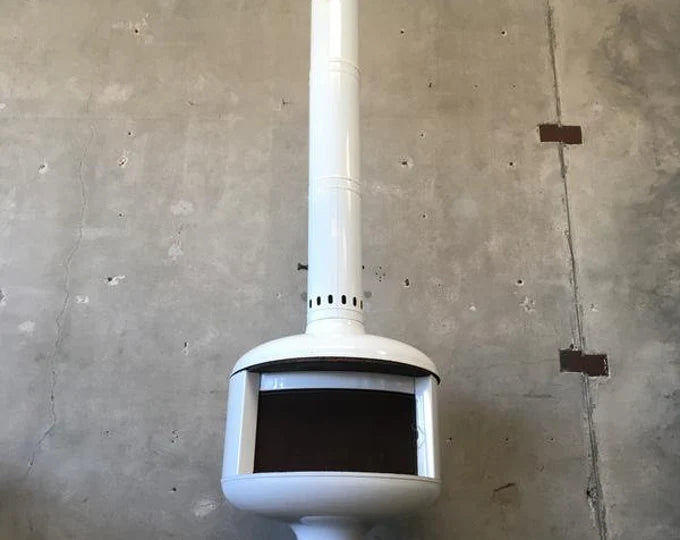

- Available in all Malm Porcelain Colors
- Ship Weight 200 lbs
-
Included Materials For Installation:
- Damper Pipe: 9 x 24 Inch
- Pipe Section: 9 x 24 Inch
- Slip Section: 8 x 18 Inch
Fire Drum 2 GF2 Gas B Vent Installation Manual PDF

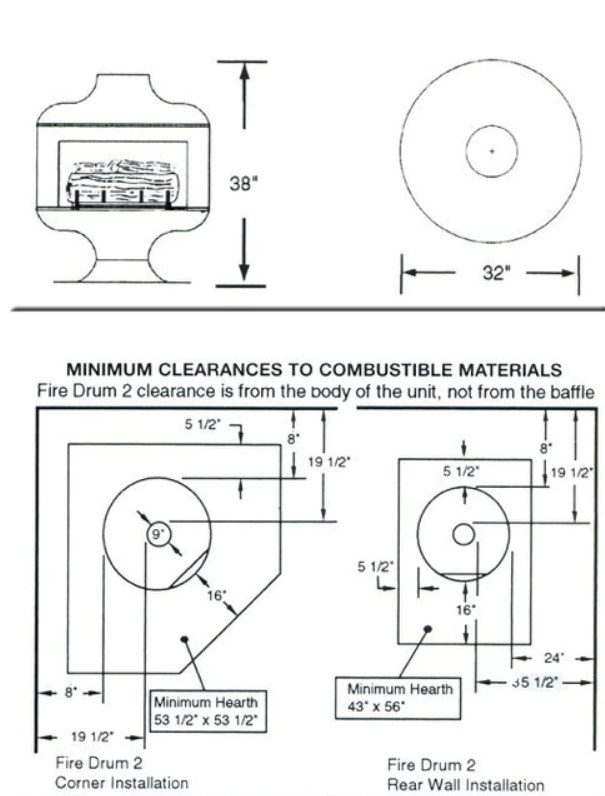

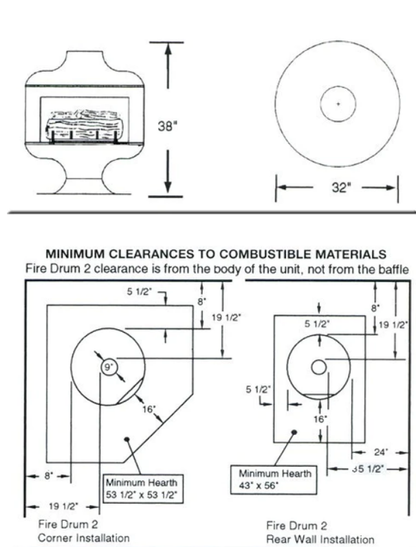

Dimensions of the Fire Drum 2 and combustible clearances
Specifications
Model Name |
Fire Drum 2 |
Fuel Type | comes in Natural Gas, available Propane by request only |
Connector size | 9" |
Width |
32" |
Overall Height | 97" |
Weight | 500 lbs. |
Clearance to Combustible Wall |
8" |
Tested to | UL737 & ULC-S627-00 |
B vent trouble Shooting Blog Post
About Malm Fireplaces
Malm began making fireplaces in 1960. Malm fireplaces are designed and manufactured in California's Sonoma County near the famed wine country. Modern or traditional designs are available, designed with solid craftsmanship and quality materials.
Our freestanding fireplaces are perfect for today's busy lifestyles. Traditional masonry brick fireplaces take hours to heat the mass of bricks and waste much of the heat. Malm fireplaces heat up rapidly and radiate heat efficiently in all directions. Unlike traditional fireplaces, our fireplaces allow you a clear view of your fire from any angle and are available in a range of designer colors.
Malm's selection of architect-designed fireplaces is available in a variety of porcelain colors, brass, stainless, nickel, copper-plated, or matte black finish.
Malm also designs and creates custom fireplaces. Designs include larger size models of the standard units to large units constructed with exotic metal finishes and glass.
Return policy for MALM Fireplaces - No Returns on MALM High Sierra made to order fireplaces. questions please call or email Servicesmokeymtn@gmail.com Brad at Smokey Mountain 541.678.3574 Once the order has been placed we start the process of manufacturing, it takes 6 months. if you need to cancel before it has been made, we can discuss the possibility of a refund with a 5% fee, only if we confirm the item has not started in manufacturing.
Warranty is 5 year by Malm
Malm Warranty does not cover if the fireplace is used outdoors or in outdoor exposure
