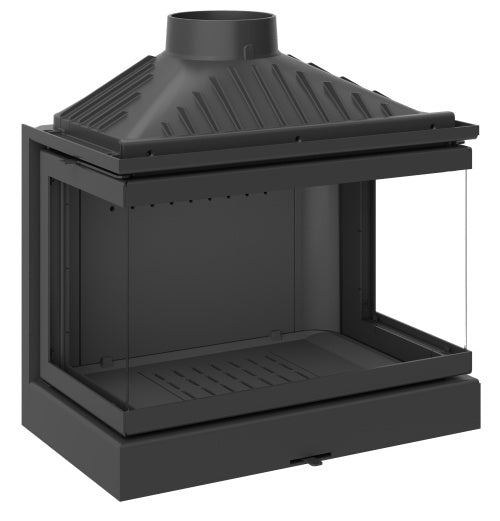

Fireplace insert KFD ECO MAX 7 3F basic
Is there a cost for shipping?
As a customer of Smokey Mountain we feel that you should pay NO Cost for shipping for any items to the lower 48 states as long as your order is over $350.
Is there any sales tax added to my order?
No Sales tax will be charged to your order unless it goes to California.
Can you ship to Alaska or Hawaii?
Yes we will gladly help get your large freight item (Fireplace, Pizza Oven MCM ect) to AK or HI just ask that you pay the extra cost to ship from the lower 48 to AK or HI. Feel Free to call or email brad for assistance. We are happy to help on this, and have done it a lot.
Product Description
HEATING & TECHNICAL PARAMETERS | |
---|---|
energy efficiency class | A-B-C-D-E-F-G |
direct heat output (nominal power) | [kW] 11,6 |
heating power range | [kW] 7 - 16 |
energy efficiency index | [EEI] 106 |
energy efficiency at nominal heat output | [%] 79,3 |
seasonal space heating energy efficiency | [%] 69,3 |
CO emission at 13% O2 | [%] 0,098 |
[mg/Nm3] 1219 | |
dust emission at 13% O2 | [mg/Nm3] 20 |
OGC at 13% O2 | [mg/Nm3] 91 |
NOX emission at 13% O2 | [mg/Nm3] 51 |
flue gas mass flow | [g/s] 10,4 |
average smoke temperature at smoke outlet | [°C] 257 |
minimum chimney draft | [Pa] 12 |
DIMENSIONS & WEIGHT | |
total dimensions, height x width x depth | [mm] 711 x 691 x 462 |
facade dimensions, width x height | [mm] 691 x 528 |
front glass dimensions, width x height | [mm] 650 x 343 |
side glass dimensions, width x height | [mm] 309 x 343 |
maximum log length | [cm] 50 |
smoke flue diameter | [mm] 180 |
air inlet diameter | [mm] 100* |
weight | [kg] 115 |
CERTIFICATES AND NORMS | |
EN 13229 | V / - |
3815 B4 20 | V / - |
declaration of the Ecodesign requirements | V / - |
BImSchV level 2 | V / - |
15a BVG | V / - |
ADDITIONAL INFORMATION | |
for continuous burning | V / - |
preferred type of fuel | wood logs with moisture content ≤ 20 % |
minimum supply air grating cross-section | cm2 700 |
minimum outgoing air grating cross-section | cm2 980 |
ashpan | V / - |
appliance suitable for low energy and passive | V / - |
door opening | side |
possibility of burning with open door | V / - |
warranty | years 5 |
Fireplace insert KFD ECO MAX 7 3F basic
$4,299.00
