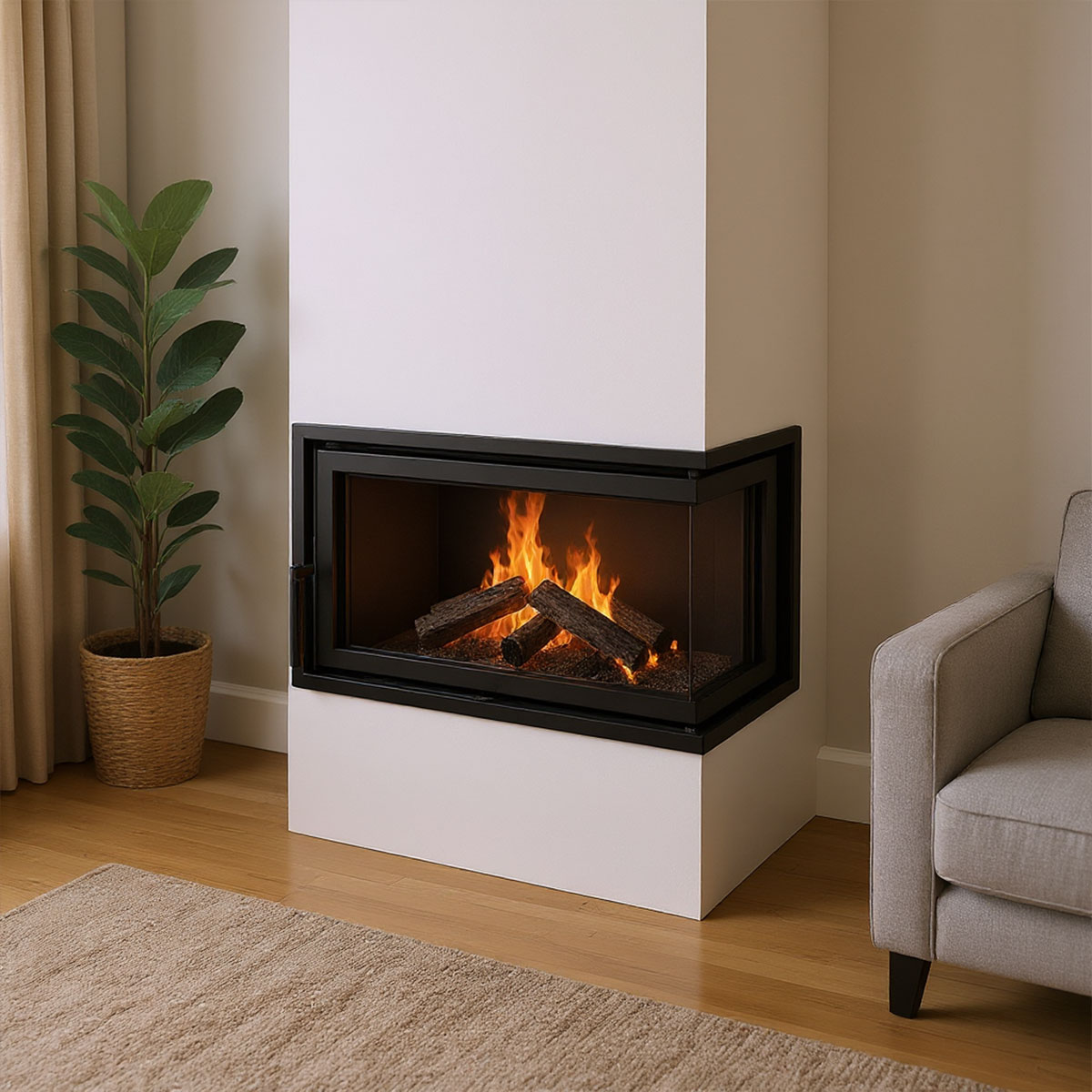

  • White Painted Wall-Inbuilt Dorako Eco Max 7 Right Standard Wood Fireplace with Flames and Logs in a Modern living room setting with Flower vase on the side
1 10

Dorako ECO MAX 7 L/R Standard - Two Sided Corner Wall Insert Wood Fireplace

Dorako ECO MAX 7 L/R Standard - Two Sided Corner Wall Insert Wood Fireplace

$3,999.00 USD
$3,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Send us a message

Dorako ECO MAX 7 L/R Standard - Two Sided Corner Wall Insert Wood Fireplace

ECO MAX 7 L/R Standard are made to order - Double Combustion System with A+ Energy Efficiency Class

The KFD 2 sided corner Wood Fireplace is not only highly efficient it is all a modern and sleek design that can bring your room together while allowing you to see a wide angle fire

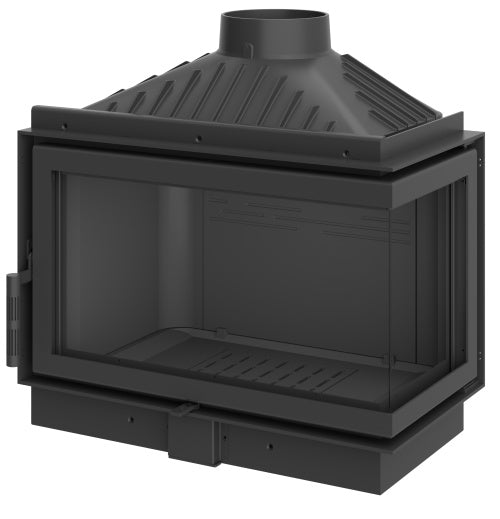

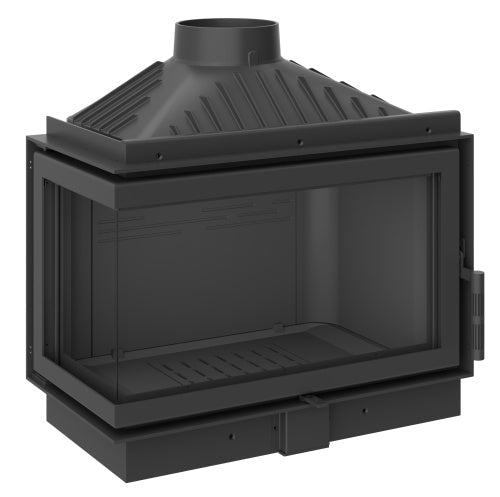

All-cast iron fireplace inserts with large corner glazing on the left (left side glazing) or on the right (right side glazing).

TECHNICAL DATA:

- Energy efficiency class: A+

- Direct thermal power (nominal power): 11.5 kW

- Heating power range: 7.0 - 16.0 kW

- Energy efficiency index: 110.6 EEI

- Energy efficiency at nominal thermal power: 82.5%

- Seasonal energy efficiency for space heating: 73.5%

- CO emissions at 13% O2: 0.09%, 1162 mg/Nm3

- Dust emission at 13% O2: 19 mg/Nm3

- OGC at 13% O2: 51 mg/Nm3

- NOX emissions at 13% O2: 145 mg/Nm3

- Mass flow rate of combustion gases: 9.75 g/s

- Average temperature of the fumes at the flue outlet: 235°C

- Minimum chimney draft: 12 Pa

DIMENSION AND WEIGHT:

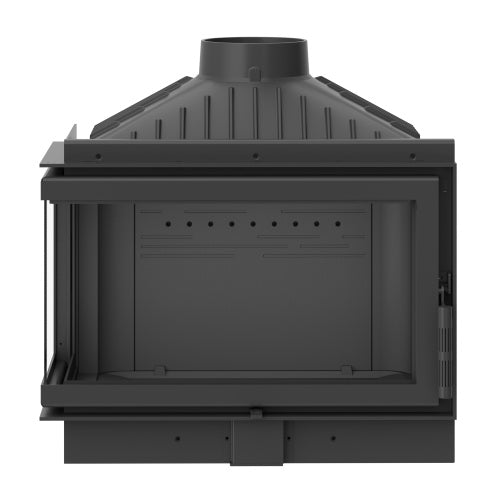

- Front dimensions (H x W x D): 720 x 443 mm

- Overall dimension (H x W x D): 720 x 720 x 460 mm

- Side panel dimensions (H x W x D): 384 x 443 mm

- Front glass dimensions (H x W x D): 650 x 343 mm

- Side window dimensions (H x W x D): 309 x 343 mm

- Maximum trunk length: 50 cm

- Diameter of internal/external flue: 180/200 mm

- Air inlet diameter: 100 mm

- Weight: 115 kg

CERTIFICATES;

- EN 13229 - Number of test reports: 9/18 - LG

- Ecodesign requirements statement: YES

- BImSchV Level 2: YES

- 15th LPP: YES

ADDITIONAL INFORMATIONS:

Specific precautions: They must be installed, used, and maintained in accordance with the installation and operation manual.

- For continuous combustion: YES

- Fuel type: Logs with a moisture content ≤ 20%

- Minimum cross-sectional area of the supply air network: 700 cm3

- Minimum cross-selection of overhead outgoing networks: 980 cm3

Ashtray: YES

- Suitable device for passive and low-energy homes: NO

- Opening of the side door

- Possibility of fire with the door open: NO

- A special wide deflector in the hearth for a longer circulation of gases and thus increases the efficiency of heating.

- Minimum draft of the chimney 12 Pa

- Double cast iron hearth plates

- Cold door handle

- Regulation of primary and secondary air

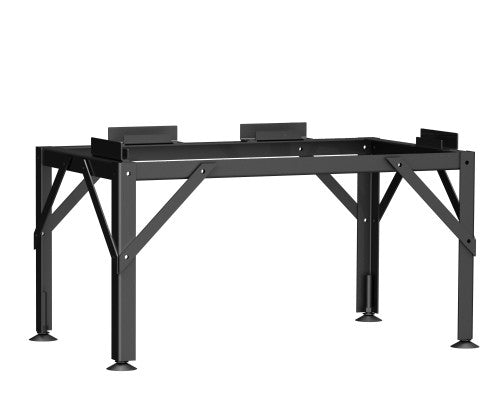

- Option to purchase a stand

- The possibility of connection to an external air supply of 100 mm, the flange must be purchased additionally

- Warranty: 5 years

- Made in Europe

EQUIPMENT AND ADVANTAGE

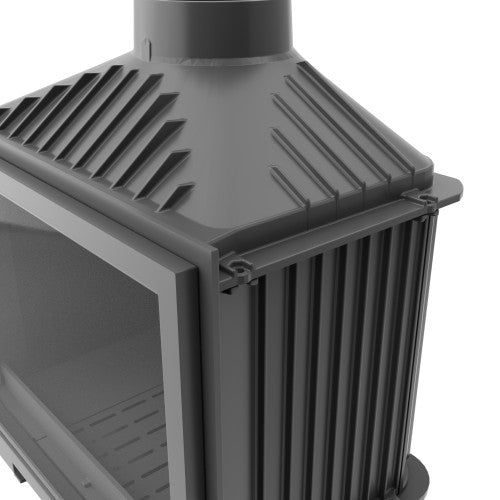

1. RELIABILITY AND DURABILITY
A solid construction made of cast iron and steel guarantees safety and durability for many years. Hand Made in Poland to Order your KFD Ariana is made to last with the finest steel construction.
2. EFFICIENCY AND ECOLOGY
Advanced dual combustion system that guarantees high efficiency and low emission of pollutants. log lengths are ideal at 12" and recommended to be 2" in diameter. 82% Efficiency rating

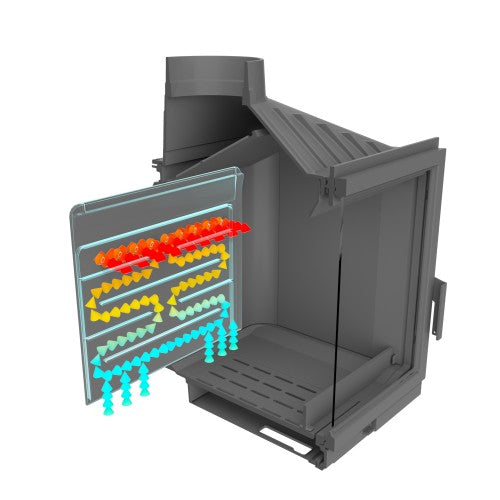

3. MORE EFFICIENCY
The deflector extends the flue gas circulation path in the furnace. Thanks to this, the heating efficiency increases, and the combustion itself become even more ecological.

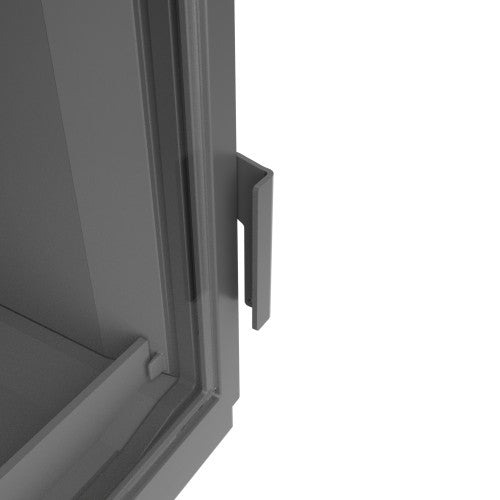

4. TIGHTNESS, AESTHETICS, AND COMFORT
The door is locked with a lock, ensuring tight closure. The set includes (depending on the model) a "cold hand" or a protective glove, ensuring safe operation.
5. SAFETY AND A BEAUTIFUL VIEW OF THE FIRE
Glass panes made of ceramics resistant to temperatures up to 800 degrees Celsius and thermal shocks. Thanks to the "clean glass" system with an air curtain, the windows stay clean for a very long time.
6. EASY MAINTENANCE
Removable parts of the hearth make it easy to carry out maintenance work without having to completely dismantle the hearth.
7. COMFORT OF OPERATION
A removable ash pan allows you to remove ash quickly and easily.
8. POWER ADJUSTMENT
Smooth adjustment of the air intake allows you to control the power of the device.

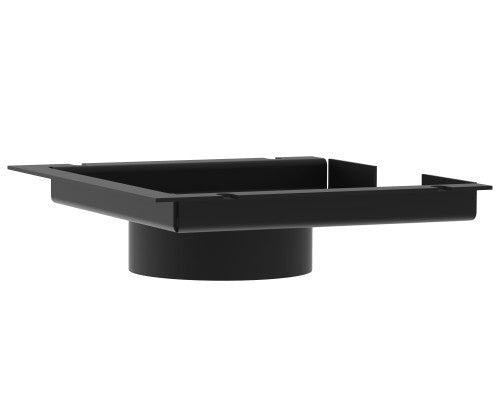

9. DIRECT AIR INTAKE
The direct air inlet to the furnace enables installation of the device in houses equipped with mechanical ventilation - recuperation.

Dimensional Card

Declaration

KFD Product Mini-Catalogue

Need a custom fireplace, we can have just about anything you think of designed and built. contact us 541.678.0243
