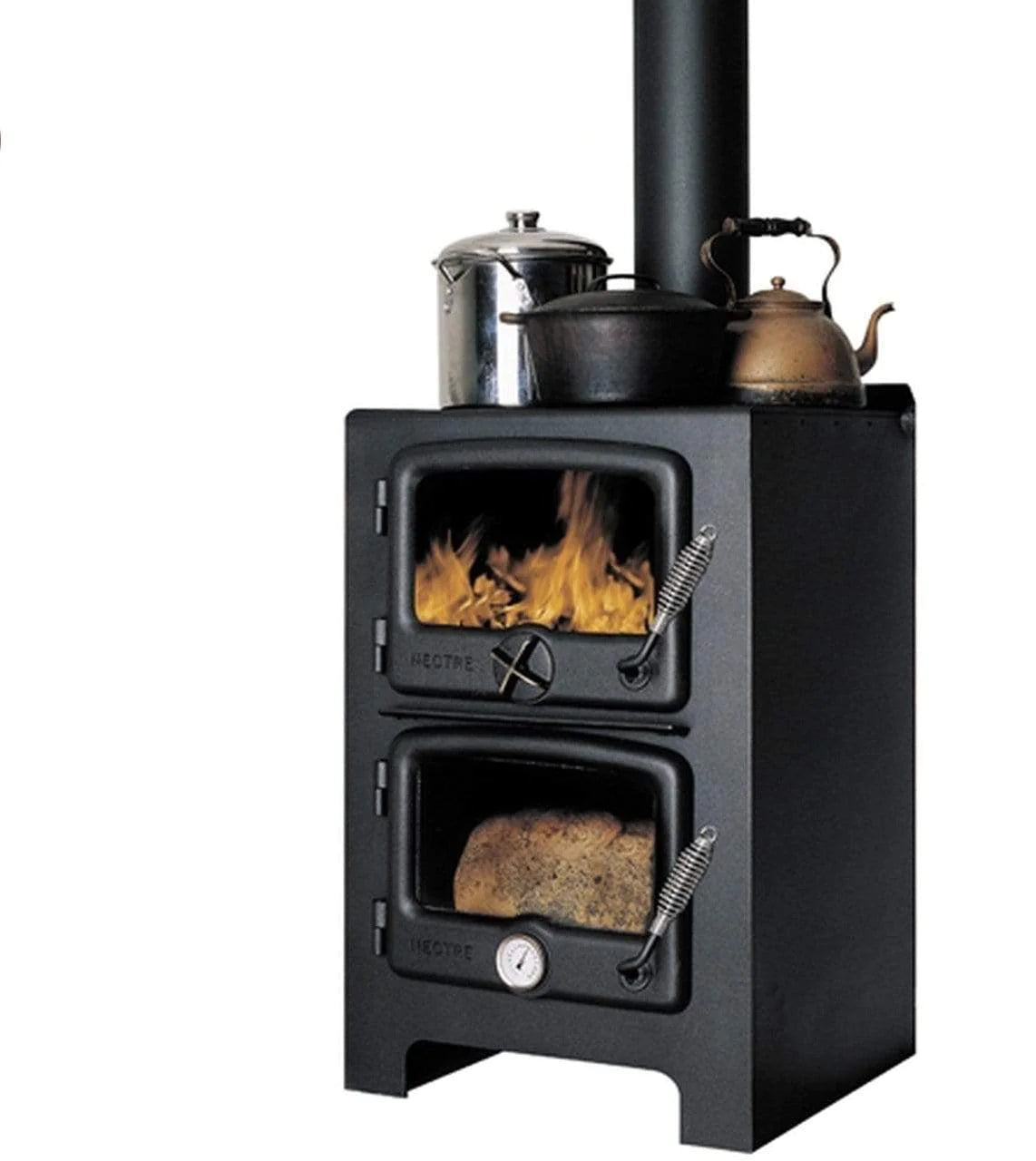

Nectre Wood-fire Oven Combination Cook Stove / Heater N350
This Nectre N350 has been Discontinued - But we do have access to the N550 and can order them in for our customers.

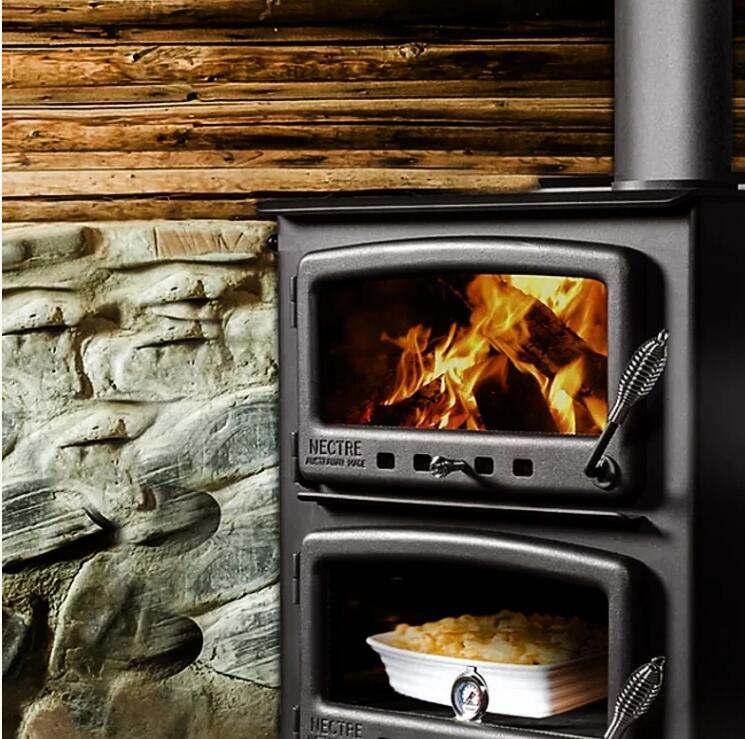

The Nectre N350 Wood Stove & Oven Is A Unique Multi Function Stove. The N350 Model Is A Wood Stove With Built In Oven & Cook Top That Can Be Used To Heat Your Home.
With its robust oven and stove top cooking features, the
wood-fire oven is perfect for remote locations or anywhere
wood is the preferred fuel source. Enjoy the ability to cook
a roast, pizza or breads, plus enjoy the added benefit of
primary heating in spacious living areas.
Radiant / Stove Heater
The Nectre Wood-fired Oven is beautifully compact but yet powerful enough to heat up to 1,000 sq. ft. of living area. With its high efficiency rating and modest heat output, the Nectre Mid Size Wood-fired Oven is a welcome addition to your home or vacation property.
The firebox body is built of 1/4" steel surrounded by a 1/8" steel outer casing to ensure efficient heat output, while the doors are made of durable and long-lasting cast iron.
The firebox itself is made of 1/4" steel, with 5/16" side sacrificial plates, hanging in position with no mechanical fixings.
Other Features
- BTU: 30,000
- Cool touch handles

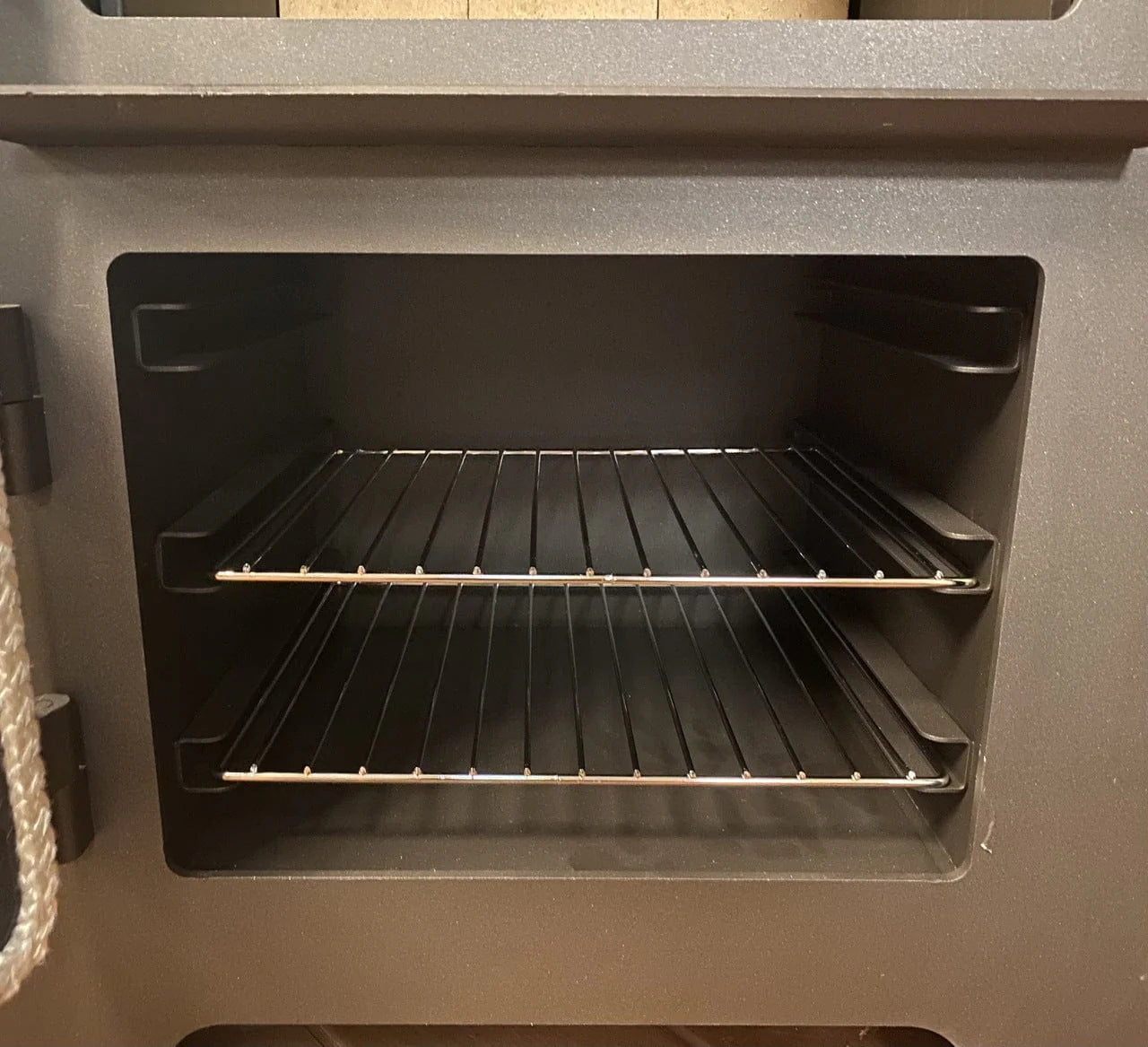

- Includes two removable wire racks
- Built in Thermometer reads in Celsius & Fahrenheit
- Manufactured with long lasting steel and iron
- 10 year limited warranty
- Oven Thermometer
- Flame path around the sides, base and rear of the oven
- Ash Pan
- Glass door for the oven and firebox
- Two cook rings, five inches each
- Supplied with 2 wire cooking racks and 1 baking tray
- Cook Top: Direct radiant heat 1/4″ top plate has 2 removable cook rings
- Oven temperatures supplied with both a °F and °C thermometer

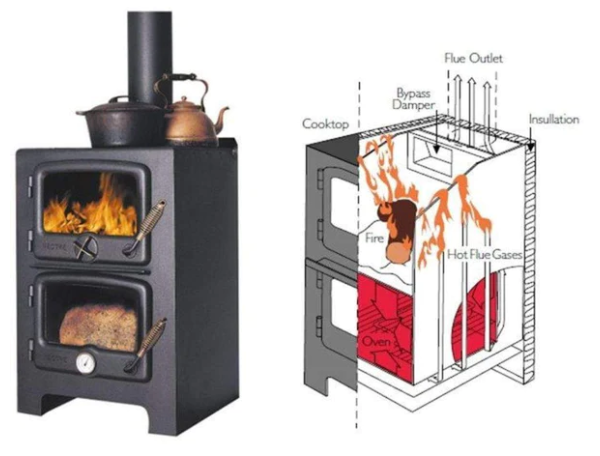

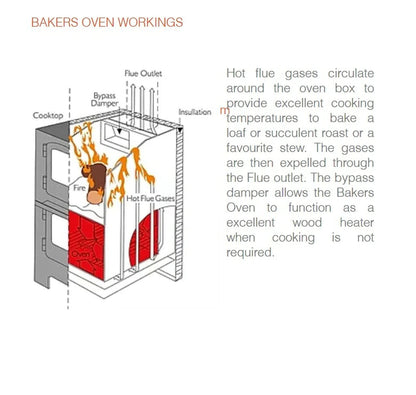

- The adjustable bypass allows for greater fire and oven temperature control by increasing/ decreasing the amount of air into the firebox

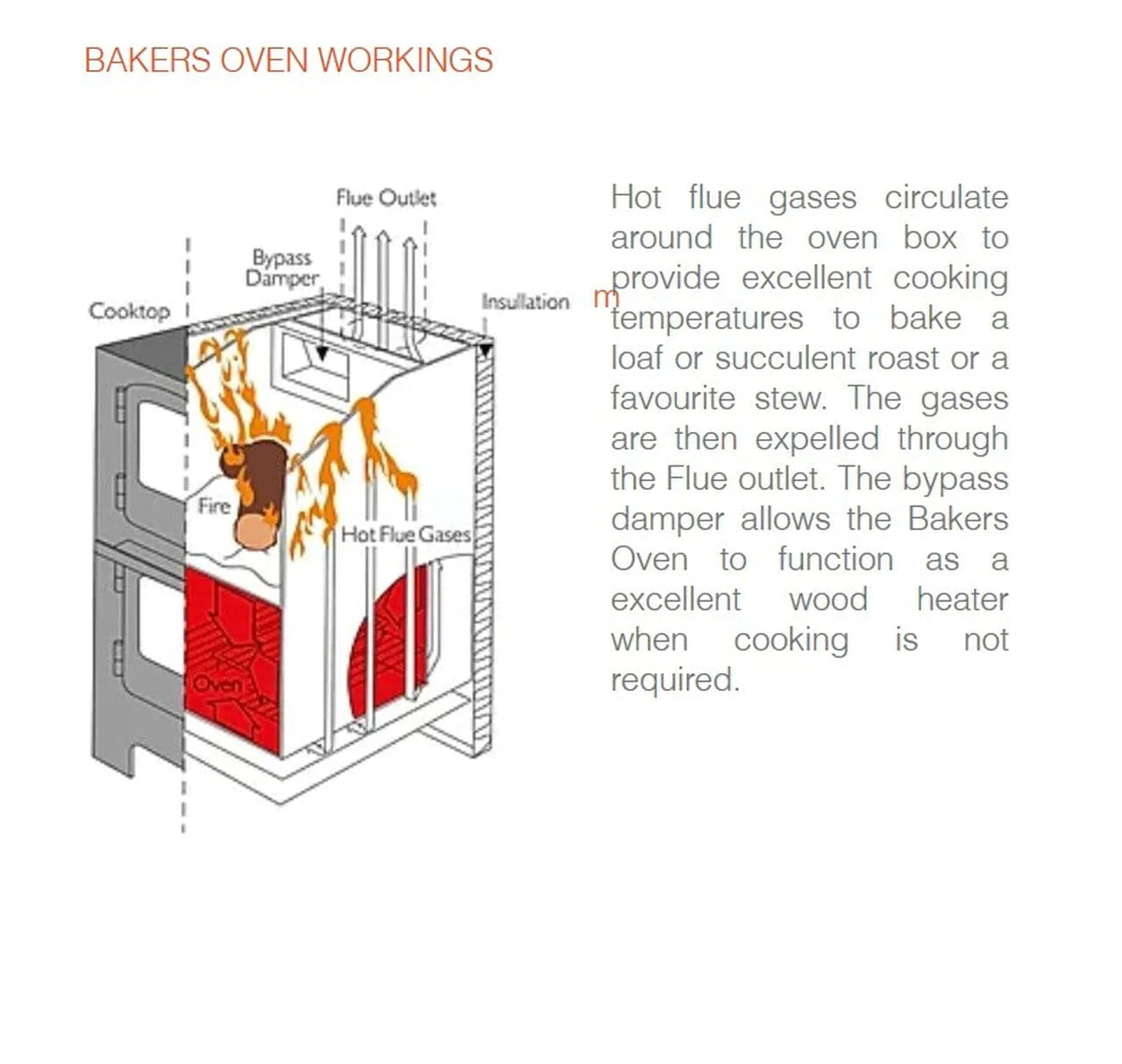

- With the flue bypass dampener closed, flue gases spill over the internal side plates of the firebox creating a convection cooking effect
- Cast iron doors and ceramic glass
-
Residual Heat Output . . . . . . . . . . . . 750-1,000 sq. ft. (70 to 92.9 m2) Weight . . . . . . . . . . . . . . . . . . . . . . . . 265 lbs (120.2 kg)
Construction . . . . . . . . . . . . . . . . . . . Steel 1/4" & 5/16"
Stove racks . . . . . . . . . . . . . . . . . . . . . 2
Maximum Log . . . . . . . . . . . . . . . . . . 13" (33.0 cm)
Firebox Volume . . . . . . . . . . . . . . . . . 1.49 cu.ft (0.042 m3)
Top Flue Size . . . . . . . . . . . . . . . . . . . . 6" (15.2 cm)
Efficiency Rating . . . . . . . . . . . . . . . . 78%
5" (12.7 cm) Cook rings . . . . . . . . . . . 2
-
Supplied with
2 wire cooking
racks
- Cook Top: Direct
radiant heat 1/4"
top plate has
2 removable
cook rings - Oven
temperatures
supplied with
both a °F and °C
thermometer - With the flue bypass
dampener closed, flue
gases spill over the
internal side plates of
the firebox creating a
convection cooking
effect - Cast iron doors
and ceramic
glass and stay cool Handle
Additional Features

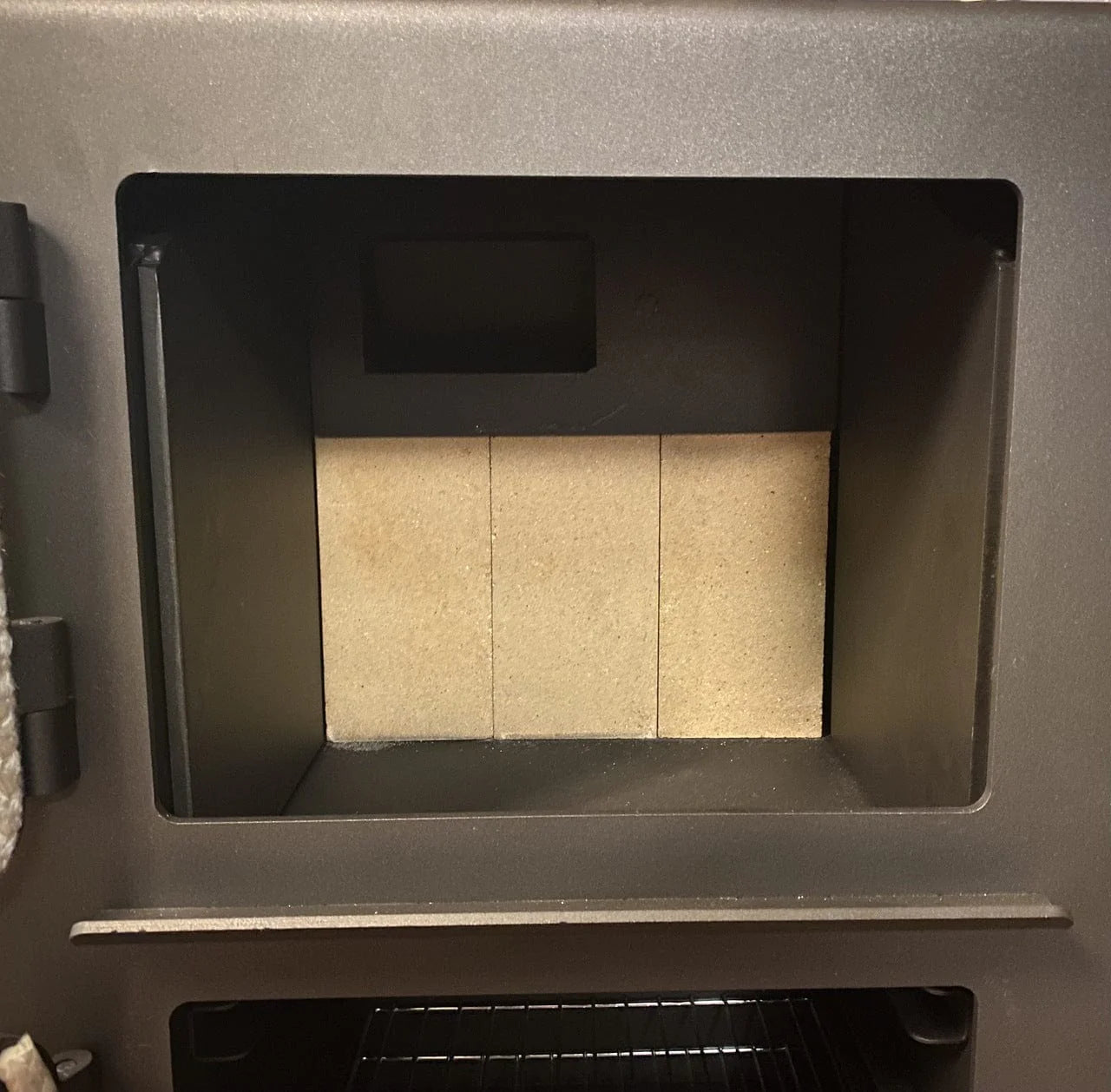

The Nectre 350 Wood-fired Oven is finished in black metallic paint and comes with cast iron door with ceramic glass and stay cool spring handles. Steel baffle with steel brick retainer and firebrick lining to improve thermal mass.
- Installation
We recommend having a professional install any of our Nectre heaters. We can arrange installation and most cases will undertake a site inspection to determine the correct location.
- Flue and Hearths
Nectre Wood-fired Oven's are not supplied with a flue from the factory. We provide suitable a flue and or decromesh kits required for installation. Nectre heaters do not come with hearths, we can supply a suitable hearth for your requirements.
- Radiant Heat
The Nectre oven's outer skin is the firebox, which means heat radiants objects around the fire. Radiant heat is excellent if you want to sit in front while watching the flame.

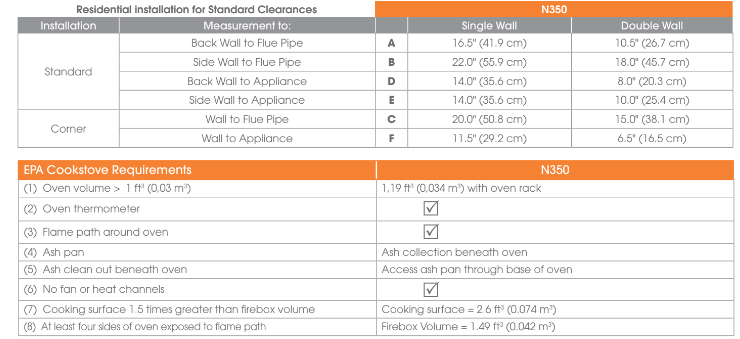

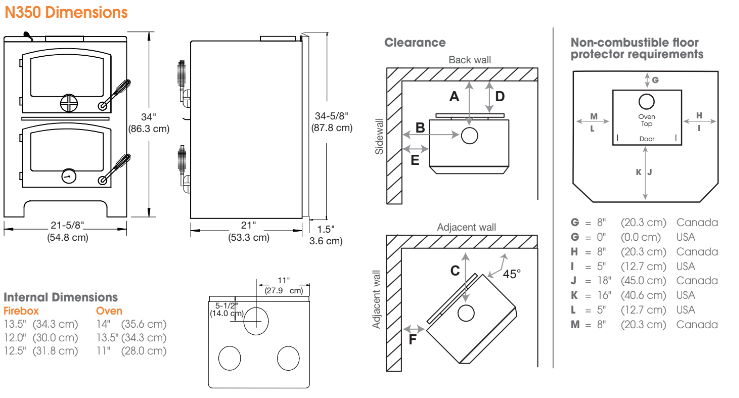

Install and clearance information for the Dimplex Nectre Australian Made Dual Purpose Fireplace
Residential installation for Standard Clearances N350
Installation Measurement to: Single Wall Double Wall
Standard
Back Wall to Flue Pipe A 16.5" (41.9 cm) 10.5" (26.7 cm)
Side Wall to Flue Pipe B 22.0" (55.9 cm) 18.0" (45.7 cm)
Back Wall to Appliance D 14.0" (35.6 cm) 8.0" (20.3 cm)
Side Wall to Appliance E 14.0" (35.6 cm) 10.0" (25.4 cm)
Corner Wall to Flue Pipe C 20.0" (50.8 cm) 15.0" (38.1 cm)
Wall to Appliance F 11.5" (29.2 cm) 6.5" (16.5 cm)
