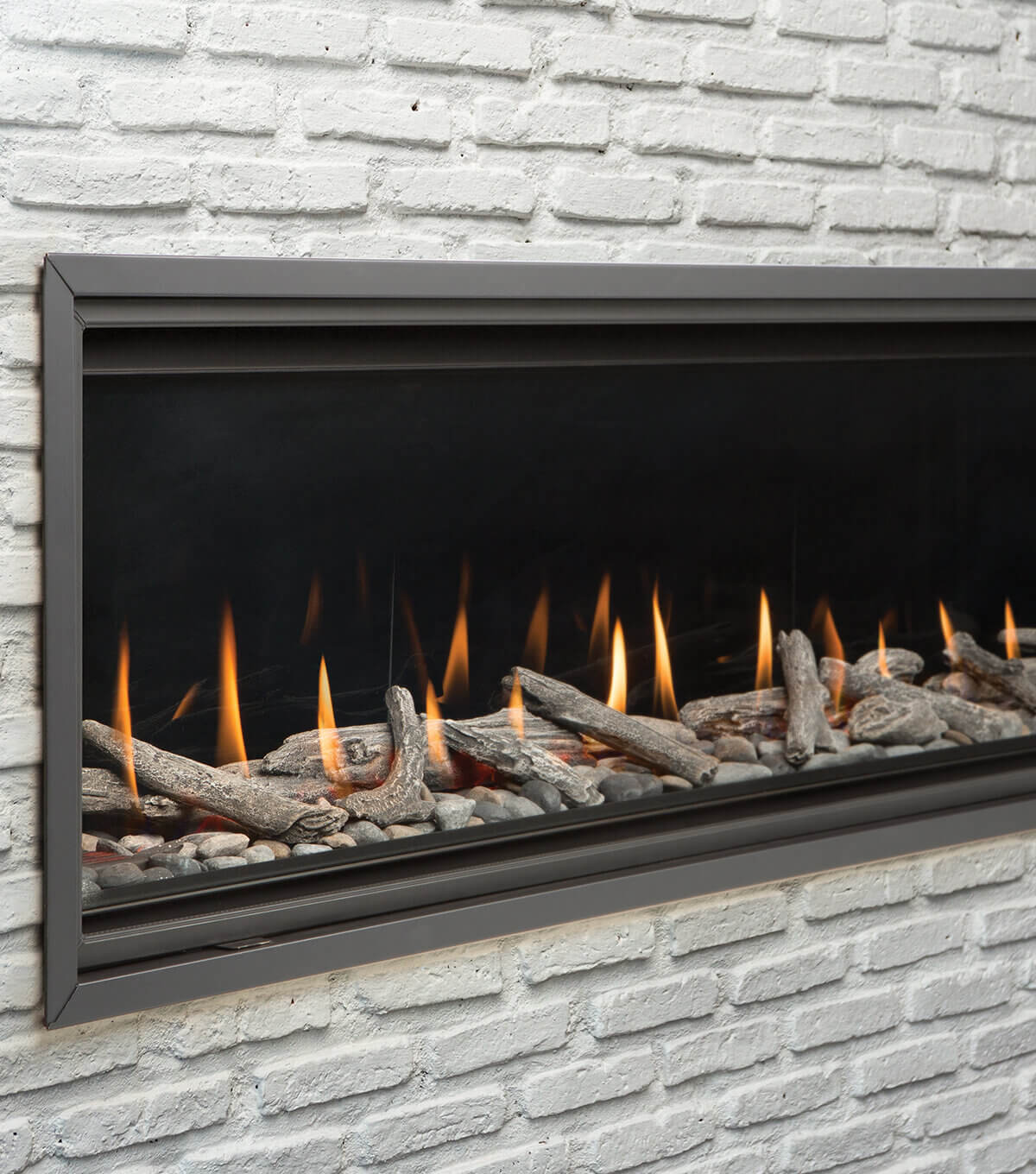

Montigo DRL6013 DelRay Linear FULL LOAD MODEL Gas Fireplace

The Perfect Companion to Today’s Design Trends

Introducing the DELRAY Linear DRL6013. This minimalist residential gas fireplace offers elegance and efficiency at an entry level price point.

At a slim 14 ¼” framing depth and 4/7 direct venting, the DELRAY can add sleek contemporary styling to both new construction and retrofit installations at minimal impact to floor space.

The DELRAY Linear is a high efficiency, mobile home compatible fireplace that is ready to customize with any of our stunning burner media options. Combustible wood facing can be installed right down to the glass opening.

Additional features include heat management, propane conversion kits, trim kits, and more.

Standard:

• Concealed burner with Ice fireglass, multi-function remote control, remote controlled fans, micro mesh screen, black reflective glass, halogen downlighting, battery backup

Options:

• Propane conversion kit, adjustable trim kit, Driftwood & Speckled Stones media, glass media, heat management kit

Brochure | Installation Manual

SPECS AT-A-GLANCE:

Max BTU (NG)	28,000
Framing Width	68 15/16"
Framing Height	33 11/16"
Framing Depth	14 1/4"
Glass Opening Width	60 1/2"
Glass Opening Height	14 11/16"
Inner Vent Size	4
Outer Vent Size	7
Commercial	No
Customizable	No
P.4. 1-15 Efficiency NG	64.0%
P.4. 1-15 Efficiency LP	64.0%

---

Dimensions:
