Invicta

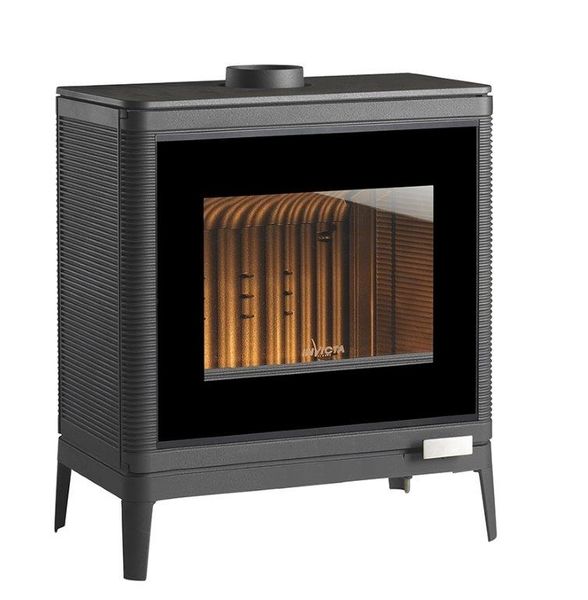

Invicta® Kazan Grand Angle Cast Iron Wood Stove

Regular price $4,299.00 USD
Regular price $4,800.00 USD Sale price $4,299.00 USD
Sale Sold out
Shipping calculated at checkout.
Insider's Club: Join for free to see all promos
Shipping: Free Shipping (details)
Availability: Ships out within 1-3 days

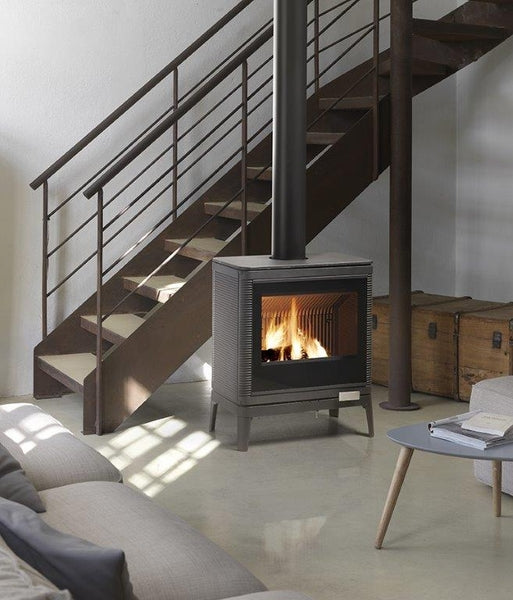

Kazan GA 30" Cast Iron Stoves

Featuring a screen-printed “grand angle” (GA) pane, our Kazan stove is both powerful and chic. Its fins are designed with an extended heat transfer surface for improved energy efficiency.

Directly inspired by the thermal efficiency of cast iron radiators, Kazan Grand Angle (GA) combines design and performance. The fins give it a unique and elegant streamlined style, while enhancing energy performance through increased heat exchange surface.

The Kazan GA (Grand Angle), manufactured in France by Invicta, is inspired by the thermal efficiency of cast iron radiators. The elegant and innovative design of the fins is where composition and production meet while also providing enhanced energy performance through its increased heat exchange surface.

Features

OPTIMAL POWER
 9 kW
POWER MODULATION
6 to 13.5 kW
HEAT VOLUME
125 to 275 m³
HEATING SURFACE
50 to 110 m²
GREEN FLAME
 7 stars
EFFICIENCY
 76%
CO RATE
0,08 %
CONCENTRATION OF POWDERS
28 mg/Nm³
PERFORMANCE INDEX
0.5
COMBUSTILE
Logs 25, Logs 33, Logs 50 cm
MAXIMUM LENGTH OF THE LOGS (HORIZONTALLY)
58 cm
LOAD
Front
SMOKE EXHAUST
Top or Back
DIAMETER OF NOZZLE
150 mm
DIMENSIONS
H 768 x W 652 x D 372 mm
WEIGHT
162 kg
DESIGN
 Contemporain
MATTER
 Cast Iron
COMPLETION
 Anthracite
CERTIFICATION
EN 13240 – BImSchV2
GUARANTEE
 5 years

                                                                                     Want to see the Full Manual and Specs? Click here

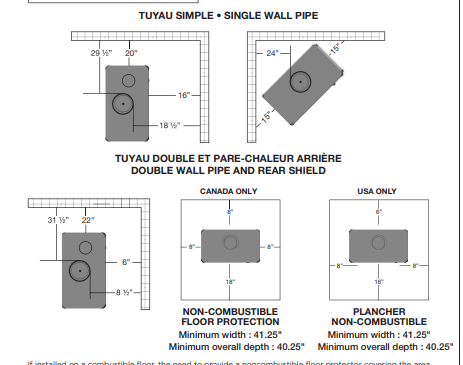

Recommended Heat Shield Click here

Why this product?

8 hour extended burning

The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

Adjustable secondary air

    Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

    Clean glass

      The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

      Origine France Garantie (Made in France Guarantee)

      The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

      Post-combustion system

        Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

        Spring loaded door

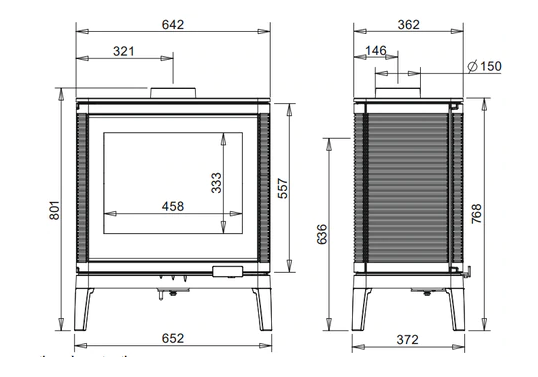

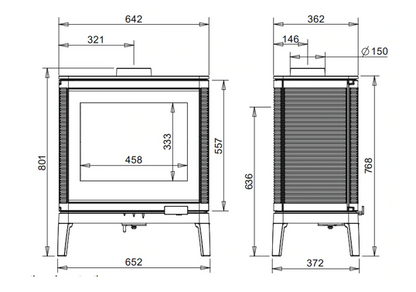

        Technical Elevations




        Optional Accessories

        Rear Heat Shield

          • Color: Charcoal
          • Optional accessory
          • Manufactured from heat-resistant material
          • For use with the Invicta Kazan cast iron wood stove
          • Protects against excessive heat produced by wood stoves
          • Supplies an additional layer of safety during the operation of hearth appliances


          Please Note: Do not connect the stove to any hot air distribution system
