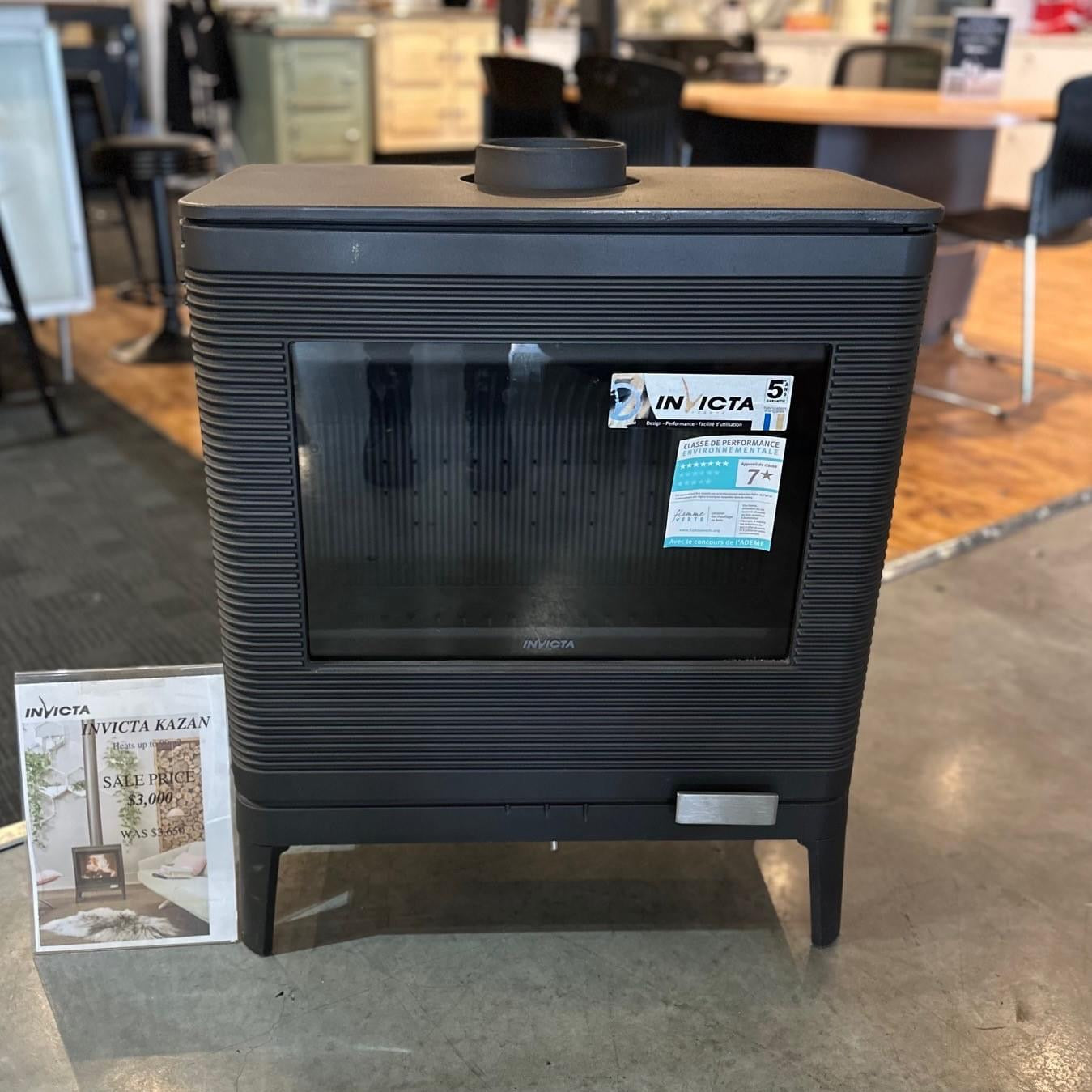

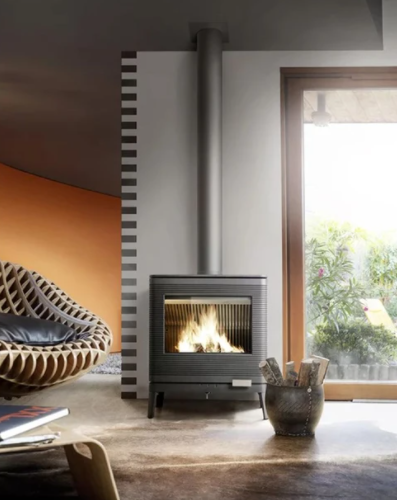

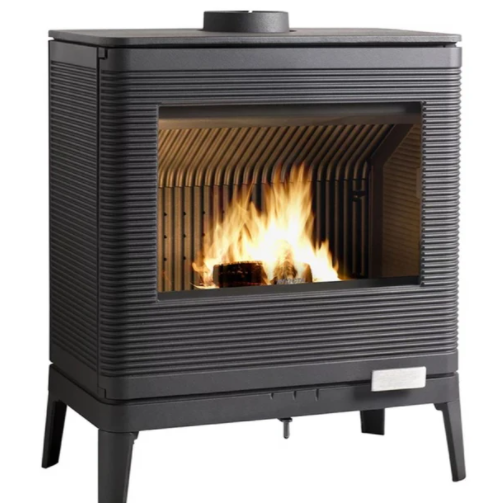

Invicta® Kazan Cast Iron Wood Stove
Kazan 26" Cast Iron Stoves
Kazan is a stylish and high-performance stove inspired by the heat efficiency of cast iron radiators. Its fins provide it with a unique and elegant look, all the while improving its energy efficiency by way of an extended heat transfer surface.
Zen attitude…Kazan breathes harmony and serenity to your home. Feel all the positive energy that emerges from this well-proportioned stove.
The stylish Kazan fireplace combines modern design and great performance. Manufactured in France by Invicta, the Kazan will deliver up to 42,000 BTUs of heat. Feel all the energy and warmth that emerges from this beautiful, woodburning stove.
Features
|
OPTIMAL POWER
|
9 kW |
|
POWER MODULATION
|
6 to 13.5 kW
|
|
HEAT VOLUME
|
125 to 275 m³
|
|
HEATING SURFACE
|
50 to 110 m²
|
|
GREEN FLAME
|
7 stars |
|
EFFICIENCY
|
76% |
|
CO RATE
|
0,08 %
|
|
CONCENTRATION OF POWDERS
|
28 mg/Nm³
|
|
PERFORMANCE INDEX
|
0.5 |
|
COMBUSTILE
|
Logs 25, Logs 33, Logs 50 cm
|
|
MAXIMUM LENGTH OF THE LOGS (HORIZONTALLY)
|
58 cm
|
|
LOAD
|
Front |
|
SMOKE EXHAUST
|
Top or Back
|
|
DIAMETER OF NOZZLE
|
150 mm
|
|

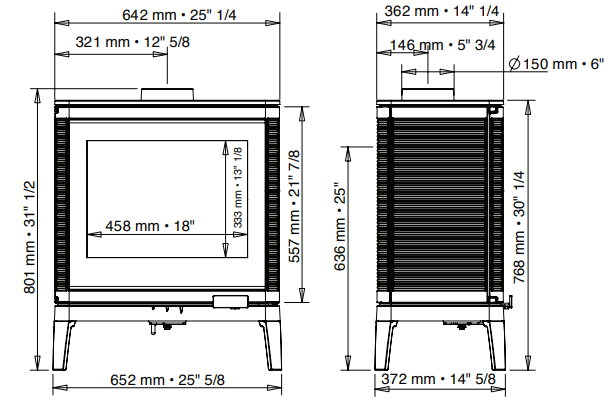

DIMENSIONS
|
H 768 x W 652 x D 372 mm
|
|
WEIGHT
|
157 kg
|
|
DESIGN
|
Contemporary |
|
MATTER
|
Cast Iron |
|
COMPLETION
|
Anthracite |
|
CERTIFICATION
|
EN 13240 – BImSchV2 |
|
GUARANTEE
|
5 years |
100% Cast Iron
Want to see the full specs here is the Kazan User Manual PDF
Invicta is the best example of balance between history, craft and European design. It’s also Europe’s largest manufacturer of cast iron stoves, fireplaces and insert.
The Invicta foundry is located in Donchery since 1924, in the Champagne-Ardenne region of France, and is one of the oldest and largest working foundries in Europe.
Recommended Heat Shield Click here
Would you like to see all the Invicta Cast Iron Wood Stoves
The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.
Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.
The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.
The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.
Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

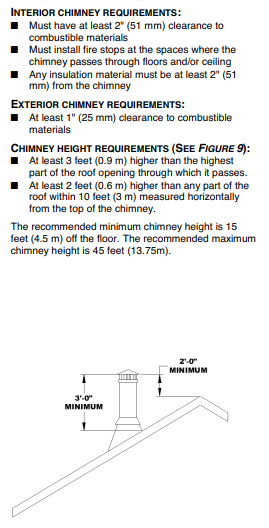

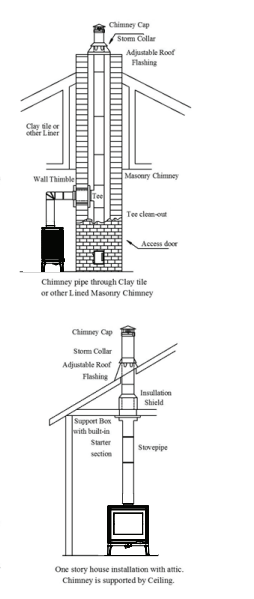

Chimney Connection info - from The Kazan Owners Manual (Pg 12 of 47)
2.5 CONNECTION TO THE CHIMNEY This room heater must be connect to: 1) A chimney complying with the requirements for Type HT chimneys in the Standard for Chimneys, Factory-Built, Residential Type and Building Heating Appliance, UL 103, or 2) a coded-approved masonry chimney with a flue liner. CAUTION: Care must be taken during installation. Shortcuts or compromises may result in safety hazards or even fire. Do not connect the unit to a chimney used for another appliance. Do not cut rafters or ceiling joints without first consulting a building official to ensure that structural integrity is not compromised. Use a 6’’ black single or double wall connector pipe. Use only a 6’’ insulated flue in compliance with the UL 103HT or ULC S629 standard as soon as you go through a combustible wall, in compliance with your local installation standards. This connector and each ajoining section will be fixed to the smoke outlet using 3 self-taping screws #10-1/2’’. A CHIMNEY SERVING AS AN OUTLET FOR A STOVE CANNOT BE USES FOR ANY OTHER APPLIANCE. CAUTION: PLEASE REFER TO THE INSTRUTION MANUAL OF THE CHIMNEY MANUFACTURER FOR THE INSTALLATION DETAILS
Invicta, French foundry and enamel plant is implanted since 1924 at Donchery in the region Champagne-Ardenne. With 280 employees, these stoves are truly hand made.
