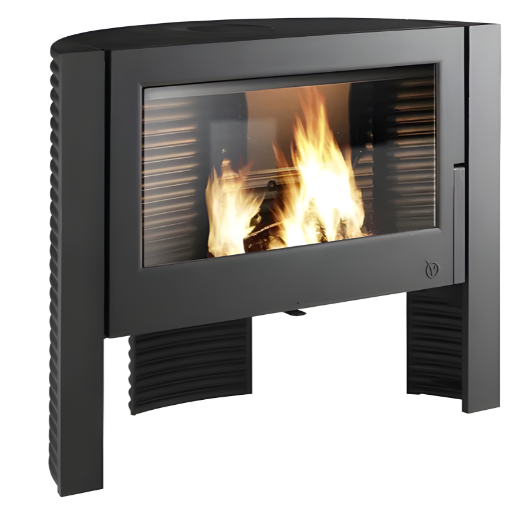

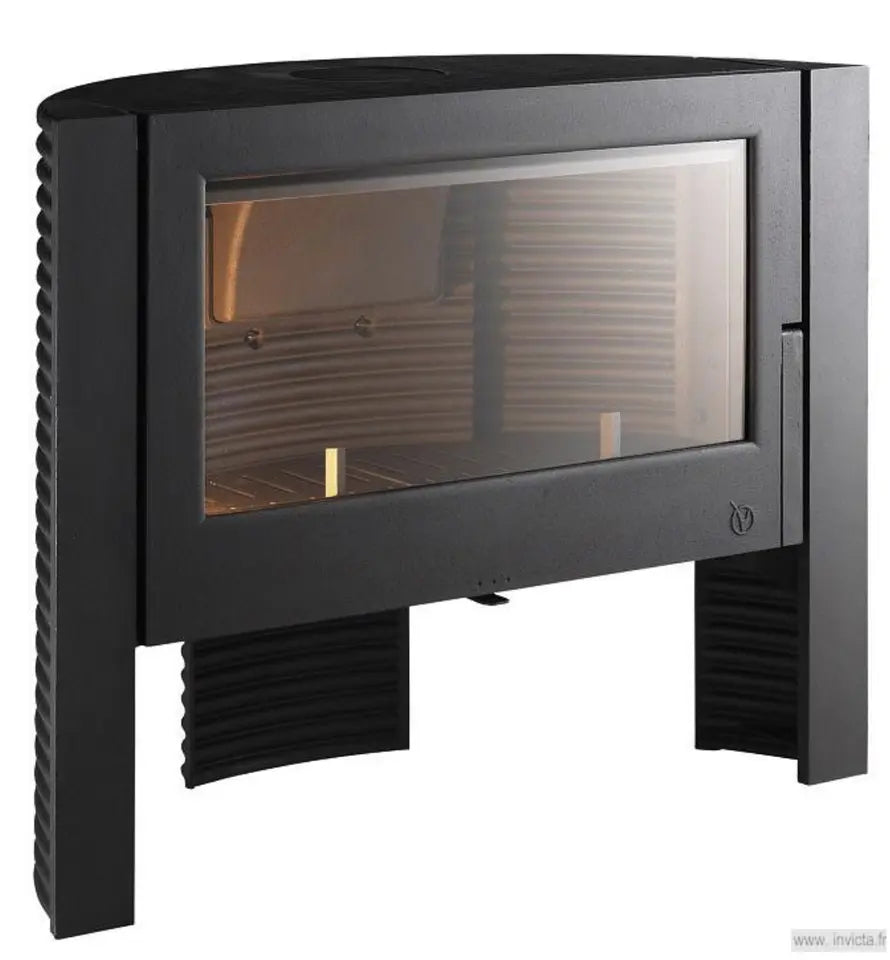

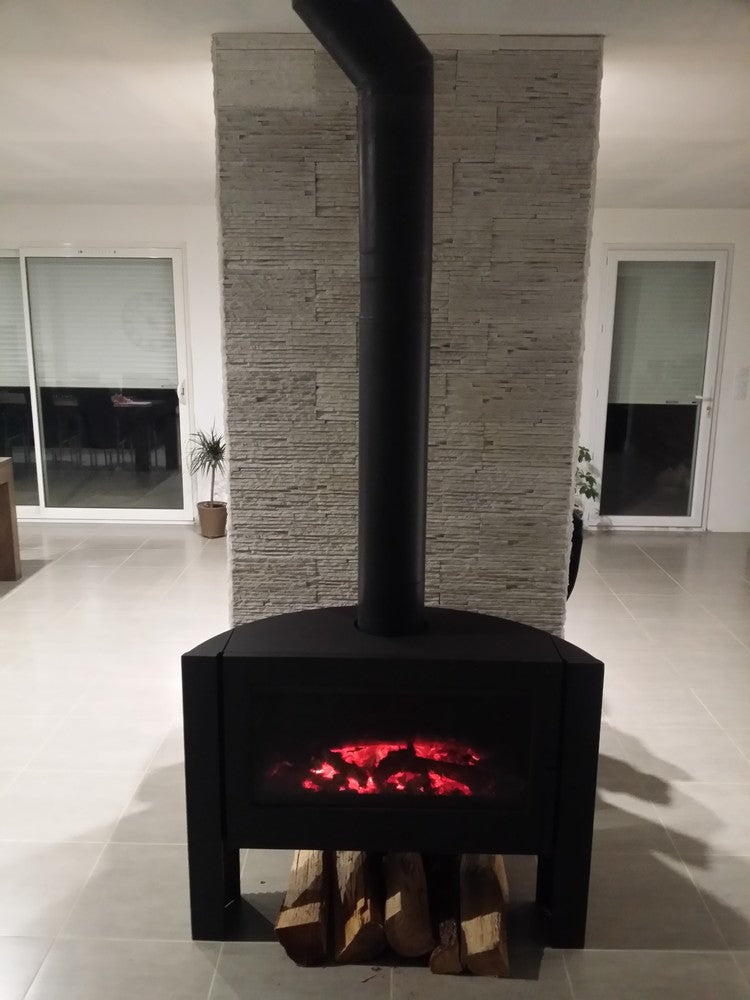

Invicta® Itaya Wood Burning Stove Cast Iron Fire place

Invicta Itaya 41" Cast Iron Stoves

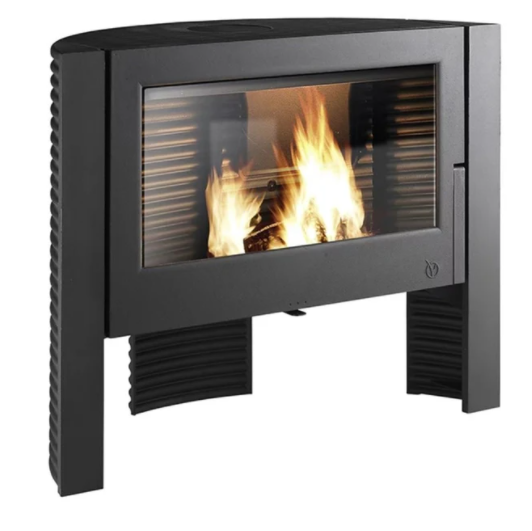

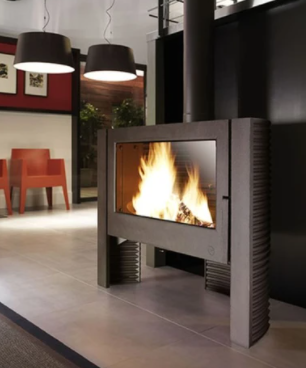

Sophisticated and unique, our Itaya cast iron stove provides a touch of exquisite warmth to any interior.

Exceptional design, the chimney-stove ITAYA, creates a unique and warm atmosphere in your home.

Invicta designers have thought about the form and function of every piece of the Itaya Wood Burning stove. The large fire chamber allows for logs up to 71cm in length and a baffle system which is designed to swirl the gases in the fire to give a captivating flame display. At 12kW the Itaya is a stove suited to the larger room and can hold logs of 71cm.

The Itaya features a subtle air wash system which keeps the large viewing window in this magnificent log burner crystal clear. The air introduced by the clear pane air wash system acts as a secondary air system and increases the efficiency of the appliance by ensuring a more complete combustion of gases within the stove. This also reduces smoke emissions.
The Invicta Itaya is made of cast iron and the well designed yet obstructive legs raise the large firebox well off the ground.The Itaya Wood Burning EPA Stove features a firebox and baffle system designed to swirl the flames and give a captivating display. Made by stove manufacturer Invicta in France.

Emission: 1.9 gr/hr EPA
38 204 BTU EPA Test Fuel
Max Output: 90 000 btu/hr
Heating Capacity: 2500 SQFT
Firebox volume/ Capacity: 2,32 CUFT.
Weight: 485 lbs
Log size: up to 24"
Flue dimension: 7"
Flue exit: Top
Color: Anthracite

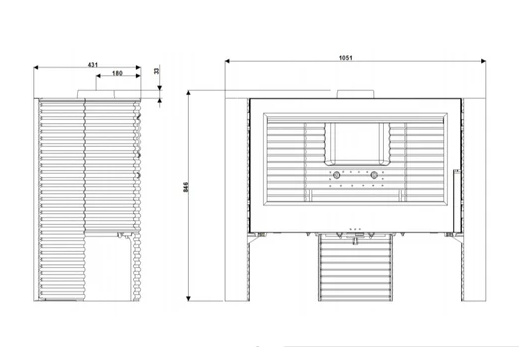

Measurment (HxWxD): 33,25x41,25 x17 in

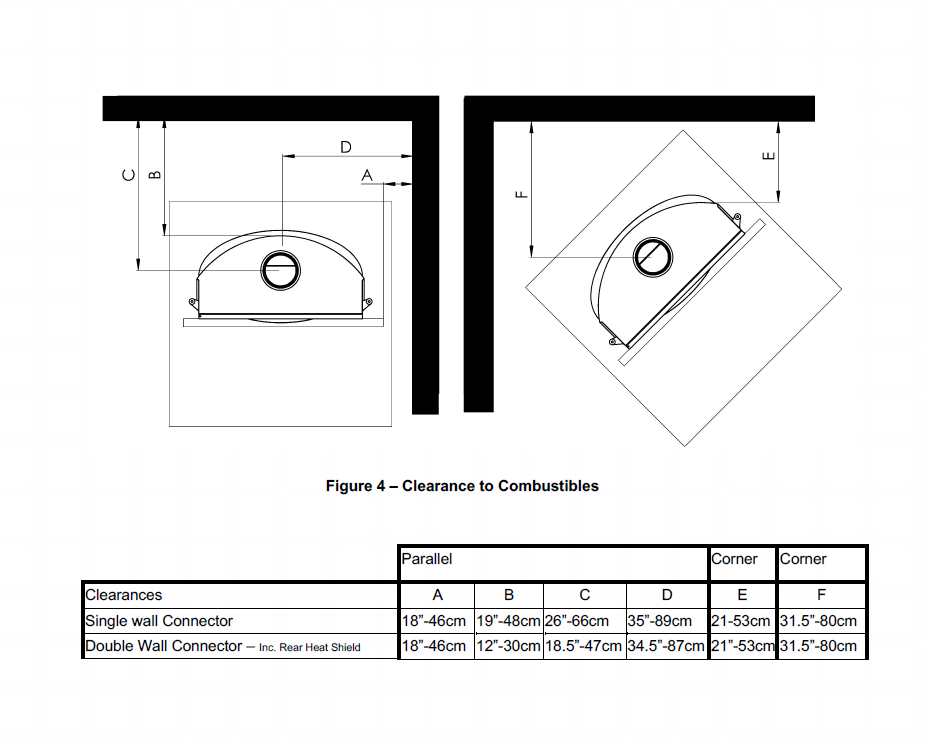

Single wall pipe: Double wall pipe and rear shield:
Back: 19" Back: 12"
Sides: 18" Side: 18"
Corner: 21" Corner: 21"

Here is the Owners Manual

Here is the Sales Brochure

Here is the Installation Manual in French- sorry

Would you like to see all the Invicta Cast Iron Wood Stoves



Stock # 6100-44

*Venting Requirements: This unit requires venting pipe with an inner diameter of 7 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
* Please Note: Do not connect the stove to any hot air distribution system.

*Also Note: This appliance must be installed on a non-combustible protector that extends to the front, sides, and back of the appliance.

Made of cast iron, the Invicta 42 inch Itaya wood burning stove is built to last. Wood stoves are the heartiest of all heating appliances. When you buy one, unless there's an act of God, it will be with you for life. The contemporary design of the Itaya stove means it will look good in nearly any home. Plus this stove is EPA certified to meet emissions standards so you know it will burn efficiently.

Why this product?

8 hour extended burning

The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.

Adjustable secondary air

Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.

Clean glass

The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

Origine France Garantie (Made in France Guarantee)

The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

Post-combustion system

Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.



Invicta, French foundry and enamel plant is implanted since 1924 at Donchery in the region Champagne-Ardenne. With 280 employees, these stoves are truly hand made.
