Installation Questions?
Would you like to see all the Invicta Cast Iron Wood Stoves

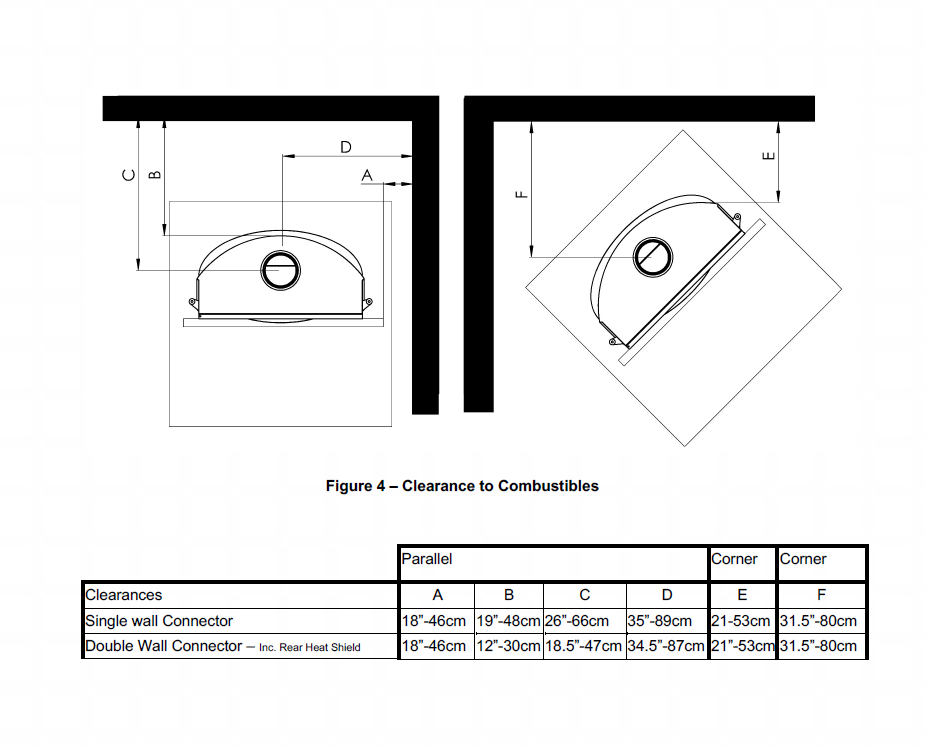

Spacing needed from combustibles -23" side to side
Spacing from non combustibles - There’s no restriction for non-combustible wall, but a sheet of cement board fixed to wood stud is not consider as non-combustible wall. For that, they need to check with the local code because it’s different in each state.
Chimney Height Requirements: At least 3 feet (0.9 m) higher than the highest part of the roof opening through which it passes. • At least 2 feet (0.6 m) higher than any part of the roof within 10 feet (3 m) measured horizontally from the top of the chimney. The recommended minimum chimney height is 15 feet (4.5 m) off the floor. The recommended maximum chimney height is 45 feet (13.5m). This Invicta series requires a draft between 0.06” and 0.1” water column. Ensure your chimney is long enough to provide the minimum draft, and use a damper if your installation has a required chimney height that provides too much draft.
Comparison chart for Invicta Cast iron Wood Stoves
Want to see the Manual here is the manual for the entire Invicta Seriet itaya Antaya and Gaya
Why this product?
Invicta is the best example of balance between history, craft and European design. It’s also Europe’s largest manufacturer of cast iron stoves, fireplaces and insert.
The Invicta foundry is located in Donchery since 1924, in the Champagne-Ardenne region of France, and is one of the oldest and largest working foundries in Europe.
8 hour extended burning
The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.
Adjustable secondary air
Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.
Clean glass
The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.
Origine France Garantie (Made in France Guarantee)
The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.
Post-combustion system
Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.
