Malm Zircon Direct Vent Gas Fireplace MCM Mid Century Modern Cone Fireplace
This new design on a long lasting style is back and made to order specifically for you. Made to order 6 months out for black and 7 months for porcelain
The High Sierra Gas fireplace is custom-made by MALM in California to order for you with several options, choose your color, style and size.
These Handmade Cone Style Malm Fireplaces come in Natural Gas or Liquid Propane
TIGER DRYLAC COLOR PDF
MADE IN THE USA
The Gas High Sierras 34" is a sleek, fluid modern design that effectively shows off the blaze within. The burner does not require electricity; if your power fails, the flame will keep burning and heating your home. Available in all the standard Malm colors, the Gas High Sierras 34" can provide a cozy atmosphere to any home. Here is the 34"

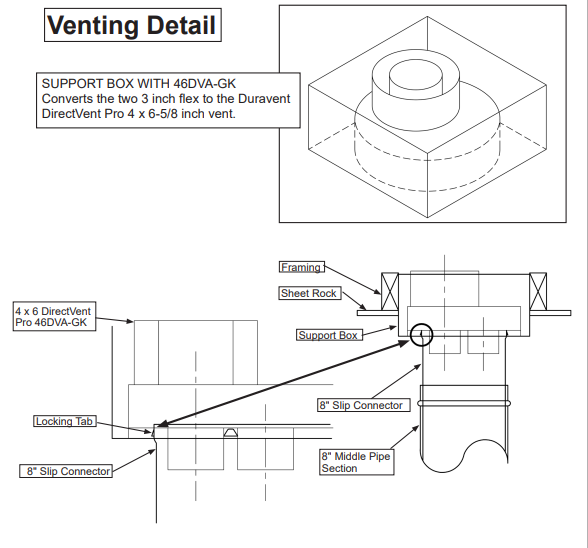

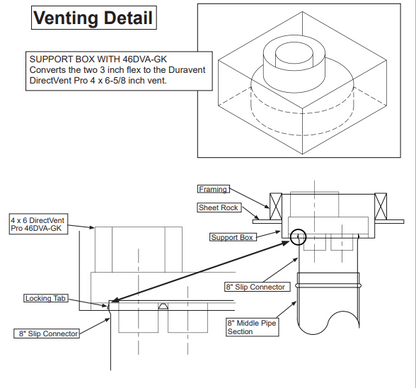

Additional venting required but not included; 2 - 3” Flex from unit height of 34 1/2” to Ceiling Support Box. Ceiling Support Box is Included. 4” x 6" DuraVent DirectVent Pro required from support box through roof to a height specified by DuraVent DirectVent Pro instructions. SUPPORT BOX WITH 46DVA-GK Converts the two 3 inch flex to the Duravent DirectVent Pro 4 x 6-5/8 inch vent the support box that is included is 18" by 18"
- BTU Input: Natural Gas 49,000 / Propane 45,000
- Constructed from 14- and 18-gauge steel
- Adjustable flame height
- Includes matching pipe to 8' ceiling height
- Wall clearance to combustibles 3"
- Requires 8" Gas "B"-Vent
- Lift off screen included
- Automatic thermal damper
- Ceramic fiber logs with realistic glowing embers
- Piezo igniter
- Millivolt pilot system does not require power
- Door included
- Gas Zircon comes with a support box. 6” tall standard box, is good up to a 3/12 pitch. Let us know if you need a taller box.
- Limited five-year warranty
-
Malm Warranty does not cover if the fireplace is used outdoors or in outdoor exposure
chimney pipe is included on all sizes for a 8' ceiling - we can get more Chimney pipe on request. There are two 3” flex pipe that run up the inside of the malm 8” pipe
The 30" uses a 7", The 34" uses a 8", the 38" uses a 9" flue pipe (includes adaptor to 10" pipe)

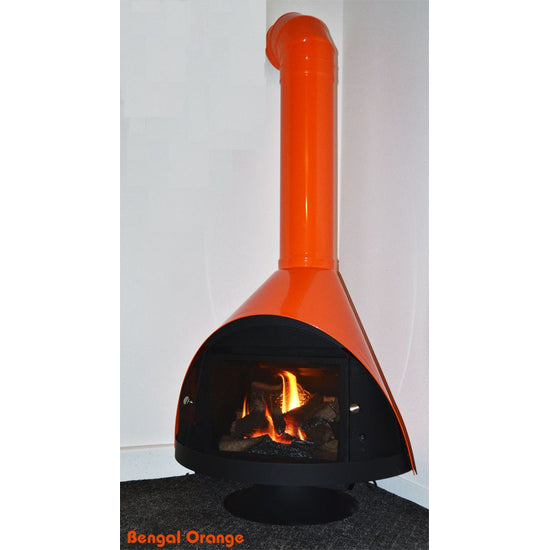

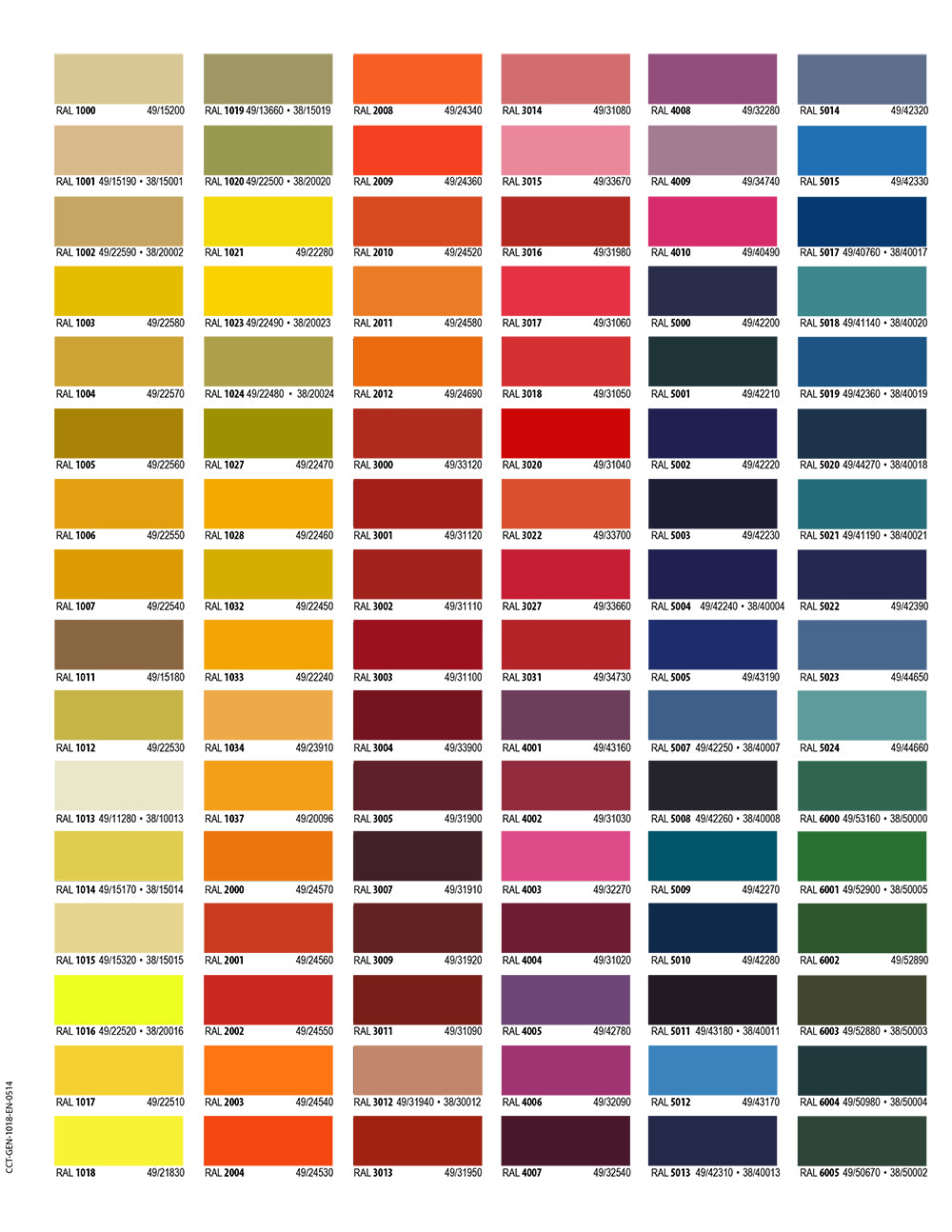

Some metallic or textured might have an additional cost. Powder coat is for gas units only. Powder Coat Allows A LOT of Color Options so you can get the POP YOU WANT out of your living room. List of powder coat options here.
Powder coat & porcelain colors other than black or white are considered custom. Cancelation fees and return restrictions apply.
Options

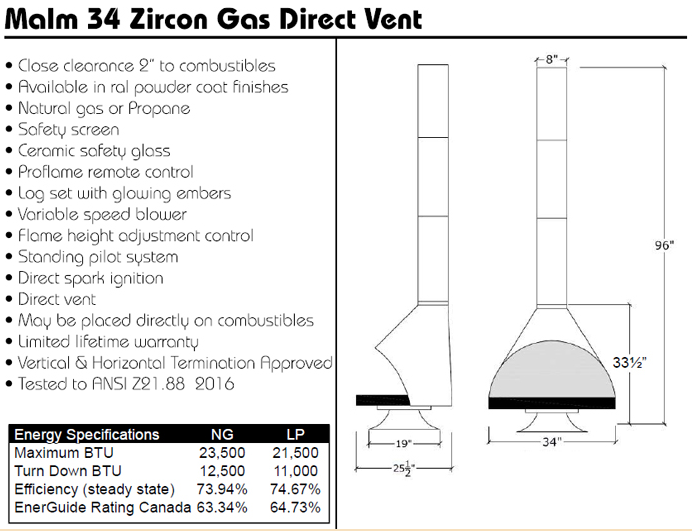

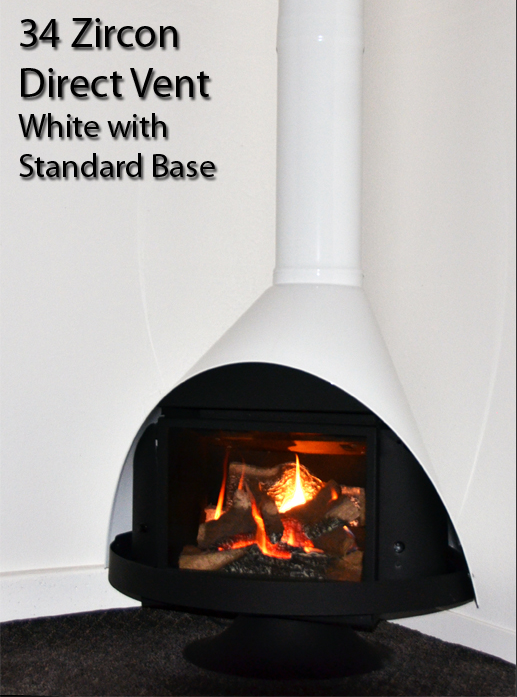

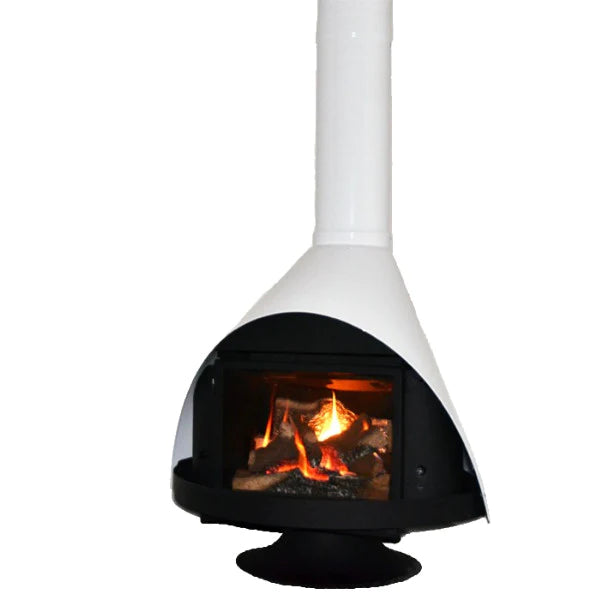

Gas Direct Vent Malm 34" Zircon Cone Fireplace features:
- Max 23,500 BTU input and 21,500 Propane
- ~74% Efficiency, will heat 1,200-1,400 square feet
- the Regency L234 is the gas unit used to power our Malm Zircon Gas Fireplace
- Blower Fan INCLUDED on Direct Vent models

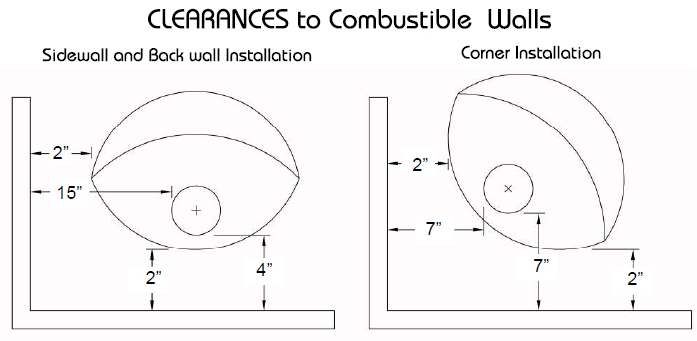

- Close 2" clearance to combustibles
- Requires 8" gas direct vent
- Vent size for instake 2" or 3"
- Includes matching pipe to 8' ceiling height
- Ceramic Safety Glass
- Proflame Remote Control
- Standing pilot system
- Direct spark ignition
- Variable speed blower
- Flame height adjustment control
- Choice of natural or LP gas
- Ceramic fiber logs with realistic glowing embers
- Limited lifetime warranty
- Can be placed directly on carpet or wood floors
46DVA-VCH High Wind Cap 46DVA-GK 3" Co-linear Adaptor with flashing We recommend using the Simpson Dura-Vent System 46DVA-GK adapter and 46DVA-VCH high-wind cap. The Air Intake pipe must be attached to the inlet air collar of the termination cap. We recommend this Flue pipe setup for your Direct Vent Malm 46DVA-CL33H
Gas Supply Info
Min. Supply Pressure (in. wc/kPa): 5” (1.25 kpa) 12” WC (2.99 kpa) Low Setting Manifold Pressure (in. wc/kPa): 1.1” WC (0.27 kpa) 2.9” WC (0.72 kpa) Max. Manifold Pressure (in. wc/kPa): 3.8” WC (0.95 kpa) 11” WC (2.74 kpa) Orifice Size: 42 DMS 54 DMS Minimum Input: 12,500 Btu/h (6.89 kW) 11,000 Btu/h (6.30 kW) Maximum Input: 23,500 Btu/h (3.66 kW) 21,500 Btu/h (3.22 kW)

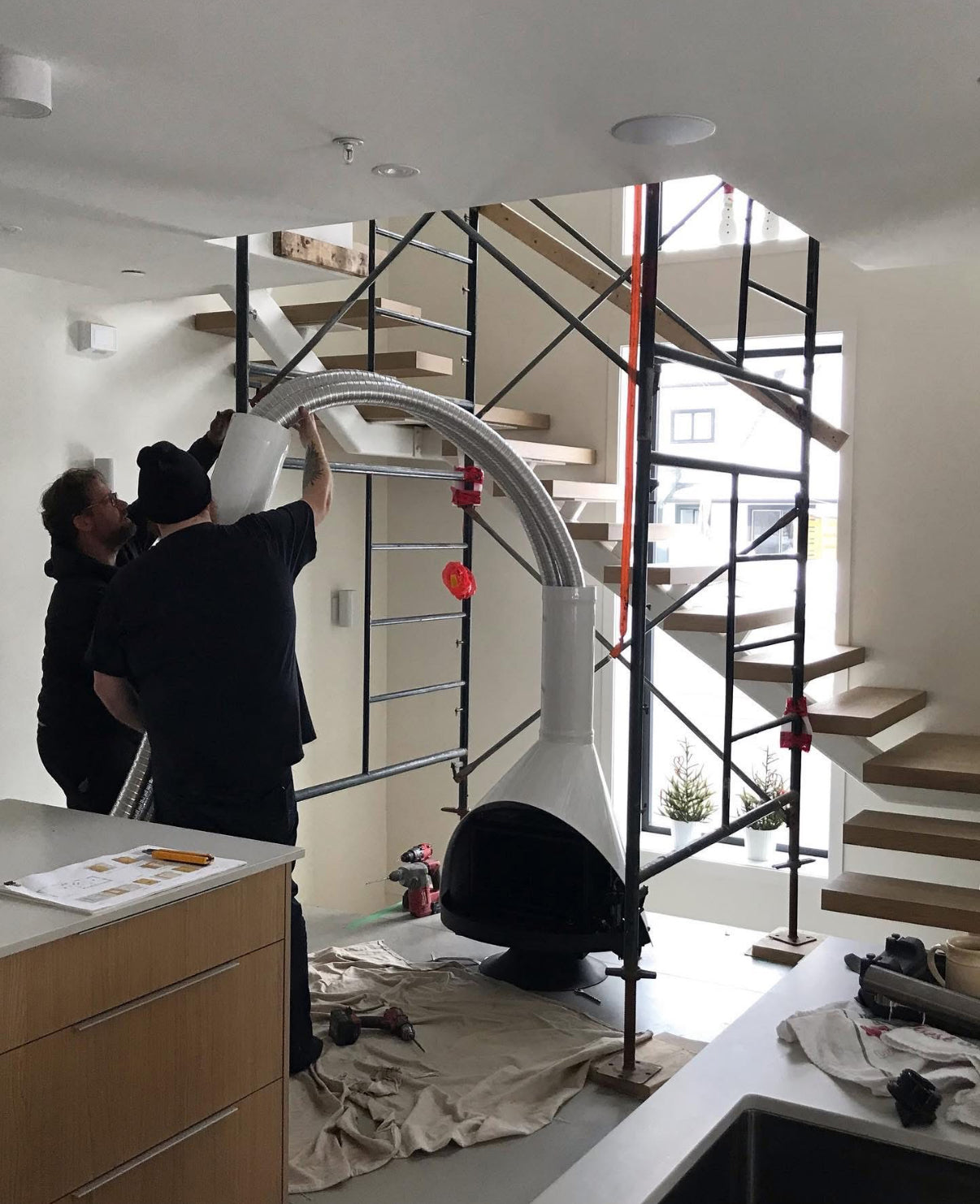

The direct vent Malm unit has a sealed combustion firebox. There are two 3” flex pipe that run up the inside of the malm 8” pipe. If you go to our website and click on the PDF there are 2 manuals. 1 for the malm unit and 1 for the Regency gas insert used. We show it on our page 11 and page 12 on the Regency manual. That will show you how and why the 3” flex is used. If you look on our manual page 4 will show you the support box and how the two 3” flex gets connected. From the box up we use direct vent pipe.
We can do powder coat also colors are here

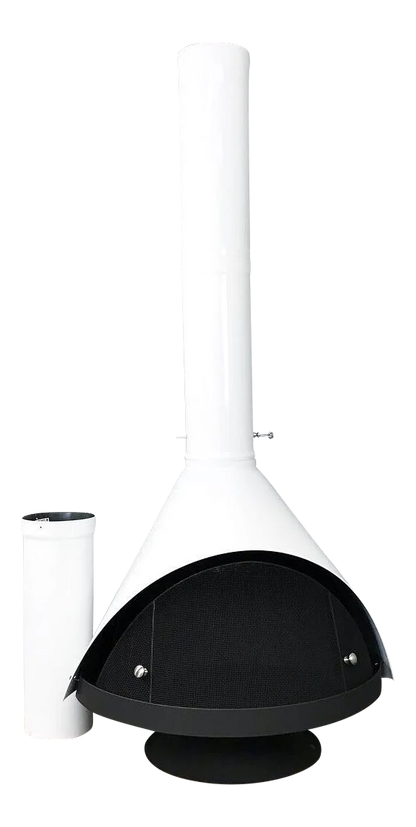

Modern in design, the Zircon Cone Fireplace by Malm radiates warmth and cheer into any room.
Located in Sonoma County, California, Malm started as a sheet metal manufacturer in the 1950s, and some of the original employees dabbled in making fireplaces on the weekends. From weekend hobby to full-fledged business, Malm was one of the original manufacturers of freestanding fireplaces and is the only one still in existence today. Since the mid-20th century these fireplaces have been used in iconic modern spaces worldwide.
The advantage of a freestanding fireplace is that it heats up and radiates more efficiently. And unlike traditional wood-burning stoves, the Zircon gives you a clear view of the fire from a variety of angles.

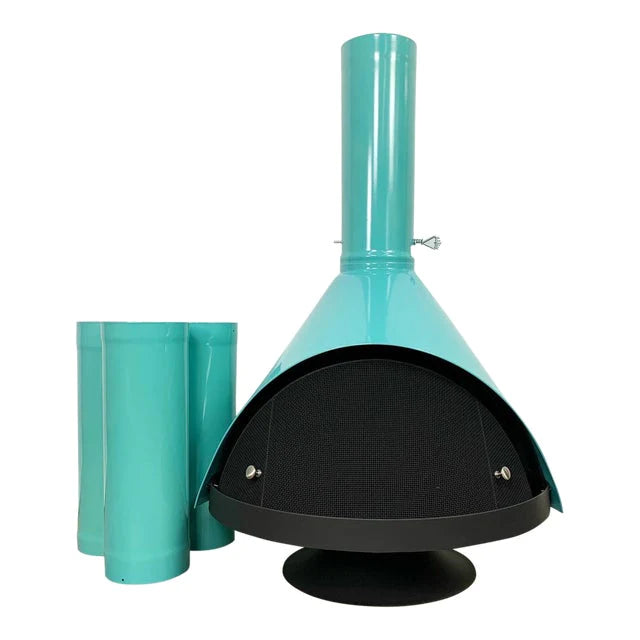

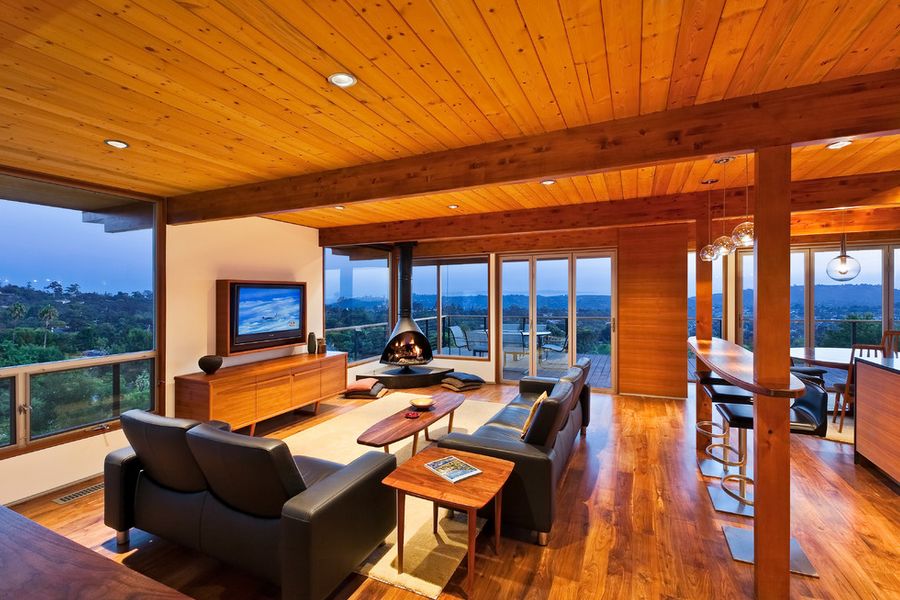

Woodburning units are available in three sizes: 30 inch, 34 inch, and 38 inch. Gas units are only available in the 34 inch size.
If you would like to see the other option for gas here is the Gas B-Vent Malm 34" Zircon Cone Decorative Fireplace the B vent uses are from the Room to fuel the fire.

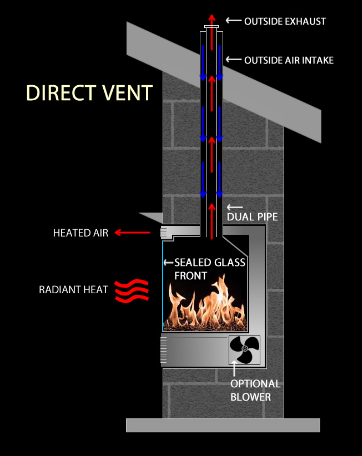

Direct vent uses outside air to fuel the fire - the the Direct vent is a completely enclosed unit with air titght glass and two 3" air hoses inside the 8" flue pipe.
Install instructions for the direct vent
the Heating unit in this Malm is the Liberty L234 Gas Insert by Regency - Included with remote here is the insert Info

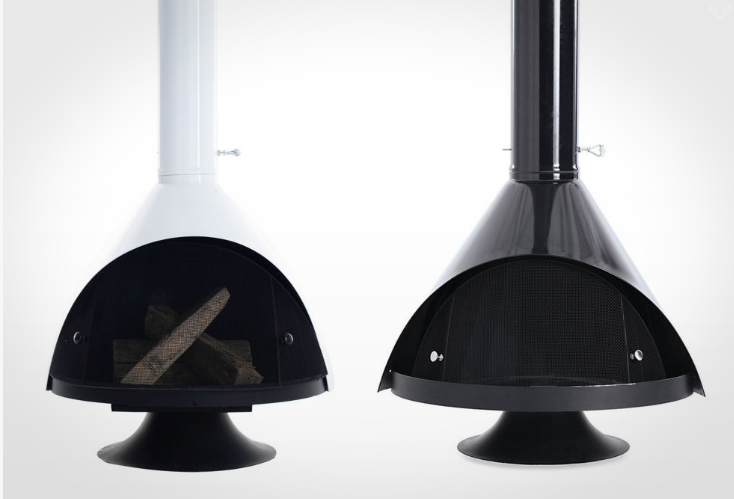

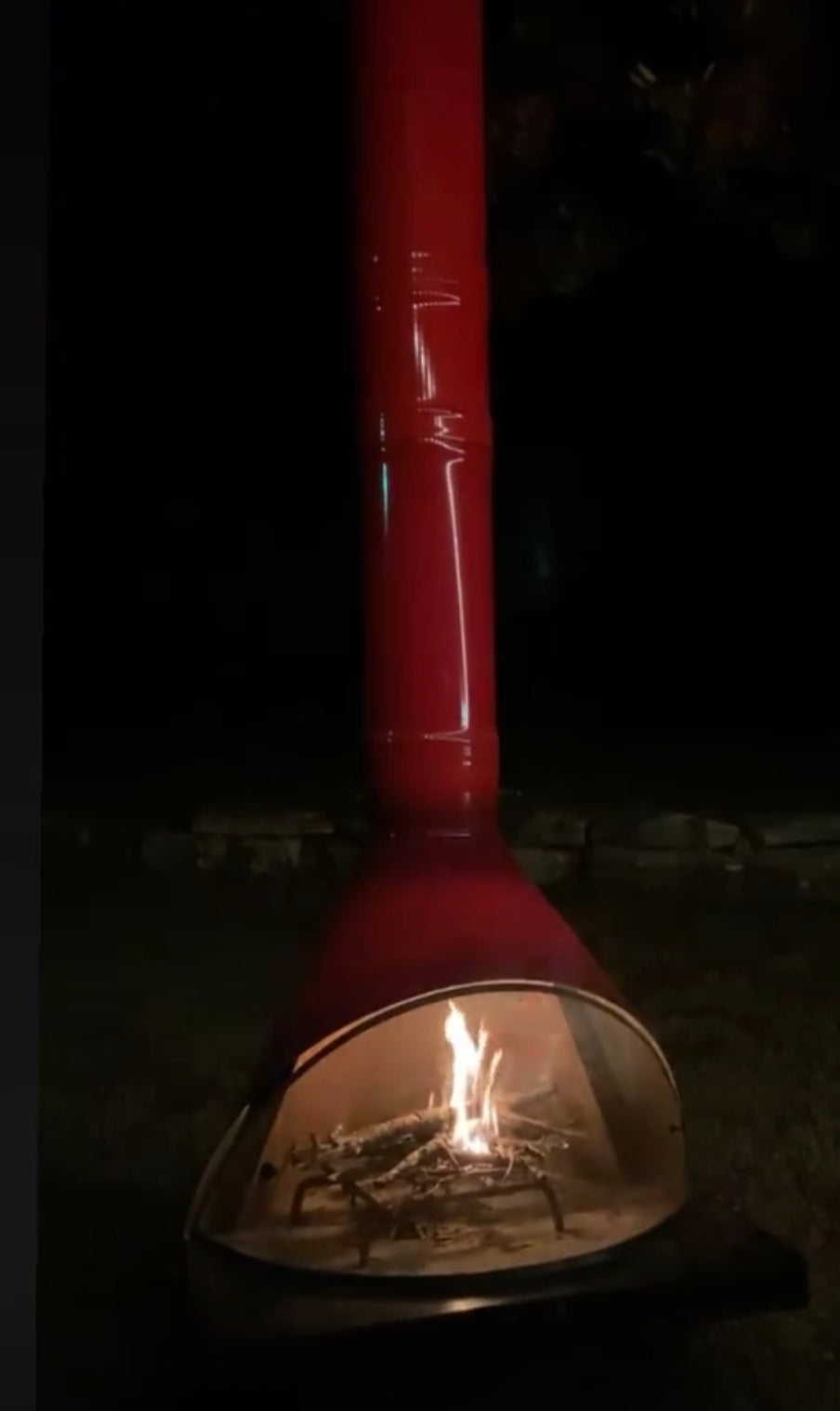

Wood burning units are available in colored porcelain or matte black, with a matte black base. All other units are available in powder coat colors or matte black, with the standard matte black base or optional matching colored powder coated base.

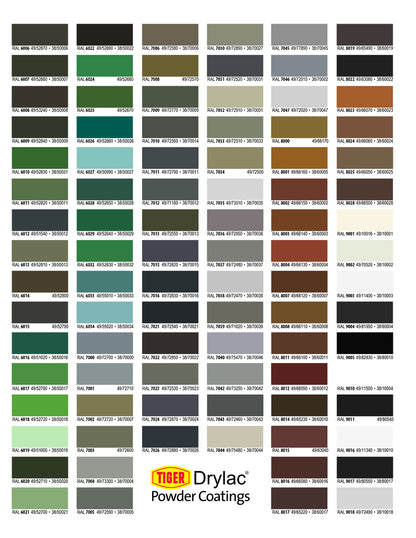

To select one of the additional available powder coat colors, please view the swatch link below, select a random powder coat option, and then note the RAL number of the color you would actually like in the comments box when placing your order. Powder coating is not available on wood-burning models.
About Malm Fireplaces
Malm began making fireplaces in 1960. Malm fireplaces are designed and manufactured in California's Sonoma County near the famed wine country. Modern or traditional designs are available, designed with solid craftsmanship and quality materials.
Our freestanding fireplaces are perfect for today's busy lifestyles. Traditional masonry brick fireplaces take hours to heat the mass of bricks and waste much of the heat. Malm fireplaces heat up rapidly and radiate heat efficiently in all directions. Unlike traditional wood-burning fireplaces, our fireplaces allow you a clear view of your fire from any angle and are available in a range of designer colors.

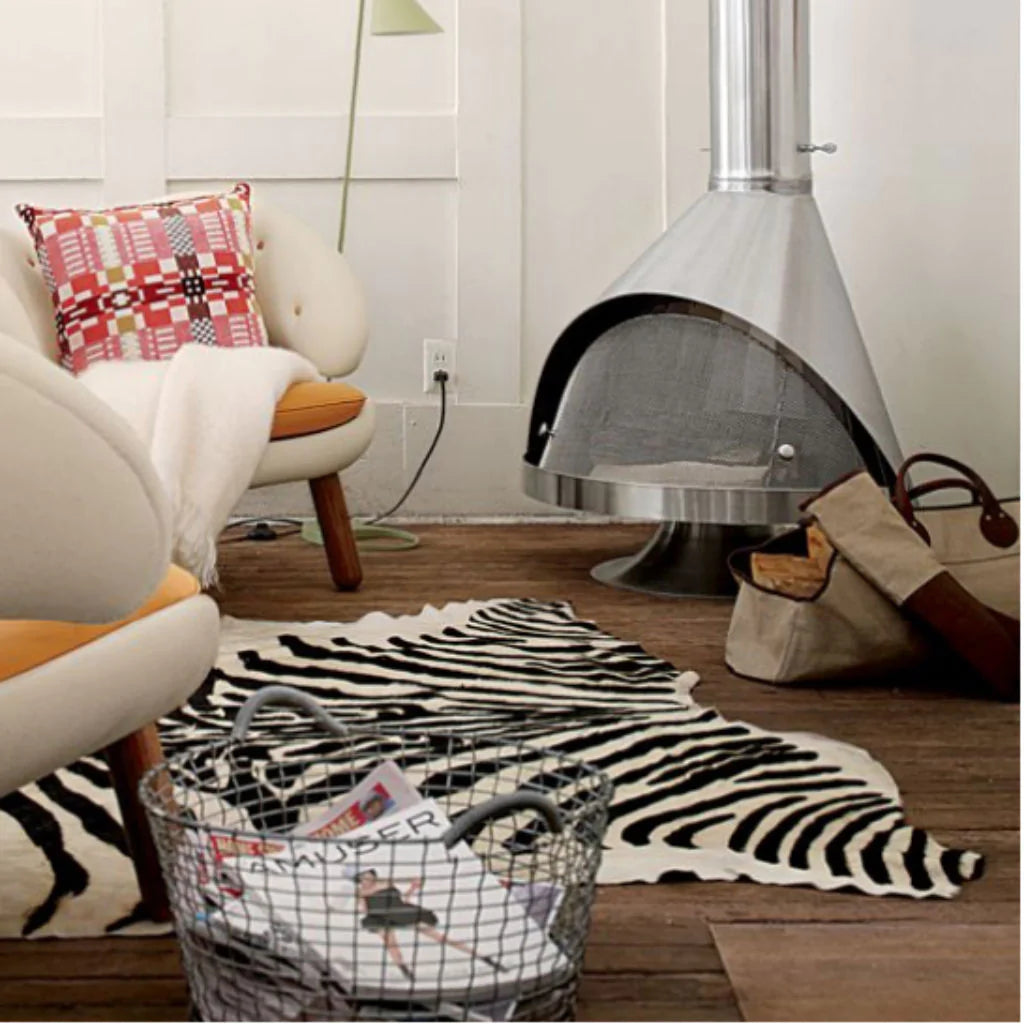

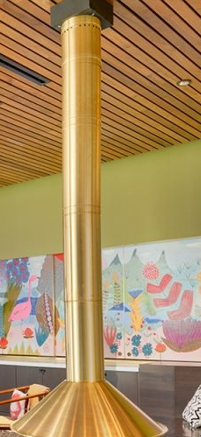

Malm's selection of architect-designed fireplaces is available in a variety of porcelain colors, brass, stainless, nickel, copper-plated, or matte black finish.
Malm also designs and creates custom fireplaces. Designs include larger size models of the standard units to large units constructed with exotic metal finishes and glass.

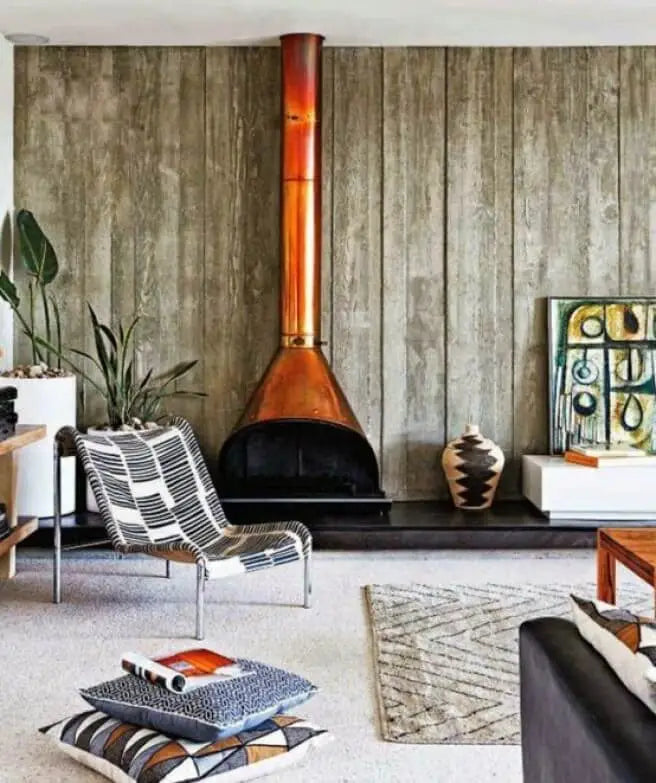

Also available for this High Sierras fireplace available in Solid Copper, Nickle, stainless steel, or other specialty finishes. Contact us for more information. Call or email Brad at Smokey Mountain Fireplaces for pricing 541.678.3574
This item is currently not in stock, but available to order. We want to let you know in plenty of advances that we are currently experiencing longer than normal lead times Right now these made to order fireplaces are 6-7 months out. We will do everything we can to make sure your purchase arrives as quickly as possible. Do you have a deadline? Call Smokey Mountain Fireplaces now 541.678.3574 to discuss lead times so we can help you decide if this item will arrive in time or what alternatives might be available to you at a faster rate. We apologize for the current long lead times that so many businesses are currently experiencing!
This appliance has been tested in accordance with National Safety Standards and has been certified by Lab Test for installation and operation as described in this manual. Please read all the instructions before beginning your installation. Check with your local building code agency to ensure compliance with local codes. In the absence of local codes the installation must comply with National Fuel Gas Code ANSI Z22.3.1. In Canada, current CAN/CGA-B149.1 and B149.2 installation codes.

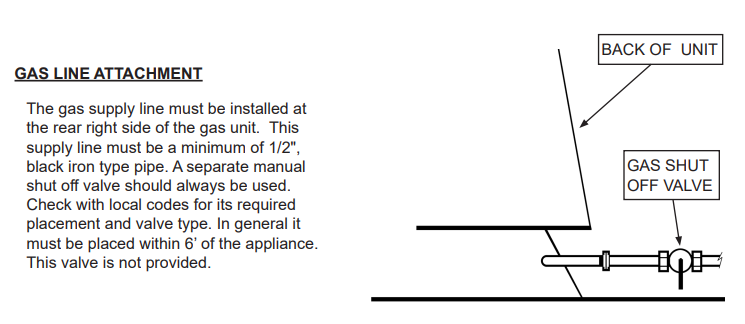

GAS SUPPLY For use with natural gas or propane gas, depending on which option you have ordered. The minimum inlet gas supply pressure for the purpose of input adjustment: Natural = Minimum 5.5" Water Column (1.4 kPa) Maximum 10.5" Water Column (2.6 kPa) Propane = Minimum 11" Water Column (2.75 kPa) Maximum 13" Water Column (3.25 kPa)

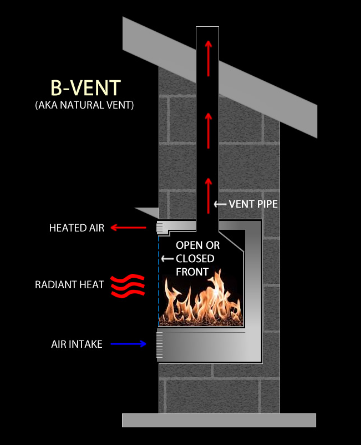

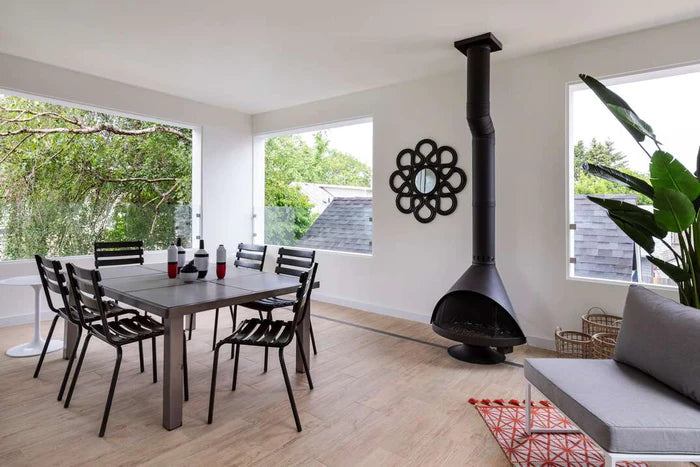

What is a B Vent Gas Unit? - B-vent gas fireplaces draw interior air from the area around your fireplace to help fuel combustion inside the appliance. Because hot flue gases are buoyant, the exhaust air moves naturally through its own pipe system, upward through your roof, where it is carried out the chimney and safely away from your home. if you want a Malm Direct vent Gas Unit please see our unit on Smokey Mountain Fireplaces
Return policy for MALM Fireplaces - No Returns on MALM High Sierra made to order fireplaces. questions please call or email Brad at Smokey Mountain 541.678.3574

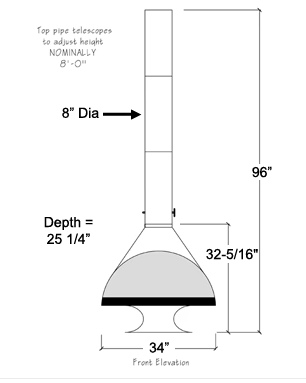

Malm Zircon Cone Fireplace Dimensions:
- 34 inch unit: 26"D x 32.3" high at top of body
Lead time: All Malm fireplaces are made to order and generally take 4-6 months for matte black, 4-10 months for powder coat and porcelain colors. Copper can take longer depending on availability. Please Note these Malm MCM Fireplaces are 100% hand made in America and we pride ourselves in quality, which is why they are made to order
Return policy for MALM Fireplaces - No Returns on MALM Zircon High Sierra made to order fireplaces. questions please call or email Servicesmokeymtn@gmail.com Brad at Smokey Mountain 541.678.3574 Once the order has been placed we start the process of manufacturing, it takes 6 months. if you need to cancel before it has been made, we can discuss the possibility of a refund with a 10% fee, only if we confirm the item has not started in manufacturing.
