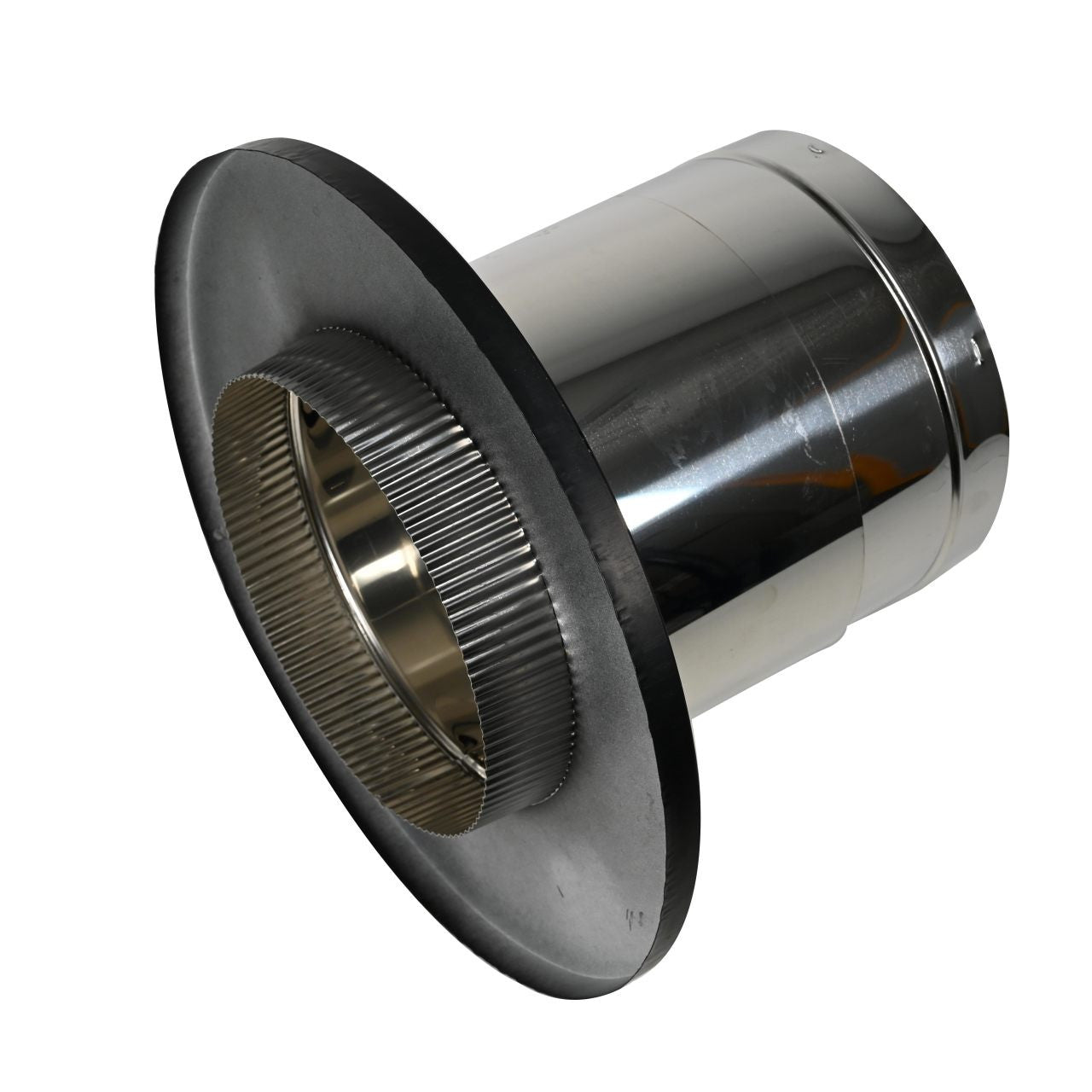

DuraVent DVL 8DLR-MTSC1 8” Masonry Thimble w/ Slip Connector

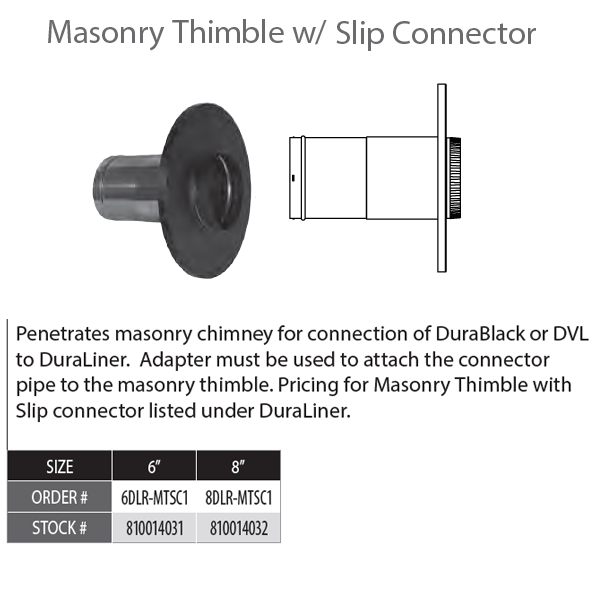

DVL 8DLR-MTSC1 8″ Double-Wall Black Masonry Thimble w/Slip Connector. Penetrates masonry chimney for connection of DuraBlack or DVL to DuraLiner. Adapter must be used to attach the connector pipe to the masonry thimble.
Designed for installation with minimum clearance to combustibles (6” to walls, 8” from top of horizontal run to ceiling). Available in 6”, 7”, and 8” diameters. Subtract ¾” for installed length. Constructed with a stainless steel inner wall.
DVL’s double-wall, air-insulated design reduces clearances to combustibles from 18” to 6”, the closest clearance to a wall of any connector pipe. DVL improves stove performance by maintaining high flue gas temperatures for a strong, steady draft. Because the inner wall is stainless steel the flue heats up faster, stays hot longer, minimizes the formation of creosote, and has the same life expectancy as the chimney. Adjustable lengths eliminate the need for cutting or crimping. Required for Manufactured Home installations. See appliance manufacturer’s installation instructions.
Features:
- Limited Lifetime Warranty
- UL Listed c-UL-us listed to ULC S641 (MH14089).
- Materials and Construction
.016” stainless steel inner wall.
.018” galvanized outer, painted black. - Clearances 6” clearance to walls. 8” clearance to
ceilings, including cathedral ceilings.
