DuraVent - DirectVent Pro Horizontal Termination Kit Trap Top
DuraVent - DirectVent Pro Horizontal Termination Kit Trap Top
Introducing the DuraVent DirectVent Pro Horizontal Termination Kit Trap Top, the ultimate solution for safely and efficiently venting your gas appliances. Designed with precision and built to last, this termination kit offers unmatched performance and reliability.
The DirectVent Pro Horizontal Termination Kit Trap Top is specifically engineered for horizontal venting applications, allowing you to effortlessly direct exhaust gases outside while maintaining optimal indoor air quality. It is the ideal choice for venting gas fireplaces, stoves, and other compatible appliances.
Crafted with superior quality materials, this termination kit ensures long-lasting durability and resistance to the harshest weather conditions. The robust construction guarantees excellent performance even in extreme temperatures, providing you with peace of mind and reliable functionality throughout the year.
One of the standout features of this termination kit is the innovative trap top design. It efficiently traps rainwater and prevents it from entering the vent system, ensuring trouble-free operation and preserving the longevity of your appliance. This unique feature eliminates the need for additional rain caps or covers, saving you time and money on extra accessories.

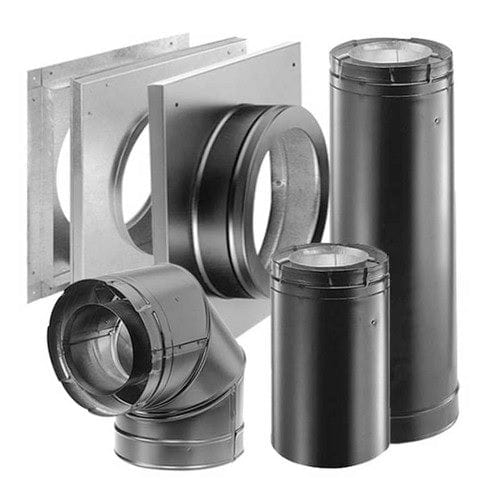

Installation is a breeze with the DirectVent Pro Horizontal Termination Kit Trap Top. It comes complete with all the necessary components, including a termination cap, horizontal cap, and wall thimble. The kit also includes detailed instructions, making it easy for both professional installers and DIY enthusiasts to set up the venting system quickly and correctly.
Safety is a top priority, and the DirectVent Pro Horizontal Termination Kit Trap Top is engineered to meet or exceed all safety standards. It features a secure locking mechanism that ensures a tight seal, preventing any gas leakage and providing optimal ventilation performance. This gives you the confidence and assurance that your gas appliance is operating safely and efficiently.
Upgrade your gas appliance venting system with the DuraVent DirectVent Pro Horizontal Termination Kit Trap Top. Its superior design, exceptional durability, and innovative features make it the perfect choice for hassle-free and reliable venting. Experience the peace of mind and performance you deserve with this top-of-the-line termination kit.
Typical Installations(Refer this if required):
Refer to our Typical Venting Installation drawings to select the appropriate component parts for your installation.
Top
Planning Your Installation:
| 1 | For vertical gas stove installations, measure the height from the stove outlet to the ceiling to determine the length of black pipe required. Select a ceiling support/wall thimble cover or a cathedral ceiling support box. |
| 2 | To determine the length of galvanized pipe required, measure the ceiling thickness and the vertical rise in an attic or second story. Firestops are required at each floor level beyond the first floor ceiling support/wall thimble cover or cathedral ceiling support box. If an offset is required to avoid obstructions, use a pair of 45° elbows. For proper support, use elbow straps with offsets. Use wall straps for long vertical runs. Attic Insulation Shield is required in attic. |
| 3 | Measure the roof pitch. Select the proper flashing and storm collar. Determine the minimum height above the roof. |
| 4 | For horizontal installations, check the appliance manufacturer’s instructions for minimum rise and maximum horizontal run. A snorkel termination may be used if height restrictions prevent adequate rise above the appliance. Select the appropriate Horizontal Termination Cap (see appliance manufacturer installation instructions). To protect vinyl siding, select vinyl siding standoff. Check appliance manufacturer’s instructions for wall thimble and firestop requirements. |
Design Recommendations
- The following design recommendations are general guideline to assist in the design and selection of venting components for your installation. Always follow DuraVent Installation instructions enclosed with the cap or support box before installing your chimney system. Installation instructions can be viewed online at www.duravent.com, under Catalogs and Instructions. Important: Check the manufacturer’s rating plate and instruction manual to confirm that the DuraVent direct vent system is approved for use on the brand name appliance you have selected.
- The inner and outer pipe diameters should match the outlet size of the appliance.
- Check the appliance manufacturer’s installation instructions to confirm which types of vent configurations are permitted (i.e. horizontal, vertical, chimney reline, etc.). Also, check for any venting restrictions such as maximum horizontal run, minimum and maximum vertical rise, maximum offset, etc.
- Be fire safe! Maintain at least the minimum clearances (air-space) between the vent pipe and nearby combustibles, as specified in the appliance manufacturer’s installation instructions. Use proper support and bracing. Follow local building codes and have your venting system inspected.
