DuraVent is the premier company in the venting industry. With a broad range of engineered venting products, DuraVent has earned its reputation as the industry leader by offering innovative, safe, and professional products for the HVAC and Hearth markets.

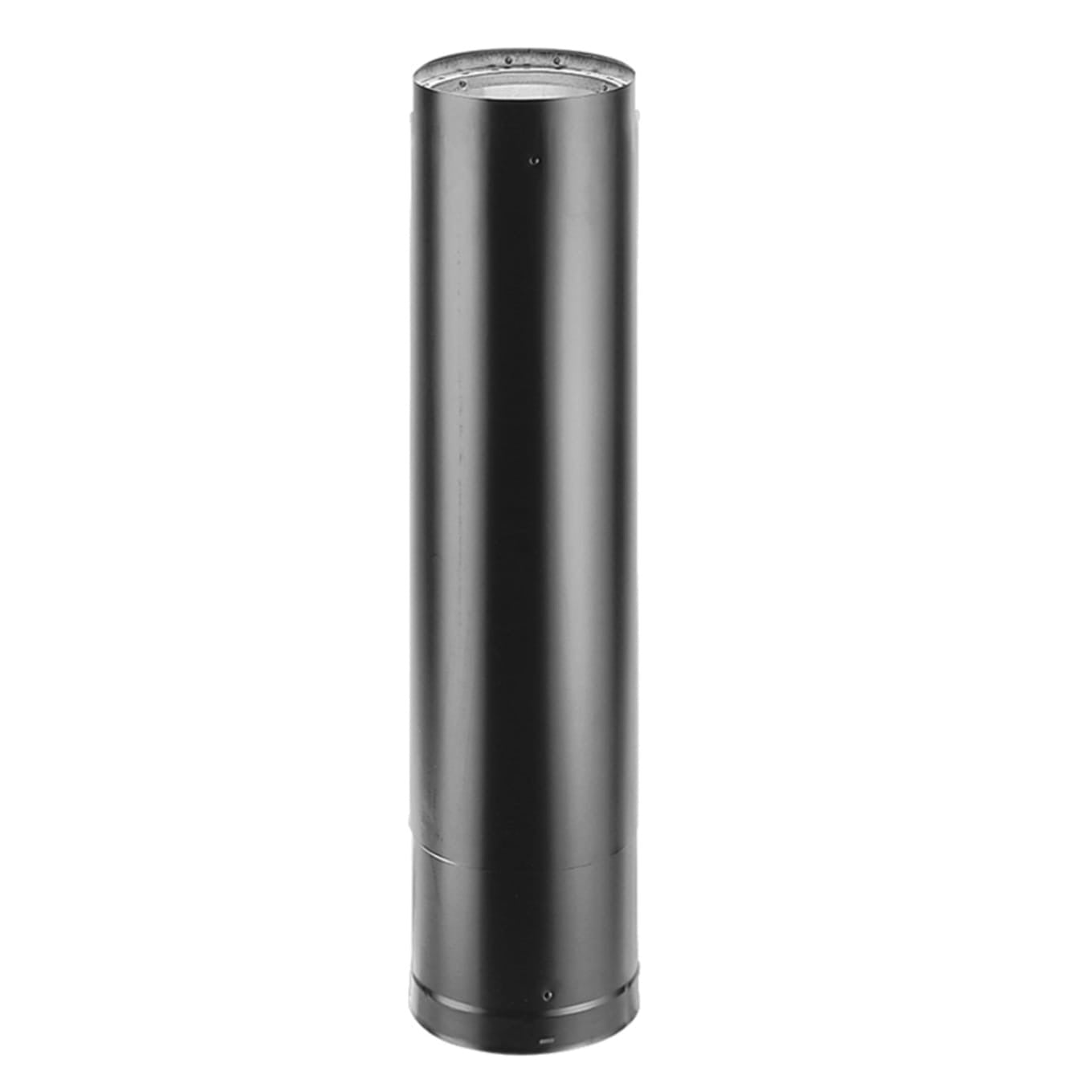

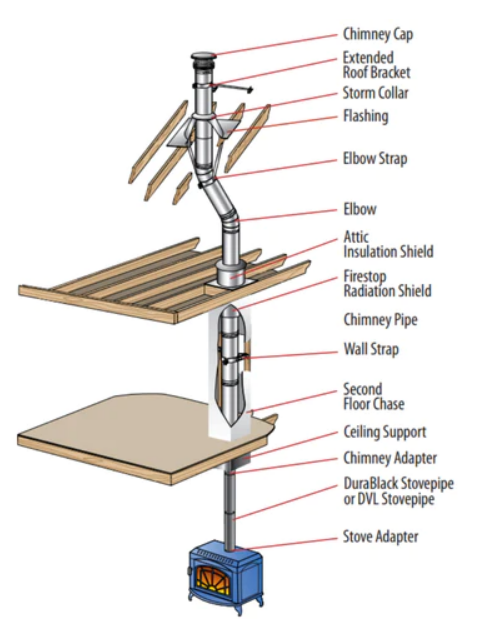

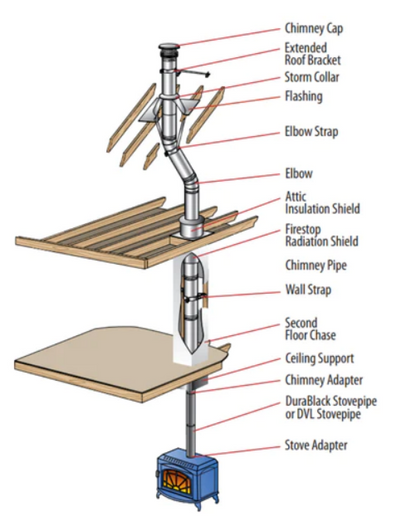

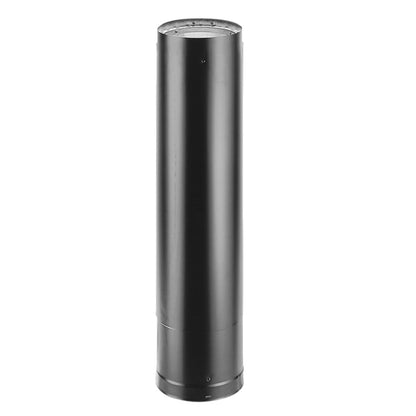

DVL double-wall stovepipe completes the venting system when used with one of DuraVent’s chimney products, such as DuraTech, DuraTech Canada, DuraPlus, or DuraTech Premium.
DVL’s double-wall, the air-insulated design reduces clearances to combustibles from 18” to 6”, the closest clearance to a wall of any connector pipe. DVL improves stove performance by maintaining high flue gas temperatures for a strong, steady draft. Because the inner wall is stainless steel the flue heats up faster, stays hot longer, minimizes creosote formation, and has the same life expectancy as the chimney. Adjustable lengths eliminate the need for cutting or crimping.
Features
Diameters 6", 7", and 8"
016” stainless steel inner wall.
018” galvanized outer, painted black
6″ clearance to walls.
8” clearance to ceilings, including cathedral ceilings.
Use for a two-piece installation from stove to ceiling support box or finishing collar.
No cutting is required.

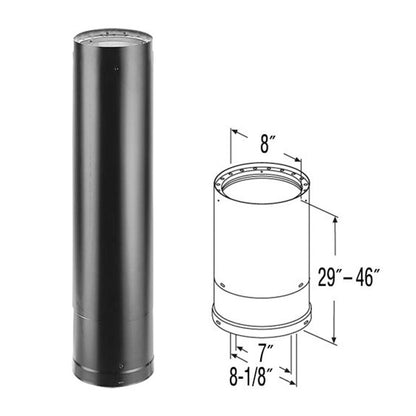

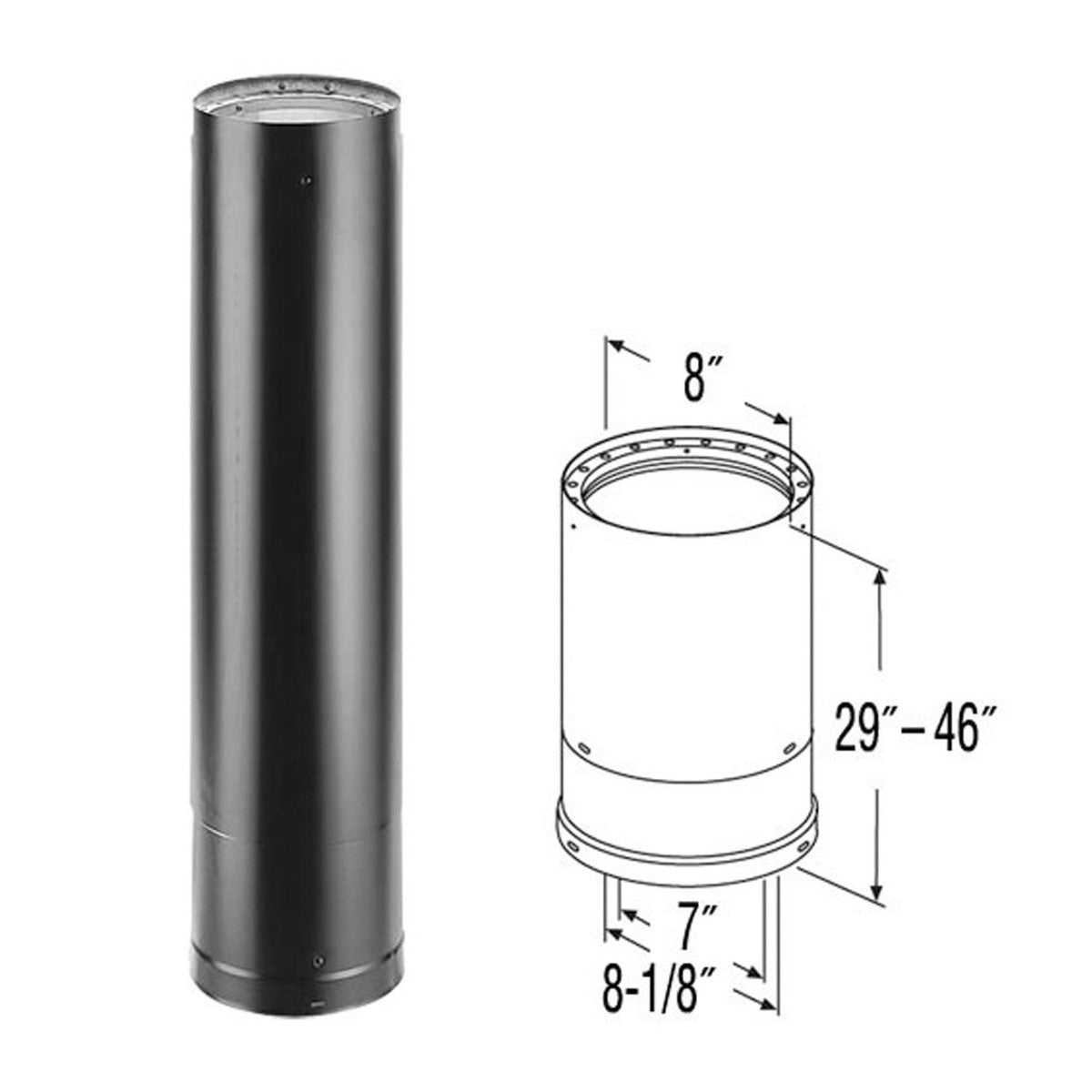

Specifications
Model
Diameter
Dimensions
6DVL-46TA
6" ID
7" (A) x 6" (B) x 7.125" (C)
7DVL-46TA
7" ID
8" (A) x 7" (B) x 8.125" (C)
8DVL-46TA
8" ID
9" (A) x 8" (B) x 9.125" (C)
Application
Double-wall interior stovepipe for connecting woodstoves to manufactured chimney
