DuraVent 6" Inner Diameter - DuraTech Class A Chimney Pipe - Double Wall - Flat Roof Flashing 6DT-FF
DuraTech Collection 6" Class A Chimney Pipe Flat Roof Flashing
Warranty Notice: M&G DuraVent warranty applies to this professional grade product only when installed by a trained professional installer.

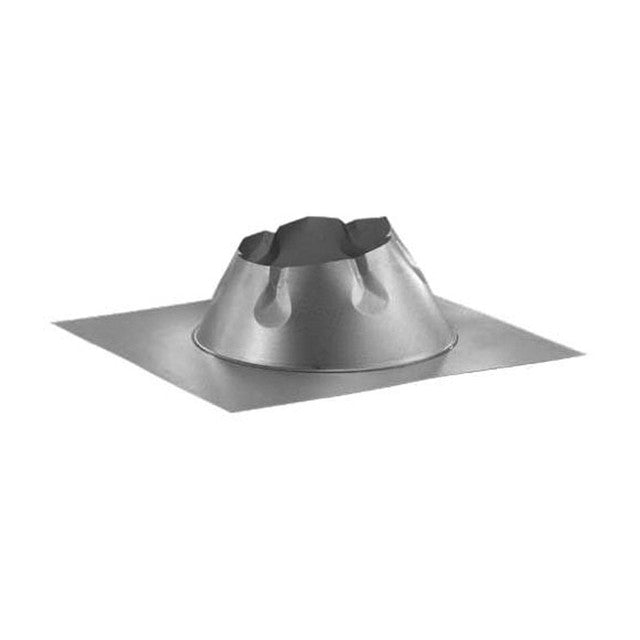

The DuraTech 6" Class A Chimney Pipe Flat Roof Flashing Roof flashing is used to weather proof the penetration of chimney pipe through the roof. Storm Collar required. Select roof flashing based on pitch of roof. For example, a 6/12 pitch has a vertical rise of 6” over a horizontal distance of 12”. Made of galvalume. 6”-8” available with large base.
Features:
- For Flat Roof

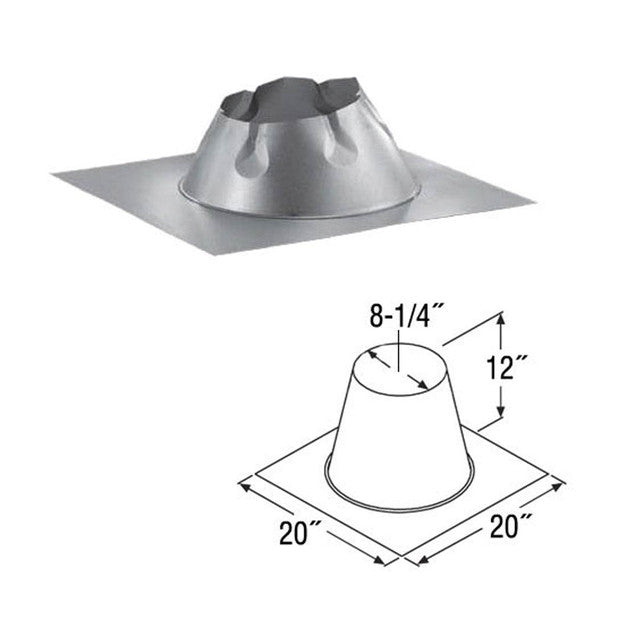

- Inner Diameter: 6"
- Outer Diameter: 8-1/4"
- Height: 12"
- Base Dimensions: 20-11/16" x 20-11/16"
- Storm Collar is Required
- UL Listed
With a Thermal Tech blanket insulation encased between dual walls, DuraTech offers the optimum in safety and performance. It keeps the outer wall of the chimney cool, while ensuring high flue gas temperatures for optimum draft performance. 5”-8” DuraTech is a double-wall, all-fuel chimney system for use withwood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces thatare factory-built.
Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting. The company's research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.
Dimensions and Measurements
|
Height
|
8 in. |
|
Inner Pipe Gauge
|
25 |
|
Length
|
20.6875 in. |
|
Outer Pipe Gauge
|
26 |
|
Pipe Inside Diameter
|
6 in. |
|
Product Weight
|
4 lbs. |
|
Vent Pipe Size
|
6 |
|
Width
|
20.6875 in. |
Characteristics and Features
|
Configuration
|
Flashing |
|
Inner Pipe Material
|
430 Stainless Steel |
|
Insulation Type
|
Thermal Tech |
|
Outer Pipe Material
|
Galvalume |
|
Pipe Class
|
Class A |
|
Pipe Shape
|
Round |
Electrical and Operational Information
|
Fuel Type
|
All Fuel, Coal, Gas, Oil, Wood |
Warranty and Product Information
|
Application
|
Appliance, Boiler, Fireplace, Furnace, Ranges, Water Heater, Wood Stove, Zero-Clearance Fireplace |
|
Approved for Commercial Use
|
No |
|
Collection
|
DuraTech |
|
UL Listed
|
Yes |
|
UL Listing Number
|
UL 103 HT, ULC S604 |
