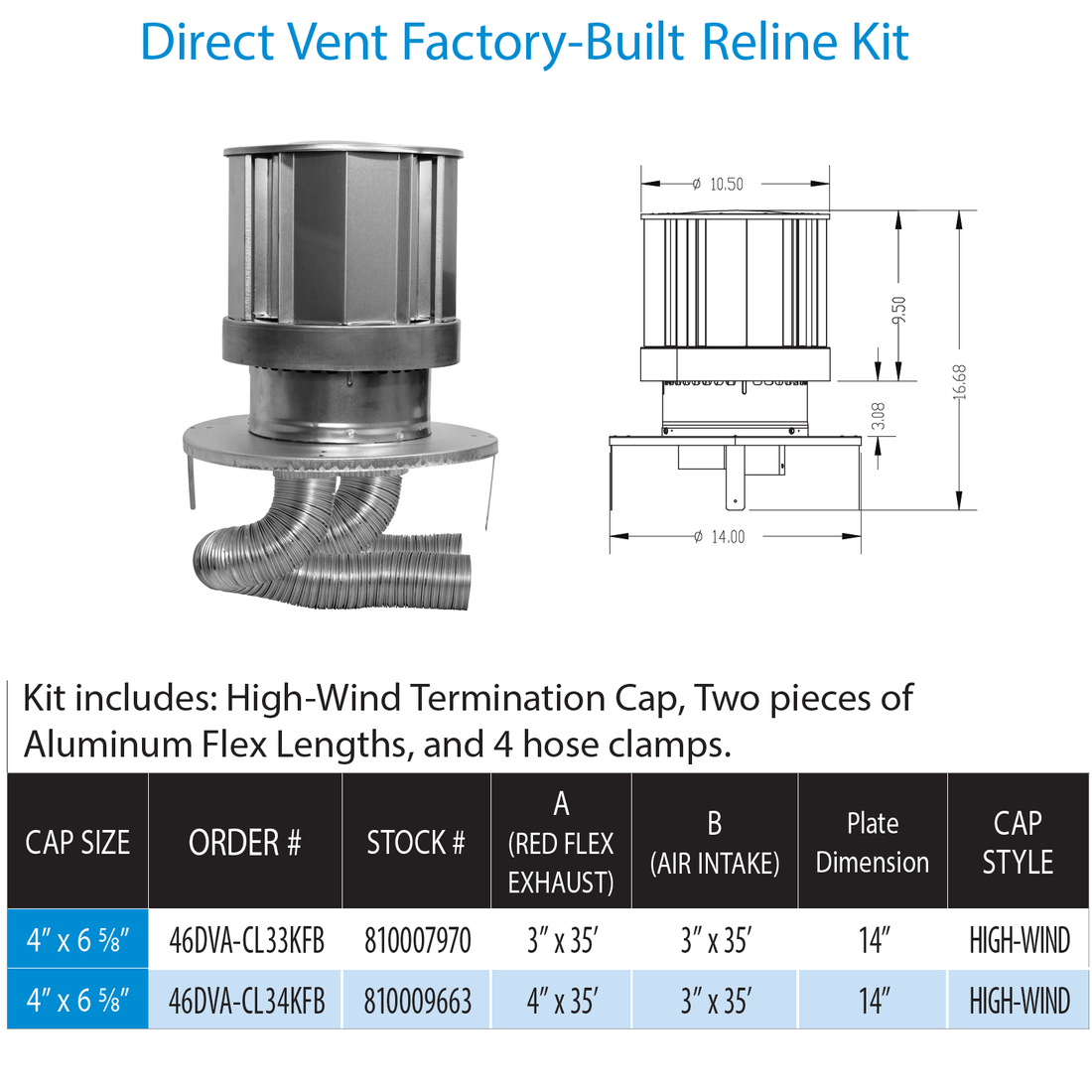

DuraVent 3″x3″ Co-Linear Direct Vent Factory-Built Reline Kit

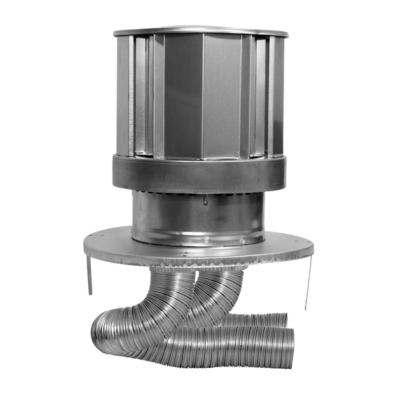

DuraVent 46DVA-CL33KFB 3×3 Co-Linear Direct Vent Factory-Built Reline Kit
DuraVent is the first manufacturer to have a UL-listed relining system for factory-built chimneys. Our co-linear direct vent relining system can be used when installing a direct vent insert into an existing factory-built chimney. When an insert is installed into an existing factory-built chimney or b vent, relining the existing chimney is critical for proper performance and safety.
Note: Plate must be larger than the current pipe or conduit (Bottom Plate Dimension 14″). Fold brackets into existing diameter to secure the high-wind termination cap in place. Flex does not need insulation!!!
Factory-Built Reline Kit includes:
High-Wind Termination Cap
Two pieces of Aluminum Flex Lengths (exhaust marked red) (2) 3”x 35’ Lengths
4 hose clamps
Bottom Plate Dimension 14″
DuraVent 46DVA-CL34KFB DirectVent Pro 3×4 Co-Linear Reline Kit Aluminum
DuraVent is the first manufacturer to have a UL-listed relining system for factory-built chimneys. Our co-linear direct vent relining system can be used when installing a direct vent insert into an existing factory-built chimney. When an insert is installed into an existing factory-built chimney or b vent, relining the existing chimney is critical for proper performance and safety.
Note: Plate must be larger than the current pipe or conduit (Bottom Plate Dimension 14″). Fold brackets into existing diameter to secure the high-wind termination cap in place. Flex does not need insulation!!!
Factory-Built Reline Kit includes:
High-Wind Termination Cap
Two pieces of Aluminum Flex Lengths (exhaust marked red) (1) 3”x 35’ Length, (1) 4”x 35’ Length
4 hose clamps
Bottom Plate Dimension 14″
DuraVent 46DVA-CL34 DirectVent Pro 4 x 6 Termination Kit (includes 3″ and 4″ flex)
Use this DirectVent Pro kits when installing a direct vent co-linear insert into a masonry chimney.
- High-Wind Termination Cap. 4” x 6 5⁄8”
- Flexible pipe lengths may be cut to desired length.
- Flex lengths in green (air intake) and red (exhaust) to help installers locate correct flex at other end of chimney.
- For use with listed fireplace inserts requiring 3”x 4” co-linear direct vent system
- Converts masonry chimney into co-liner direct vent system.
- Kit carton may be shipped via UPS.
Co-Linear Kit with Flex includes: High-Wind Termination Cap; and two pieces of Aluminum Flex lengths – one Red (exhaust) 4” x 30’, and one Green (air intake) 3” x 30’.
