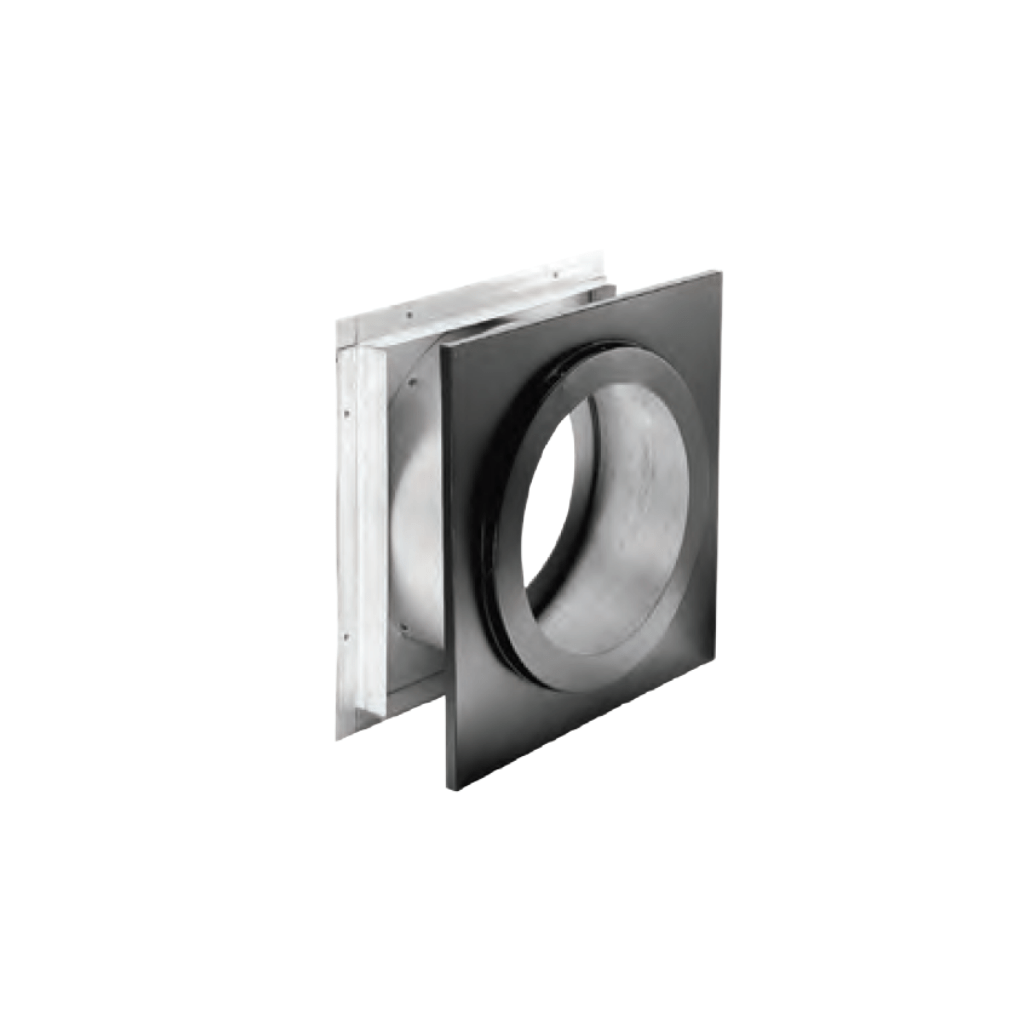

7DT-WT DuraVent DuraTech 7" Diameter Wall Thimble
Adjusts from a minimum of 5 1/2” to a maximum of 9 1/2” wall thickness, and fits between standard wall studs. To accommodate thicker walls, the telescoping pieces can be extended up to 16” with a field-fabricated extension installed.
Interior trim ring painted black. Must be installed with DuraTech chimney pipe horizontally through the wall and extend 6” into the room beyond the interior wall.
6” and 8” stainless steel exterior trim available. - not dimensions are specific per trim

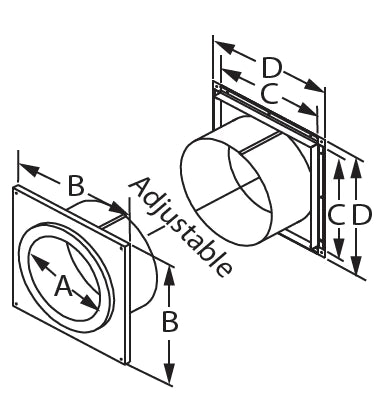

Product Details and Dimensions
| Size | 7” Diameter Wall Thimble |
| Part no. | 7DT-WT |
| A | 9 1⁄8” |
| B | 16” |
| C | 12 7⁄8” |
| D | 15” |
When you go int the wall you will use this Duravent Tee with cap and support bracket this will be switching to DT from the DVL so you also need this adapter
Applications
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
