7DT-IS | 7" DuraVent DuraTech Galvalume Attic Insulation Shield

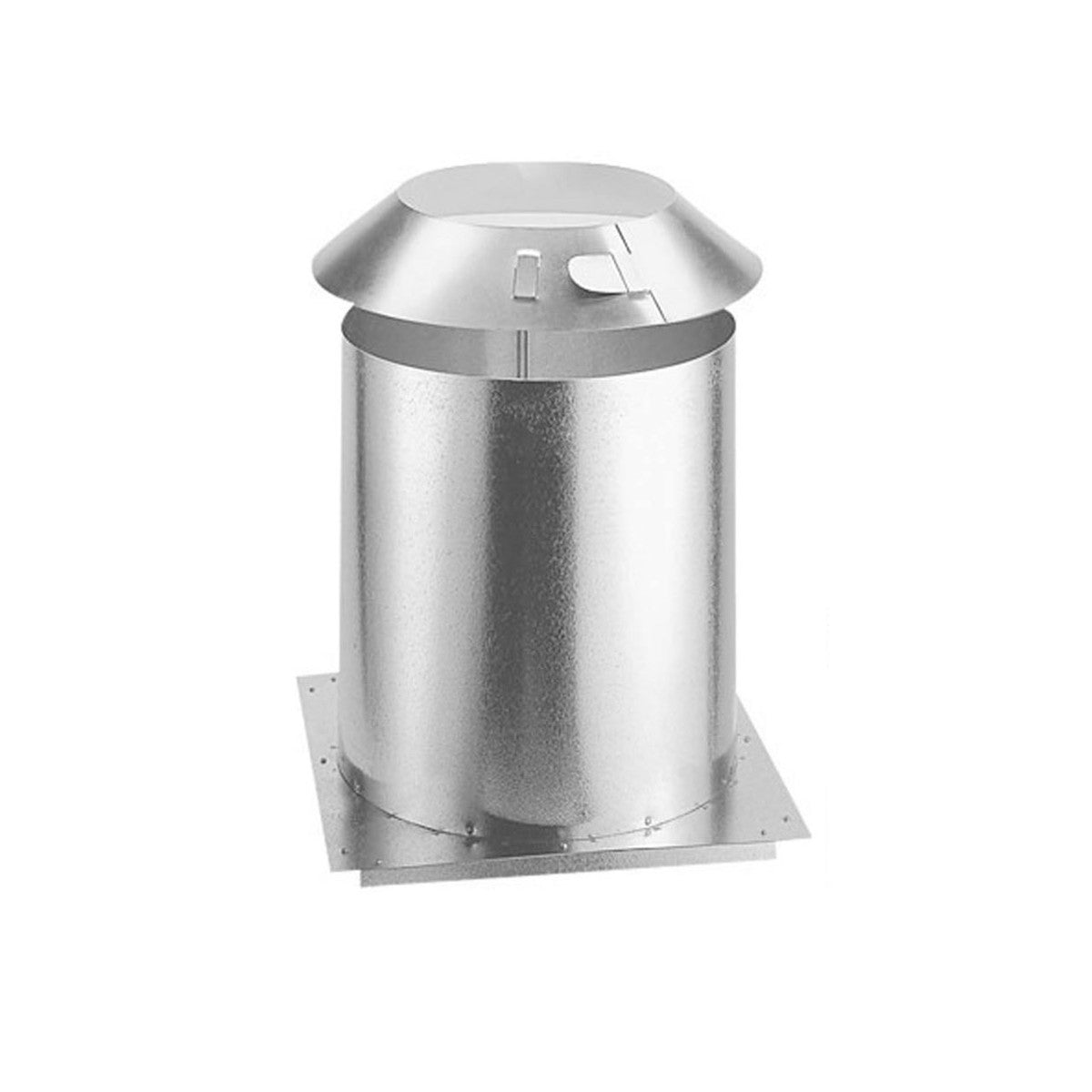

An Attic Insulation Shield is required for installations that pass through an attic to prevent insulation and debris from accumulating near the chimney. The Attic Insulation Shield fits over the Firestop Radiation Shield or a support box and consists of two-parts - a collar and a base. Comes with a mesh sleeve around the top.

All Fuel Chimney PDF

DuraTech is a 1" wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.

This attic insulation shield is required for installations that pass through an attic to prevent insulation and debris from accumulating near the chimney. Fits over firestop radiation shield or a support box. Consists of two parts: a collar and a base.

Additional Information:

With a Thermal Tech blanket insulation encased between duel walls, DuraTech offers superior safety and performance. It keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance. The inner wall is 25% thicker than competitive chimneys, for an extra margin of safety. Designed for normal, continuous operation at 1000 F flue gas temperatures, DuraTech is subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400 F, plus three ten minute chimney fire tests at 2100 F.

• Diameter: 7"
• Construction material: Galvalume
• Clearance: 2"
• Listings: Listed to the UL 103 height standard, UL file #MH7399. Listed to the Canadian S610 standard
• Consists of two parts a collar and a base
