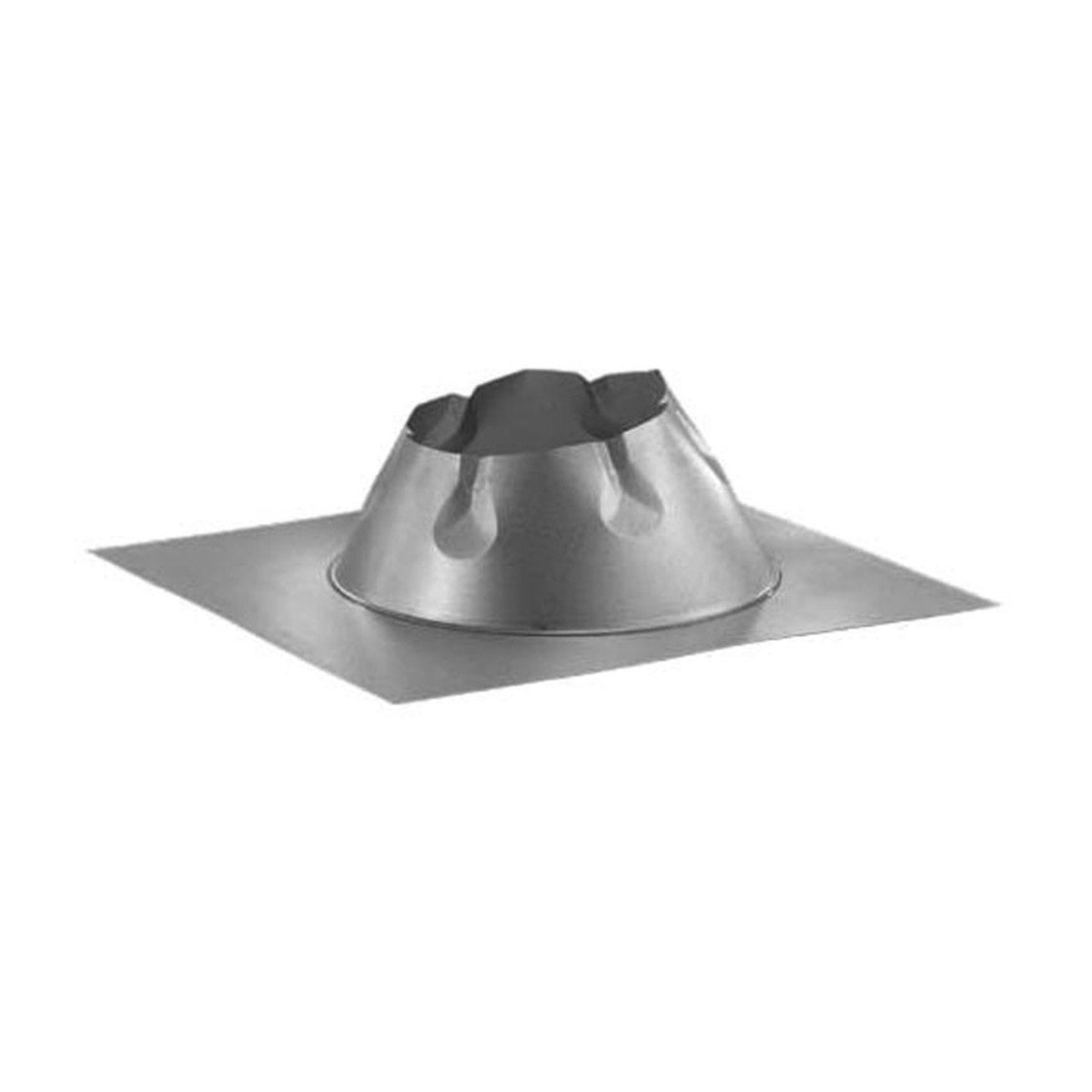

7DT-FF 7" DuraTech Flat Roof Flashing
- Roof Flashing is used to weather proof the penetration of chimney pip through the roof. A storm collar is required (not included). Select the proper roof flashing based on the pitch of the roof. For example, a 6/12 pitch has a vertical rise of 6" over a horizontal distance of 12". DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other...
Roof Flashing is used to weather proof the penetration of chimney pip through the roof. A storm collar is required (not included). Select the proper roof flashing based on the pitch of the roof. For example, a 6/12 pitch has a vertical rise of 6" over a horizontal distance of 12".
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Additional Information:
With a Thermal Tech blanket insulation encased between duel walls, DuraTech offers superior safety and performance. It keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance. The inner wall is 25% thicker than competitive chimneys, for an extra margin of safety. Designed for normal, continuous operation at 1000?F flue gas temperatures, DuraTech is subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400?F, plus three ten minute chimney fire tests at 2100?F.
Specifications:
- Diameter: 7"
- Construction material: Aluminum
- Clearance: 2"
- Listings: Listed to the UL 103 height standard, UL file #MH7399. Listed to the Canadian S610 standard
