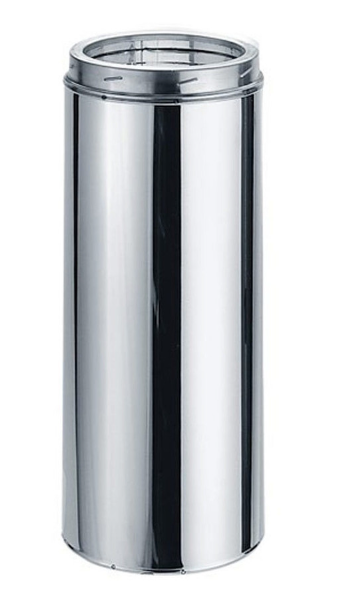

DuraTech chimney pipe is designed for appliances that are tested and listed for use with a 2100° F HT chimney system, such as woodstoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas. The DuraTech chimney System is designed to stay cool on the outside and provide a hot draft on the inside. A fire-safe design protects both the chimney and the building. To calculate installed length of 5", 6", 7", or 8" DuraTech Chimney, subtract 1 +" from each joint overlap of chimney pipe. DuraTech's Light-weight insulation and sleek 1" wall design, combined with twist-lock fittings, provides for easy installation. No locking bands or mechanical fasteners required.
All Fuel Chimney PDF
Product Note:Allow a 2" clearance to combustibles when installing a DuraTech Chimney.
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
Specifications:
- Diameter: 7"
- Construction material: Stainless steel
- Clearance: 2"
- Listings: Listed to the UL 103 height standard, UL file #MH7399. Listed to the Canadian S610 standard
