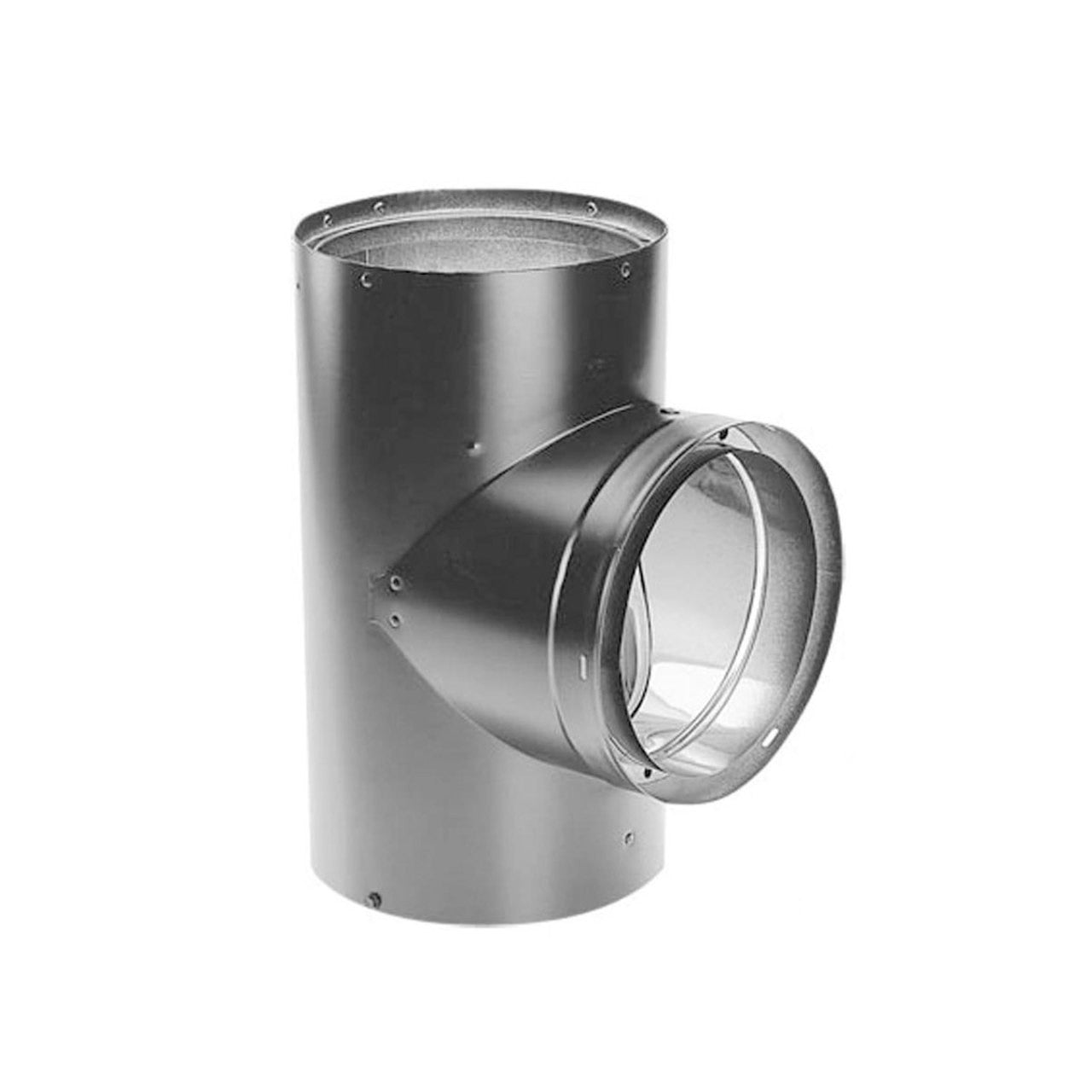

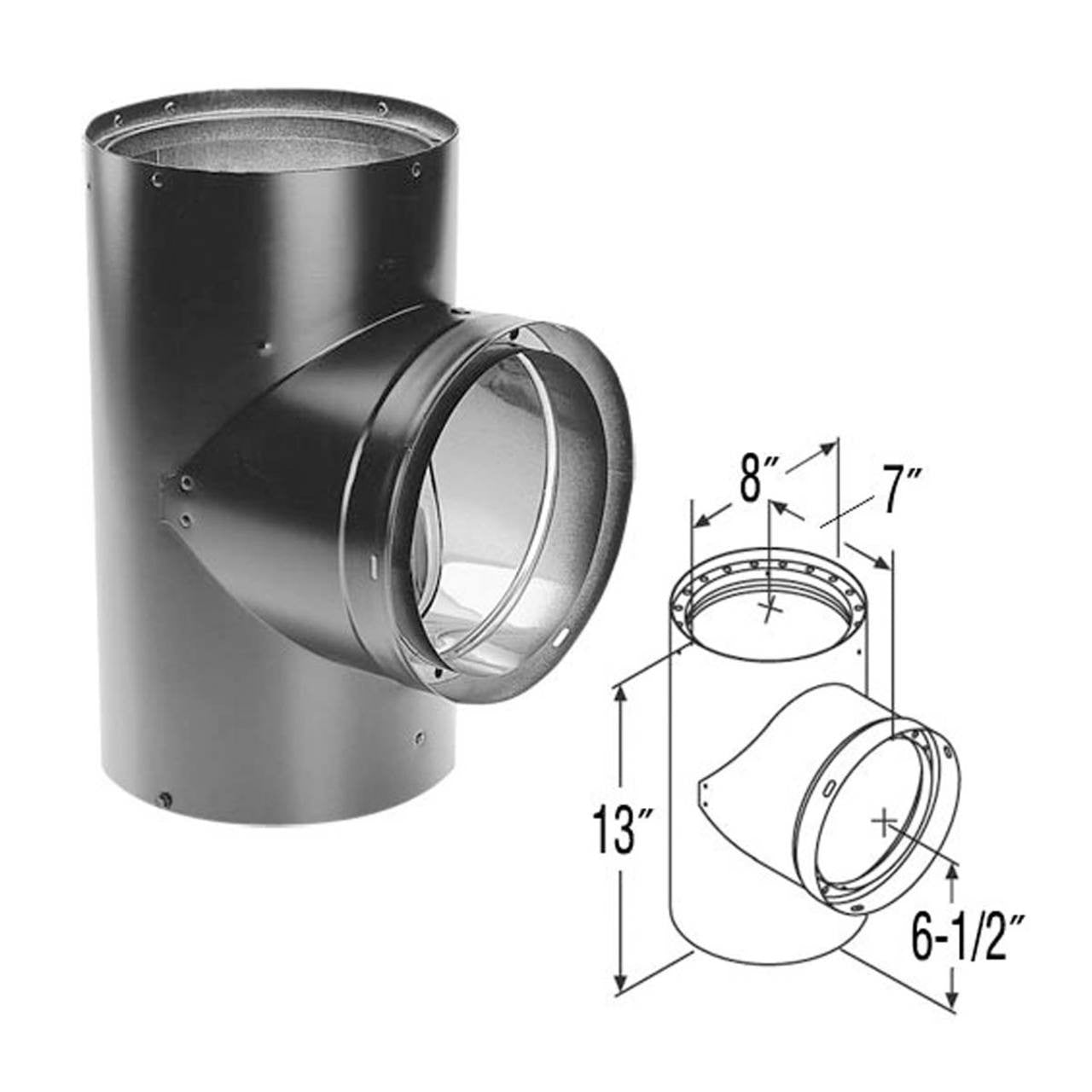

7" DVL Double-Wall Black Tee with Clean-Out Cap - 7DVL-T
The DVL Double-Wall Black Tee with Clean-out Cap is for use with rear exit appliances and appliances that require a barametric damper.
DuraVent DVL is a double-wall interior stovepipe for connecting woodstoves to a manufactured chimney.
Additional Information:
Simpson DVL's double air insulated design reduces clearances to combustibles from 18" to 6" to walls, and 8" to ceiling. The Simpson DVL system improves stove performance by maintaining high flue gas temperatures for a strong, steady draft. Because the inner wall is stainless steel, the flue heats up faster and stays hot longer, minimizing the formation of creosote.
The DVL system ensures safety and dependability with the same life expectancy as the chimney. Adjustable lengths eliminate the need for cutting and crimping, making installation fast and easy. Simpson DVL carries a limited lifetime warranty and is UL and ULC S641 listed. DVL is available in 6" - 8" sizes.
Specifications:
- Diameter: 7"
- Construction Material: .016" stainless steel inner with .018" galvanized outer
- Clearances: 6" clearance to wall, 8" clearance to ceilings, including cathedral ceilings
- Listings: c-UL-us listed to ULC S641 (MH14089)
- Subtract 1 1/4" for installed length
- Painted black
- For use with rear exit appliances and appliances that require a barametric damper
The DVL Double-Wall Black Tee with Clean-out Cap is for use with rear exit appliances and appliances that require a barametric damper. DuraVent DVL is a double-wall interior stovepipe for connecting woodstoves to a manufactured chimney. See all 7" DVL Chimney Components .
