Smokey Mountain Fireplaces

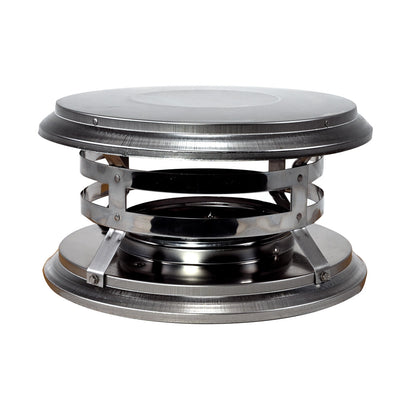

6'' DuraTech Chimney Cap - 6DT-VC

Regular price $132.00 USD
Regular price Sale price $132.00 USD
Sale Sold out
Shipping calculated at checkout.
Insider's Club: Join for free to see all promos
Shipping: Free Shipping (details)
Availability: Ships out within 1-3 days

Dura Tech Chimney Cap

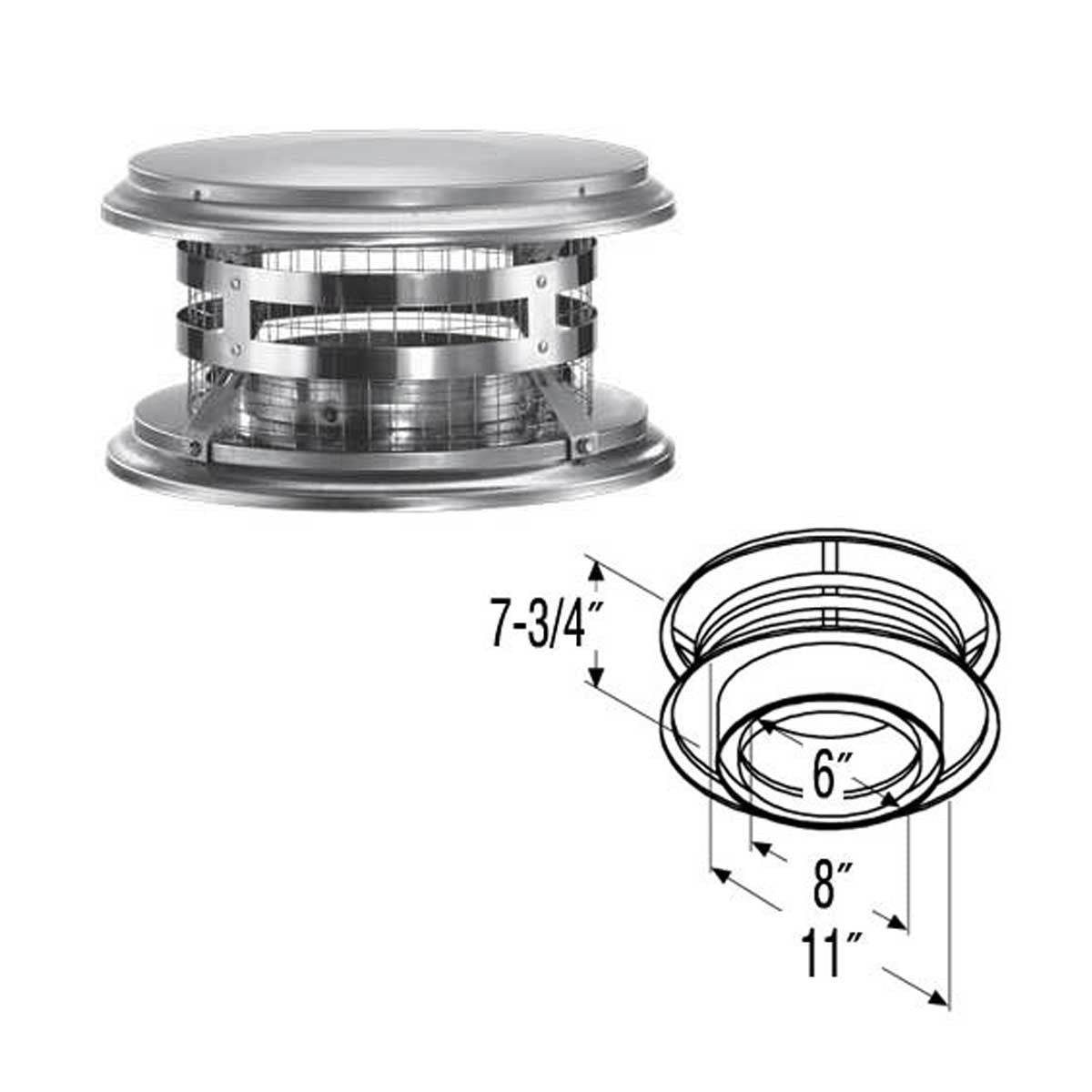

  • Diameter: 6"
  • Construction material: Stainless steel
  • Clearance: 2"
  • Listings: Listed to the UL 103 height standard, UL file #MH7399. Listed to the Canadian S610 standard

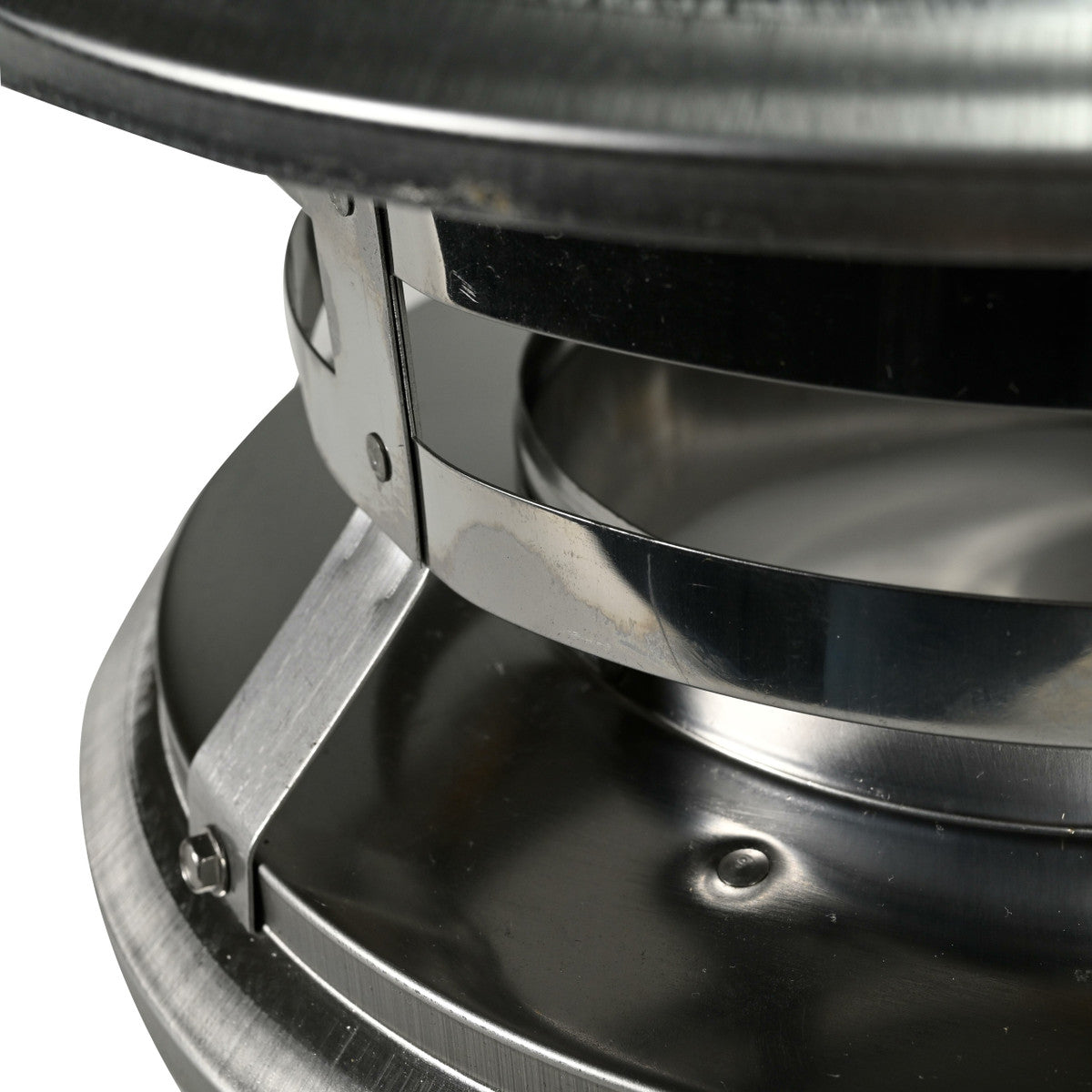

  • Removable screws provide for cleaning the spark arrestor screen (Spark Arrestor Screen NOT included)

6" DuraTech Chimney Cap - 6DT-VC

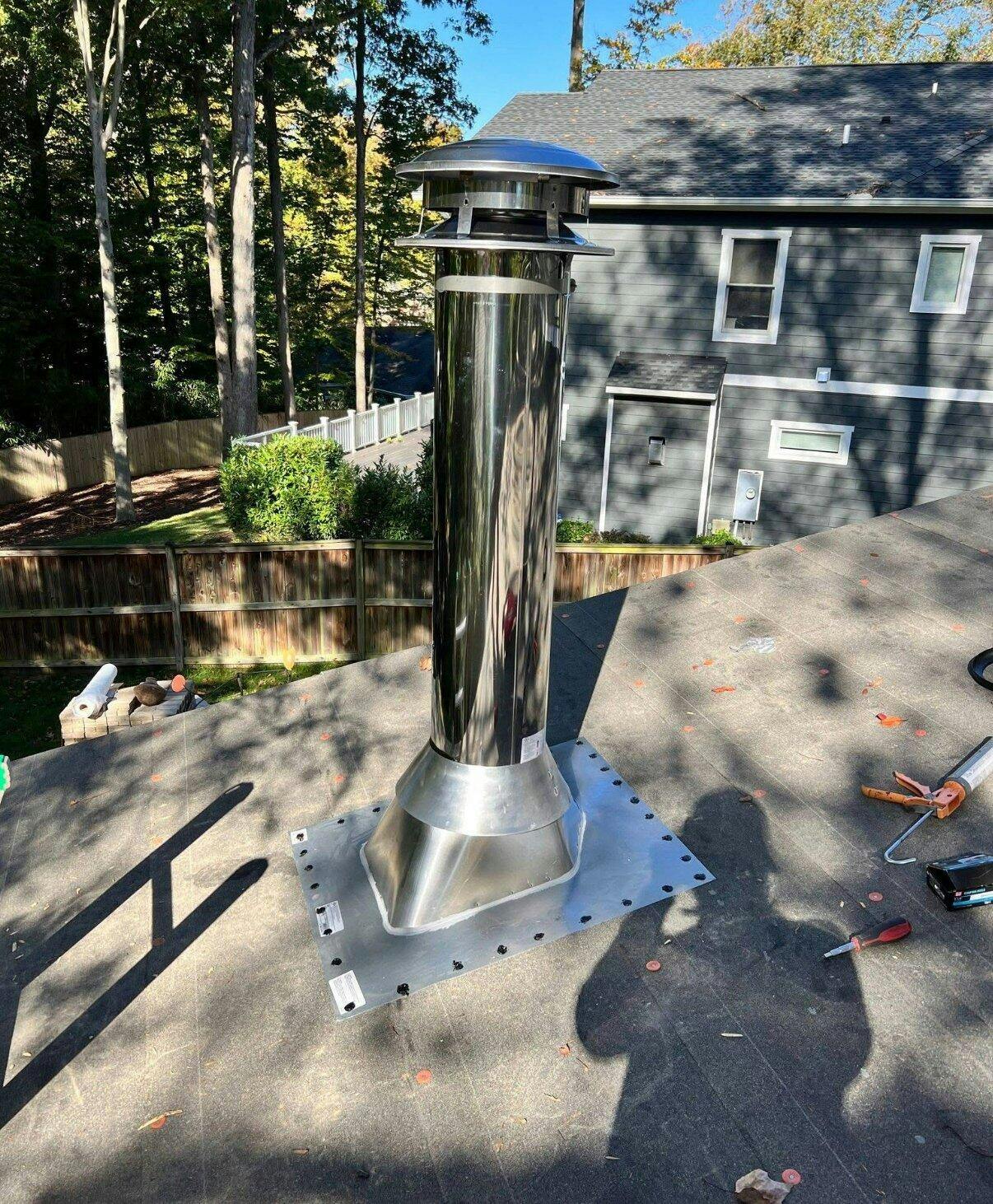

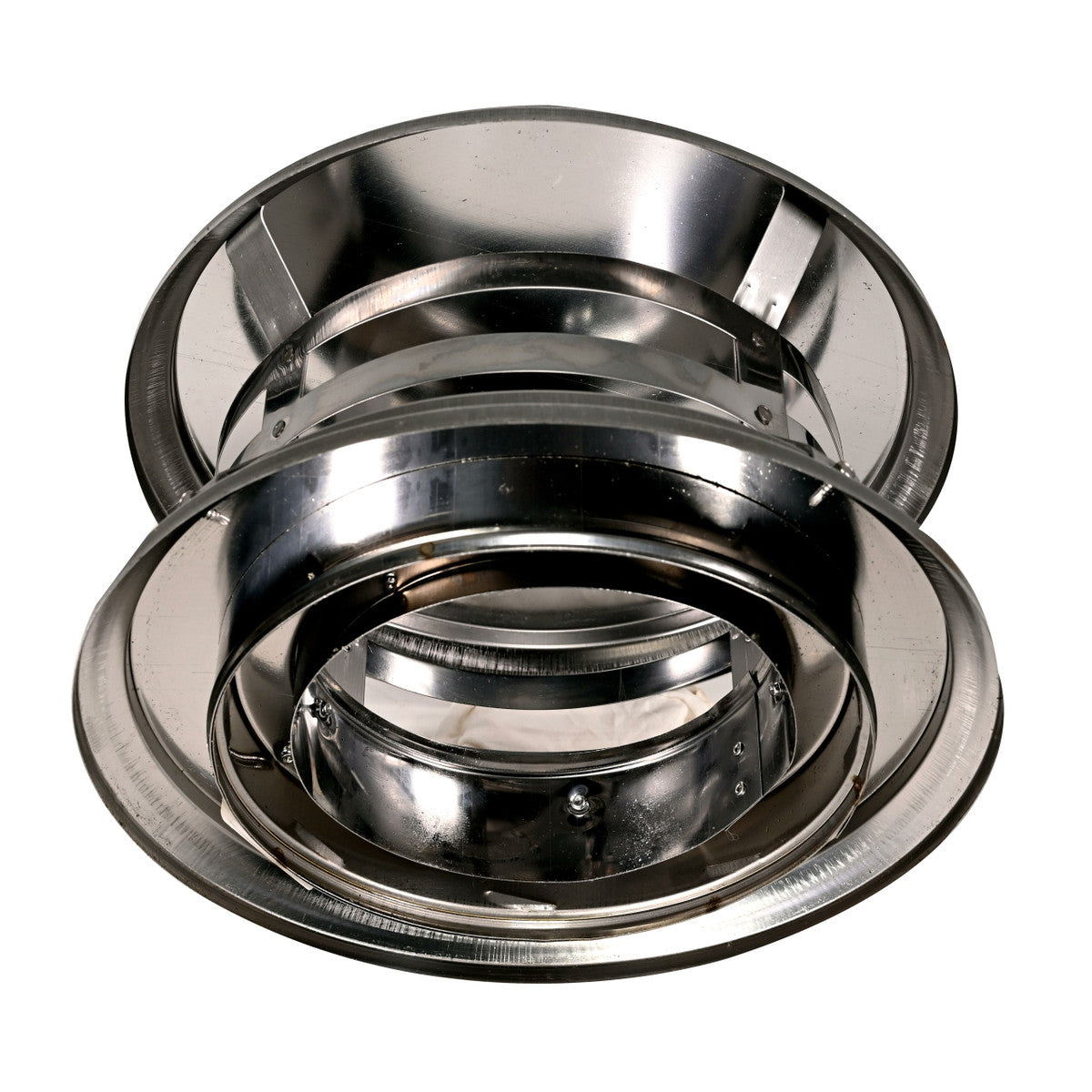

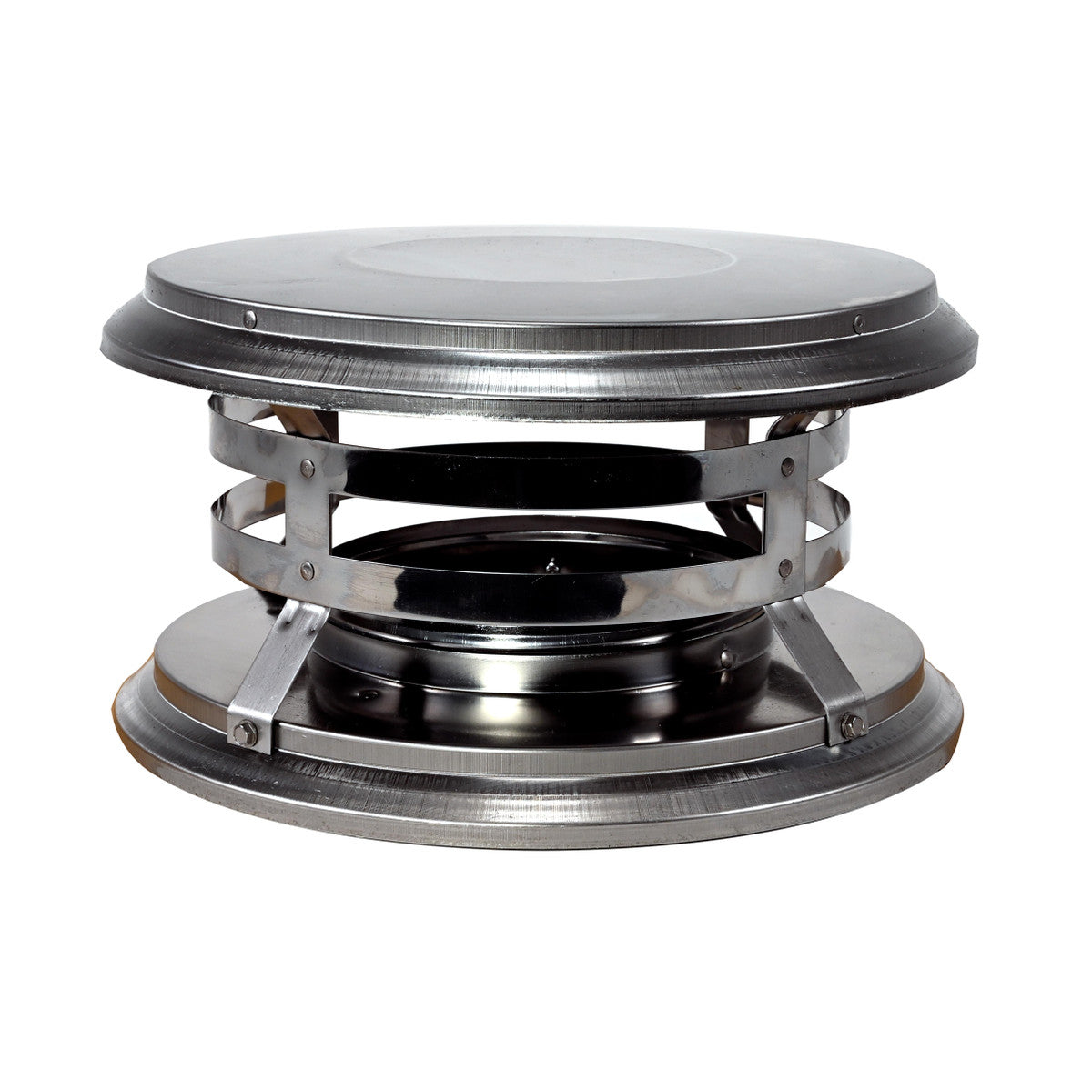

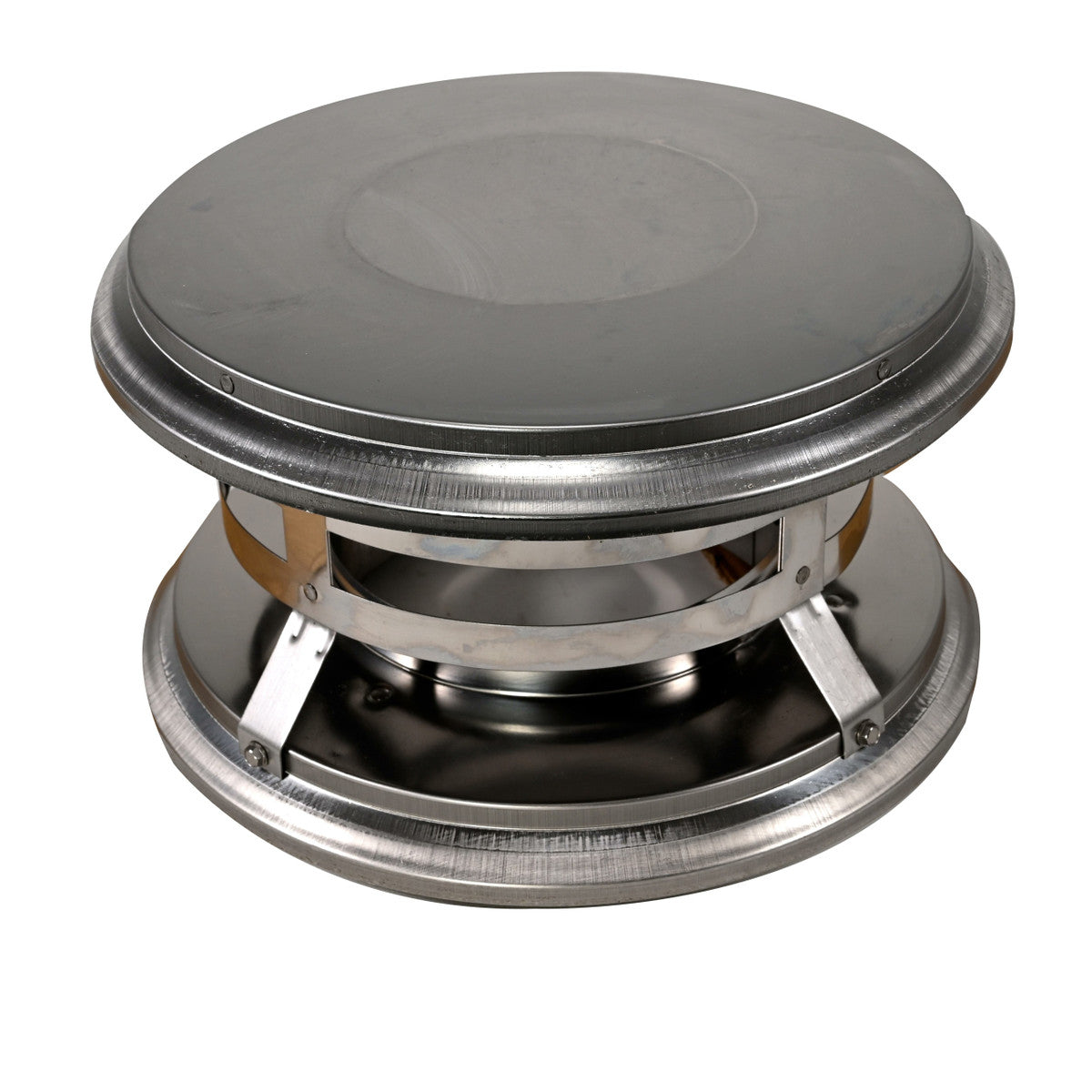

A chimney cap is required where the pipe terminates above the roof line. This DuraTech Chimney Cap is made of stainless steel and designed to twist-lock on to the chimney pipe. Removable screws allow for cleaning of the chimney and the spark arrestor screen. Shown with optional spark arrestor screen (sold separately). DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers.

A chimney cap is required where the pipe terminates above the roofline. This DuraTech Chimney Cap is made of stainless steel and designed to twist-lock on to the chimney pipe. Removable screws allow for cleaning of the chimney and the spark arrestor screen. Shown with optional spark arrestor screen (sold separately).

DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters or other appliances fueled by wood, oil, coal or gas, and zero-clearance fireplaces that are factory-built.

All stove and chimney pipe are classified and categorized by the inside diameter. If you aren't sure what size you need, measure the inside of your flue opening across inside to inside. If your measurement is 6" then you will purchase all 6" pipe for your installation.

See all 6" DuraTech Chimney Pipe.

Additional Information:

With a Thermal Tech blanket insulation encased between duel walls, DuraTech offers superior safety and performance. It keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance. The inner wall is 25% thicker than competitive chimneys for an extra margin of safety. Designed for normal, continuous operation at 1000° F flue gas temperatures, DuraTech is subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400° F, plus three ten minute chimney fire tests at 2100° F.

Check out our whole selection of Chimney Caps.

Specifications:

  • Diameter: 6"
  • Construction material: Stainless steel
  • Clearance: 2"
  • Listings: Listed to the UL 103 height standard, UL file #MH7399. Listed to the Canadian S610 standard
  • Removable screws provide for cleaning the spark arrestor screen (Spark Arrestor Screen NOT included)

How it works:

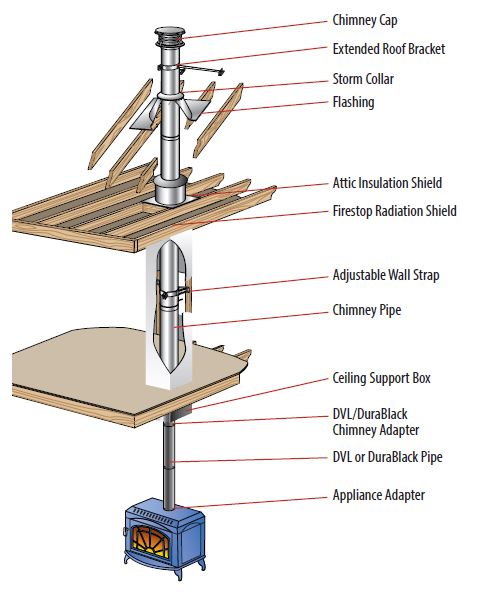

The chimney system allows your stove or fireplace to exhaust flue gases while a draft creates the draw that pulls fresh combustion air into the stove. A well-balanced system provides an even, hot fire when it has good draft. The draft suction keeps smoke from coming into the room. Insulation in the chimney pipe is important because it helps keep the exhaust hot until it is expelled outside. Heat in the chimney makes draft, which pulls in more combustion air. This creates a hotter fire, delivering more heat to the chimney, resulting in more draft. The size of the flue is important for the system to work efficiently. The appliance manufacturers installation instructions will indicate how to size the flue to match the stoves flue collar. Stovepipe connects to the stove. It is the usually black interior pipe that transitions from the stove to the chimney pipe with an adapter. It is not insulated and cannot penetrate ceilings or walls. Chimney pipe is an insulated pipe that is rated to pass through walls and ceilings. In addition to the chimney pipe, supports to hold the system in place, and shields to protect areas from combusting, are needed for the system. The flashing, storm collar and chimney cap are required to seal the system from moisture penetration.


Specifications:

  • Diameter: 6"
  • Construction material: Stainless steel
  • Clearance: 2"
  • Listings: Listed to the UL 103 height standard, UL file #MH7399. Listed to the Canadian S610 standard
  • Removable screws provide for cleaning the spark arrestor screen (Spark Arestor Screen NOT included)
